Specification
Brand : OMAX
BulletPoint1 : Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring,oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece
BulletPoint2 : Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring,oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece
BulletPoint3 : Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring,oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece
BulletPoint4 : A lever to switch between beam spilt for photo part and 100% to eyepieces when camera is not in use; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm), translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying
BulletPoint5 : Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper for protecting objective and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment; Dry darkfield condenser: NA0.7-0.9; All metal mechanical components; Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller)
BulletPoint6 : Digital camera: - true color 1280x1024 pixels (1.3MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : 5-year warranty against manufacturing defects
Color : Multicolor
CompatibleDevices : Personal Computer
ExternallyAssignedProductIdentifier1 : 670541473672
ExternallyAssignedProductIdentifier2 : 0670541473672
Hazmat : 9
ItemName : OMAX 1600X Darkfield Compound Siedentopf Plan Microscope+1.3MP Cam
ItemPackageDimensions_Height : 58 centimeters
ItemPackageDimensions_Length : 51 centimeters
ItemPackageDimensions_Width : 37 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 1600 multiplier_x
Manufacturer : OMAX
Material : vinyl
ModelNumber : M834PLAN-A191-C10
NumberOfItems : 1
PartNumber : M834PLAN-A191-C10
PowerSourceType : Corded Electric

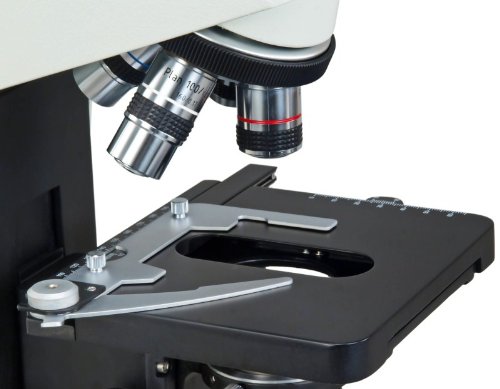

ProductDescription : The advanced trinocular Siedentopf compound microscope provides darkfield & brightfield microscope system and 1.3MP USB digital imaging system. The darkfield biological PLAN microscope comes with trinocular viewing head, body frame, quintuple reversed nosepiece, four PLAN objectives, large double layer mechanical stage with slide clips, variable intensity halogen transmitted illumination system, darkfiled NA0.7-0.9 & brightfield Abbe NA1.25 condensers. It offers eight level magnifications from 40X to 1600X. The 1280x1024 pixels (1.3MP) USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. This top level lab microscopy is designed for research laboratories and advanced applications in clinical offices.
ProductSiteLaunchDate : 2013-09-26T17:46:13.683Z
RealAngleOfView : 30 degrees
UnspscCode : 41111700
