Specification
Brand : OMAX
BulletPoint1 : Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring,oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece
BulletPoint2 : Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring,oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece
BulletPoint3 : Total magnifications: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and P16X; Objectives: PLAN achromatic 4X (0.10), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring,oil); Viewing head: trinocular Siedentopf 30 degrees inclined 360 degreesrotatable; Interpupillary: adjustment 2-3/16inch ~ 2-15/16inch ( 55mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: reversed revolving quadruple nosepiece
BulletPoint4 : A lever to switch between beam spilt for photo part and 100% to eyepieces when camera is not in use; Stage: double layer X-Y mechanical stage with scales, size 5-1/2inch x 4-1/4inch (140mm x 110mm), translation range 3inch x 2inch (78mm x 52mm); A specially designed back slot on the microscope stand for easy hand holding and carrying
BulletPoint5 : Illumination: transmitted, 6V/20W halogen lamp, variable intensity; Focus: coaxial coarse and fine focus knobs on both side with tension control; Stage upward stopper for protecting objective and slides; Condenser: Abbe condenser NA1.25 with iris diaphragm and filter holder, rack and pinion adjustment; All metal mechanical components; Power supply: 110-115V, 50/60Hz (US and Canada) (220V version available, contact seller)
BulletPoint6 : Digital camera: - true color 2048 x 1536 pixels (3.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 670541466964
ExternallyAssignedProductIdentifier2 : 0670541466964
Hazmat : 9

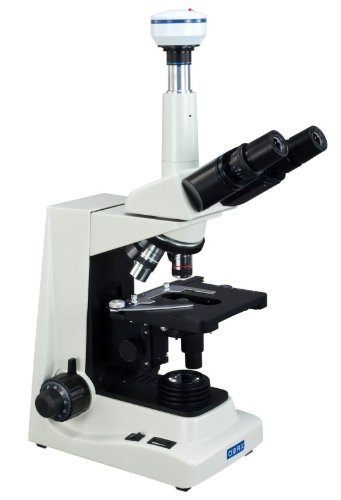

ItemName : OMAX 40X-1600X Advanced Digital Plan Lab Trinocular Compound Microscope with 3.0MP USB Camera and Reversed Nosepiece
ItemPackageDimensions_Height : 55 centimeters
ItemPackageDimensions_Length : 69 centimeters
ItemPackageDimensions_Width : 26 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 1600 multiplier_x
Manufacturer : OMAX
ModelNumber : M834PLAN-C30
PartNumber : M834PLAN-C30
ProductDescription : The advanced trinocular Siedentopf compound microscope provides a 3.0MP USB digital imaging system. The digital biological PLAN microscope comes with trinocular viewing head, body frame, quintuple reversed nosepiece, four PLAN objectives, large double layer mechanical stage with slide clips, variable intensity halogen transmitted illumination system. It offers eight level magnifications from 40X to 1600X. The 2048x1536 pixels (3.0MP) USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows XP/Vista/7/8/10 can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. You can add advanced accessories including darkfield condenser and phase contrast kit to upgrade your microscope. This top level lab microscopy is designed for research laboratories and advanced applications in clinical offices.
ProductSiteLaunchDate : 2012-10-24T19:17:44.599Z
RealAngleOfView : 30 degrees
UnspscCode : 41111700
