Specification
Brand : OMAX
BulletPoint1 : Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
BulletPoint2 : Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
BulletPoint3 : Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm)
BulletPoint4 : Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control
BulletPoint5 : Focusing knob can be locked for observation and transportation; Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity
BulletPoint6 : Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
BulletPoint7 : 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 670541472255
ExternallyAssignedProductIdentifier2 : 0670541472255
Hazmat : 9

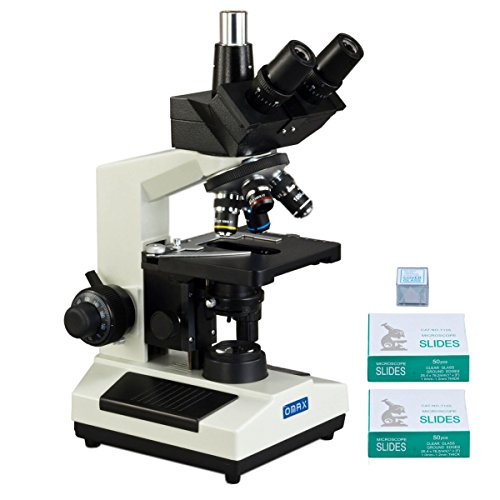

ItemName : OMAX 40X-1600X Compound Trinocular LED Microscope with Blank Slides & Covers
ItemPackageDimensions_Height : 55 centimeters
ItemPackageDimensions_Length : 51 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 1600 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelNumber : M837TL-SC100
NumberOfItems : 1
PartNumber : M837TL-SC100
PowerSourceType : Corded Electric
ProductDescription : This is a trinocular compound LED microscope with the power range from 40X to 1600X. The compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The compound microscopy includes a 45 degree inclined 360 degree swiveling trinocular head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces WF10X/18 and WF16X, four DIN achromatic objectives: 4X, 10X, 40X (spring), 100X (spring,oil), large double layer mechanical stage, Abbe NA1.25 condenser with iris diaphragm and a LED illumination system. The LED lamp can be replaced by yourself. The trinocular port is easy to mount photo or video capability. You can add advanced accessories including darkfield condenser and phase contrast kit to upgrade your microscope. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
ProductSiteLaunchDate : 2018-03-29T08:16:21.911Z
RealAngleOfView : 45 degrees
UnspscCode : 41111700
Voltage : 240 volts
