Specification
Brand : OMAX
BulletPoint1 : Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple
BulletPoint2 : Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple
BulletPoint3 : Total magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X; Eyepieces: widefield WF10X/18 and WF16X; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple
BulletPoint4 : Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control; Focusing knob can be locked for observation and transportation
BulletPoint5 : Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
BulletPoint6 : Digital camera: - true color 2592x1944 pixels (5.0M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 670541472316
ExternallyAssignedProductIdentifier2 : 0670541472316
Hazmat : 9

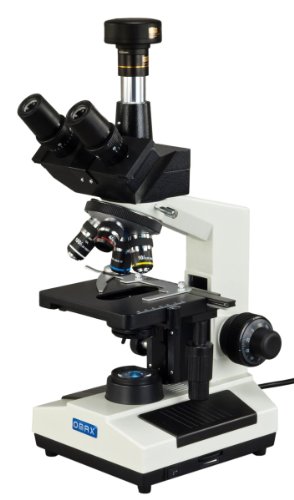

ItemName : OMAX 40X-1600X Trinocular Compound Replaceable LED Microscope with 5MP Digital Camera
ItemPackageDimensions_Height : 49 centimeters
ItemPackageDimensions_Length : 60 centimeters
ItemPackageDimensions_Width : 38 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 1600 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelNumber : M837TL-C50U
NumberOfItems : 1
PartNumber : M837TL-C50U
PowerSourceType : Corded Electric
ProductDescription : The advanced trinocular compound LED microscope 40X to 1600X provides a LED illumination system and a 5MP USB digital imaging system. The digital biological microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The 2592x1944 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. The LED lamp can be replaced by yourself. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
ProductSiteLaunchDate : 2013-09-26T17:48:16.180Z
RealAngleOfView : 45 degrees
UnspscCode : 41111700
Voltage : 240 volts
