Specification
Brand : OMAX
BulletPoint1 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
BulletPoint2 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
BulletPoint3 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); PLAN phase contrast objectives (in phase contrast kit): PH10X, PH20X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
BulletPoint4 : Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control
BulletPoint5 : Focusing knob can be locked for observation and transportation; Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast kit: - Substage phase contrast condenser disk with five switchable positions: - One bright field NA1.25 with iris diaphragm Abbe condenser - Four phase contrast condensers: 10X, 20X, 40X, 100X - Each phase contrast condenser can be centered individually
BulletPoint6 : Four plan PH objectives: 10X, 20X, 40X (S), 100X (S, Oil) - 37mm mounting size in diameter - Centering telescope: 23.2mm; Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
BulletPoint7 : Digital camera: - true color 4912x3684 pixels (18M pixels) - Super speed USB 3.0 connection - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5.6fps at 4912x3684, 18.1fps at 2456x1842, 32.2fps at 1228x922 - Software compatible with Windows, Mac OS X and Linux operating systems - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB3 cable included
ExternallyAssignedProductIdentifier1 : 670541484883
ExternallyAssignedProductIdentifier2 : 0670541484883
ExternallyAssignedProductIdentifier3 : 0670541488164
ExternallyAssignedProductIdentifier4 : 0670541484791
Hazmat : 9

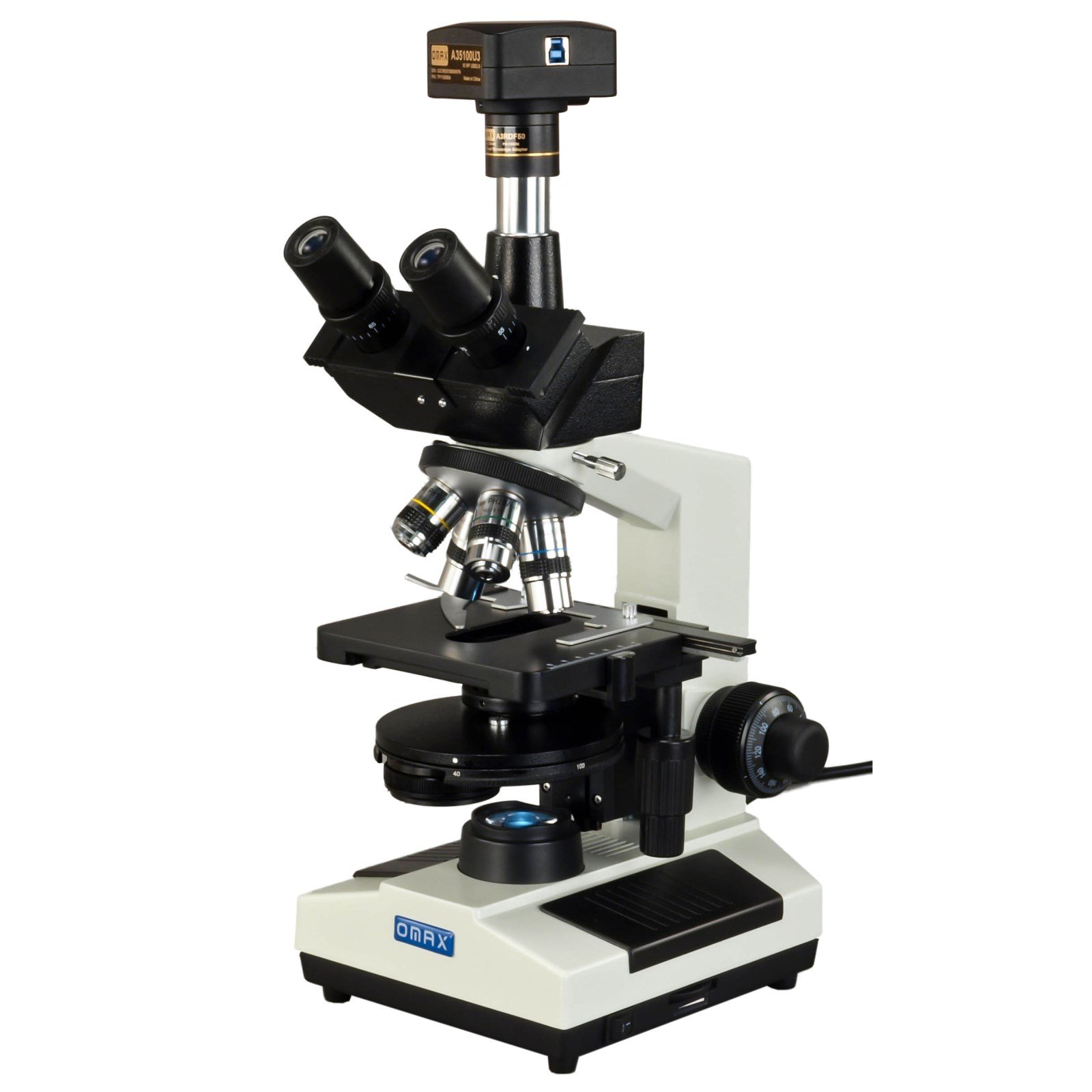

ItemName : OMAX 40X-2000X 18MP USB3 Plan Phase Contrast Trinocular LED Lab Microscope with Turret Phase Disk
ItemPackageDimensions_Height : 53 centimeters
ItemPackageDimensions_Length : 54 centimeters
ItemPackageDimensions_Width : 26 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 2000 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelNumber : M837SL-PHB1-C180U3
NumberOfItems : 1
PartNumber : M837SL-PHB1-C180U3
PowerSourceType : Corded Electric
ProductDescription : This professional trinocular compound microscope provides phase contrast/brightfield microscope system and a super speed 18MP USB 3.0 digital imaging system. The compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, a complete set of phase contrast kit and 18MP USB 3.0 camera. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-400X-800X-1000X-2000X. The 4912x3684 pixels USB 3.0 digital imaging system that captures still microscope images and live video on computer. The included software is compatible with Windows, Mac OS X and Linux operating systems (see version information below). The Windows software can also be used to make measurements. This phase contrast compound microscope is widely used clinical, biological research and schools, specially for observing live cells.
ProductSiteLaunchDate : 2016-02-12T19:55:47.735Z
RealAngleOfView : 45 degrees
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41111700
Voltage : 5 volts
