Specification
Brand : OMAX
BulletPoint1 : Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x; Eyepieces: wide field WF10X/20 and WF20X; Objective: infinity-corrected plan field achromatic DIN 4x, 10x, 40x(Spring, WD 2.8mm), 100x(Spring, Dry, WD 0.7mm); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf head; Nosepiece: revolving quadruple
BulletPoint2 : Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x; Eyepieces: wide field WF10X/20 and WF20X; Objective: infinity-corrected plan field achromatic DIN 4x, 10x, 40x(Spring, WD 2.8mm), 100x(Spring, Dry, WD 0.7mm); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf head; Nosepiece: revolving quadruple
BulletPoint3 : Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x; Eyepieces: wide field WF10X/20 and WF20X; Objective: infinity-corrected plan field achromatic DIN 4x, 10x, 40x(Spring, WD 2.8mm), 100x(Spring, Dry, WD 0.7mm); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf head; Nosepiece: revolving quadruple
BulletPoint4 : Illumination system: 6V/30W halogen bulb, position adjustable, intensity adjustable, with built-in condenser, iris aperture diaphragm, iris field diaphragm, 2 color filter slots and polarizer/analyzer slots; Condenser: built-in, spiral adjustment; Stage: double-layer mechanical stage with clips, size: 15cm - 14cm, translation range 50mm x 75mm
BulletPoint5 : Focus mechanism: Coaxial coarse and fine knobs on both sides with adjustable tension control and stop lever; Power supply: 110V 50Hz/60Hz (US and Canada)

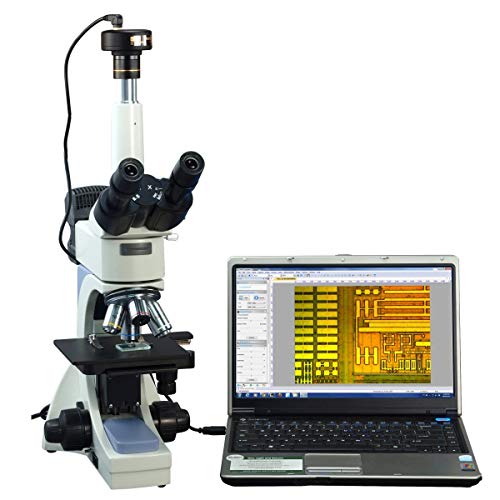

BulletPoint6 : Digital camera: - true color 3488x2616 pixels (9M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame rate: 1.9fps at 3488x2616, 8fps at 1744x1308, 27fps at 872x654 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 670541478363
ExternallyAssignedProductIdentifier2 : 0670541478363

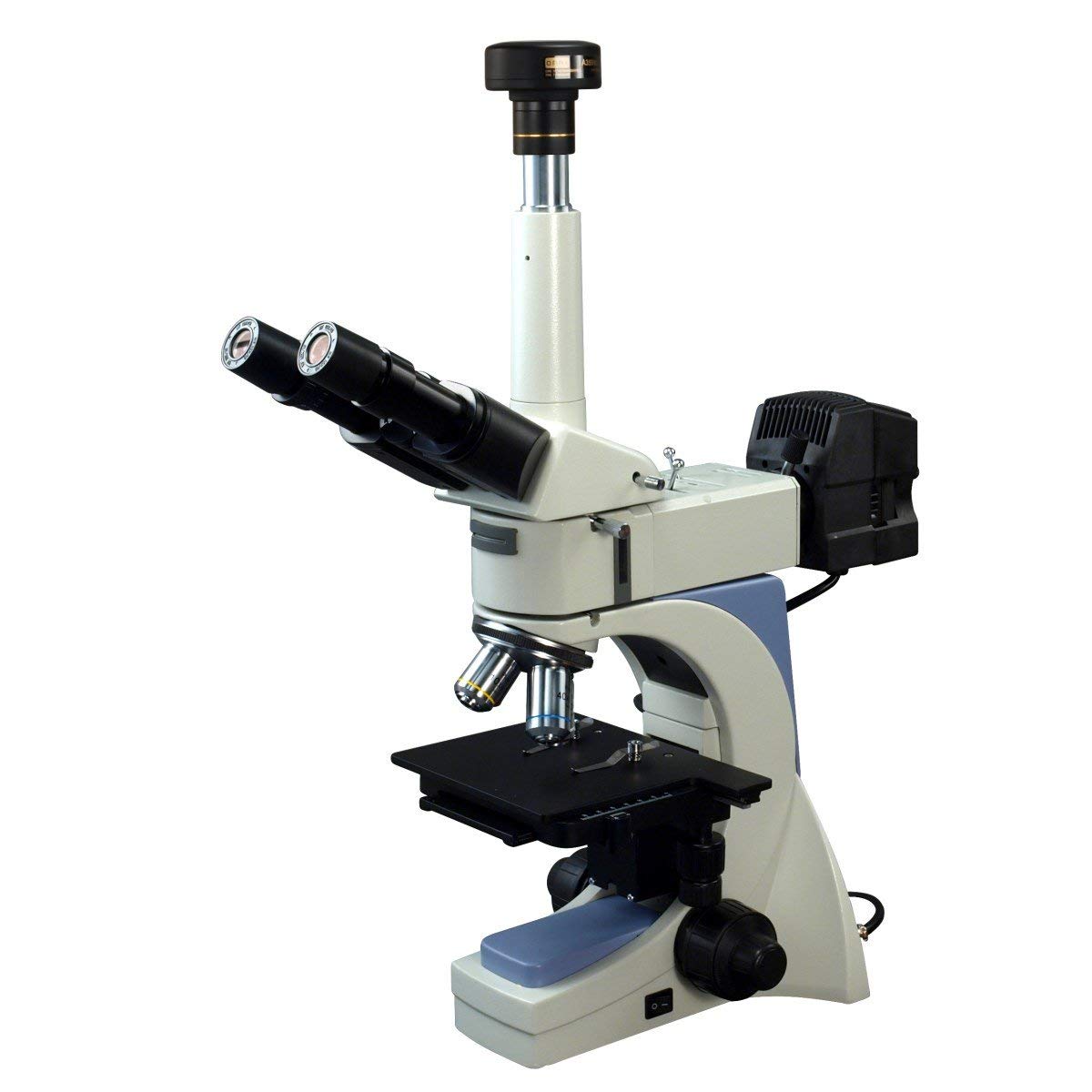

ItemName : OMAX 40X-2000X Infinity Trinocular Polarizing Metallurgical Microscope with 9MP Camera
ItemPackageDimensions_Height : 55 centimeters
ItemPackageDimensions_Length : 55 centimeters
ItemPackageDimensions_Width : 35 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 2000 multiplier_x
Manufacturer : OMAX
ModelNumber : M83MP-C90U
PartNumber : M83MP-C90U
PowerSourceType : Corded Electric
ProductDescription : This metallurgical microscope can be widely used for metallurgical, mineral and crystal identification, electronic integrated circuit examination and research. The microscope features attachable polarizing plates and infinity-corrected plan field achromatic objectives and includes a 9MP USB digital microscope camera. The 100X objective is dry (immersion oil free) and has a longer working distance to create a contact free inspection during use. The microscope uses an EPI illumination system to reflect light off of the specimen through the objectives, allowing for observation of opaque specimens. The long working distance of the 40X (2.8mm) and 100X (0.7mm) objectives makes it possible to inspect rough surfaces. The digital camera captures still microscope images, streams live video preview to your computer, and is compatible with Windows XP/Vista/7/8/10, Mac OS X, and Linux (2.6 and later). The 0.5X reduction lens included gives your computer screen a wider field of view. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. As with all of our microscopes, this microscope comes with a 5 year manufacturer warranty.
ProductSiteLaunchDate : 2015-03-06T19:54:53.268Z
RealAngleOfView : 30 degrees
UnspscCode : 41111700
Voltage : 110 volts
