Specification
Brand : OMAX
BulletPoint1 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
BulletPoint2 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
BulletPoint3 : Total magnification for brightfield: 40X-80X-100X-200X-400X-800X-1000X-2000X; Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X; Eyepieces: widefield WF10X/18 and WF20X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Phase contrast objectives (in phase contrast kit): achromatic PH10X, PH40X (S), PH100X (S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
BulletPoint4 : Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control
BulletPoint5 : Focusing knob can be locked for observation and transportation; Condenser and diaphragm: Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm; Phase contrast kit: - NA1.25 condenser - Three separated condenser annular plates: 10X, 40X, 100X - Three phase contrast objectives: 10X, 40X, 100X - Each phase contrast condenser can be centered individually - 37mm mounting size in diameter - Centering telescope: 23.2mm
BulletPoint6 : Digital camera: - true color 2048x1536 pixels (3.2M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 8fps at 2048x1536, 22fps at 1024x768, 43fps at 680x510 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug); 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 670541472873
ExternallyAssignedProductIdentifier2 : 0670541472873
ExternallyAssignedProductIdentifier3 : 0670541503119
ExternallyAssignedProductIdentifier4 : 0670541472842
Hazmat : 9

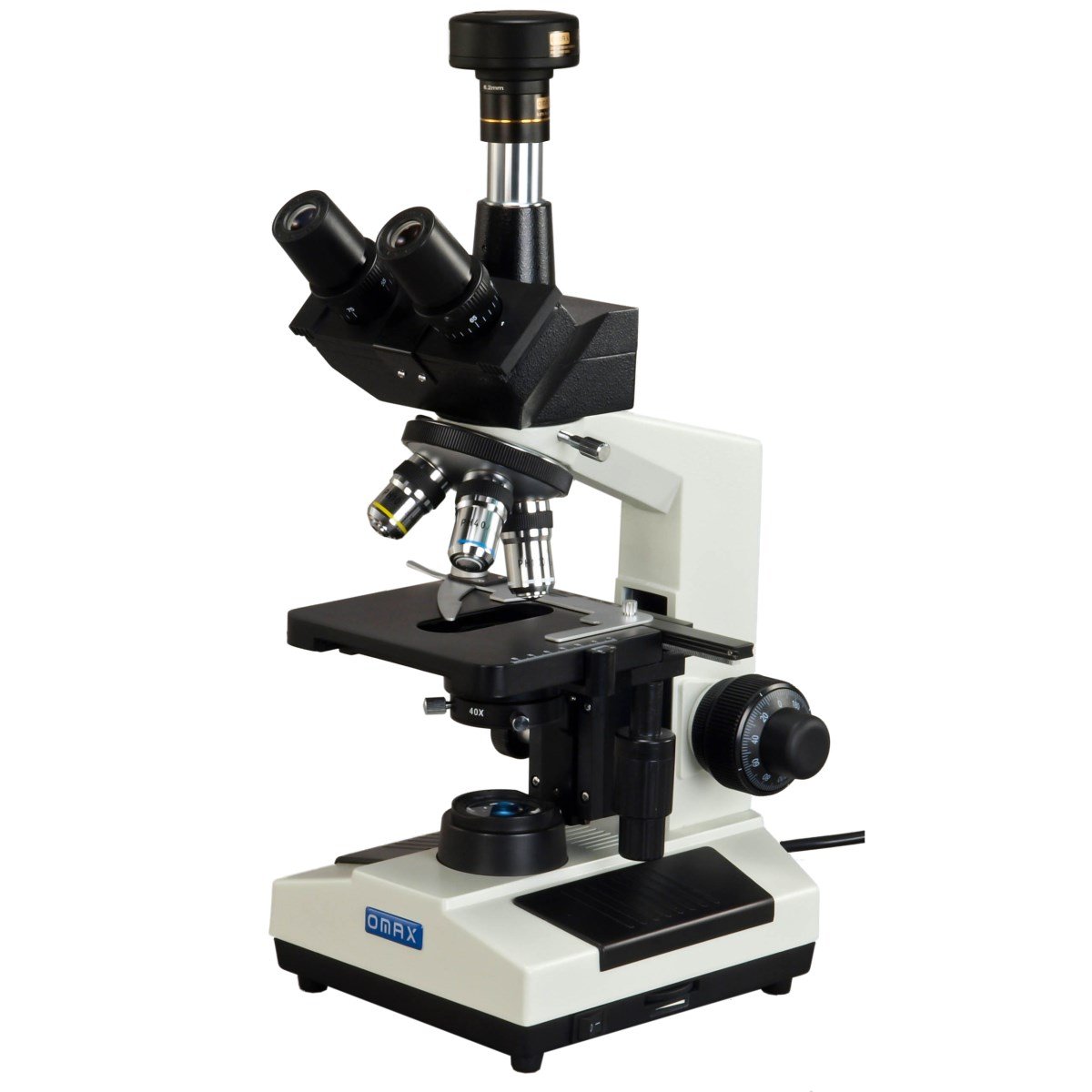

ItemName : OMAX 40X-2000X Phase Contrast Trinocular Compound LED Microscope + 3MP Camera
ItemPackageDimensions_Height : 49 centimeters
ItemPackageDimensions_Length : 73 centimeters
ItemPackageDimensions_Width : 32 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 2000 multiplier_x
Manufacturer : OMAX
Material : Aluminum
ModelNumber : M837SL-PHD-C30U
NumberOfItems : 1
PartNumber : M837SL-PHD-C30U
PowerSourceType : Corded Electric

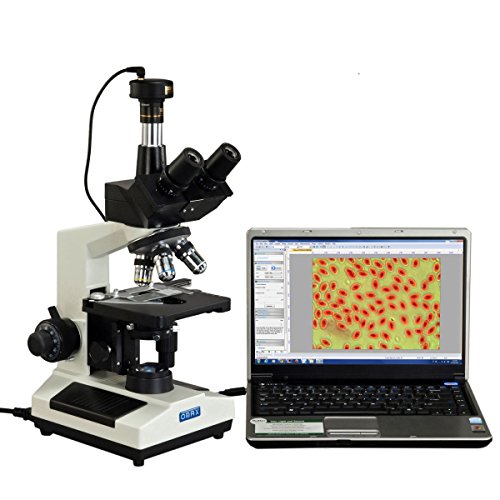

ProductDescription : The trinocular compound microscope provides phase contrast microscope system & brightfield microscope system and USB imaging digital system. The laboratory microscope comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, 3MP USB camera and a complete set of phase contrast kit. The compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It offers eight levels of brightfield magnification from 40X to 2000X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope. The 2048x1536 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
ProductSiteLaunchDate : 2014-09-22T14:45:32.254Z
RealAngleOfView : 45 degrees
UnspscCode : 41111700
Voltage : 240 volts
