Specification
Brand : OMAX
BulletPoint1 : Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed
BulletPoint2 : Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed
BulletPoint3 : Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X; Eyepieces: wide field WF10X/18 and WF20X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed
BulletPoint4 : Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Solid metal base and stand; Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable
BulletPoint5 : Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment; Extra NA: 0.7-0.9 dry darkfield condenser; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
BulletPoint6 : Digital camera: - true color 1280x1024 pixels (1.3MP) - 0.37X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 15fps at 1280x1024, 26fps at 640x512, 50fps at 320x256 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : 5-year warranty against manufacturing defects
ExternallyAssignedProductIdentifier1 : 670541475164
ExternallyAssignedProductIdentifier2 : 0670541475164
ExternallyAssignedProductIdentifier3 : 0670541503171
ExternallyAssignedProductIdentifier4 : 0670541472897
Hazmat : 9
ItemName : OMAX 40X-2000X Trinocular Compound Siedentopf LED Microscope+Dry Darkfield Condenser+1.3MP Camera
ItemPackageDimensions_Height : 41 centimeters
ItemPackageDimensions_Length : 65 centimeters
ItemPackageDimensions_Width : 26 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 2000 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelNumber : M8311-A191-C13U
NumberOfItems : 1
PartNumber : M8311-A191-C13U
PowerSourceType : Corded Electric

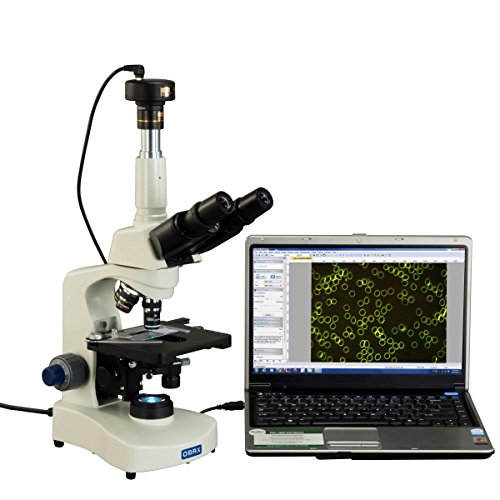

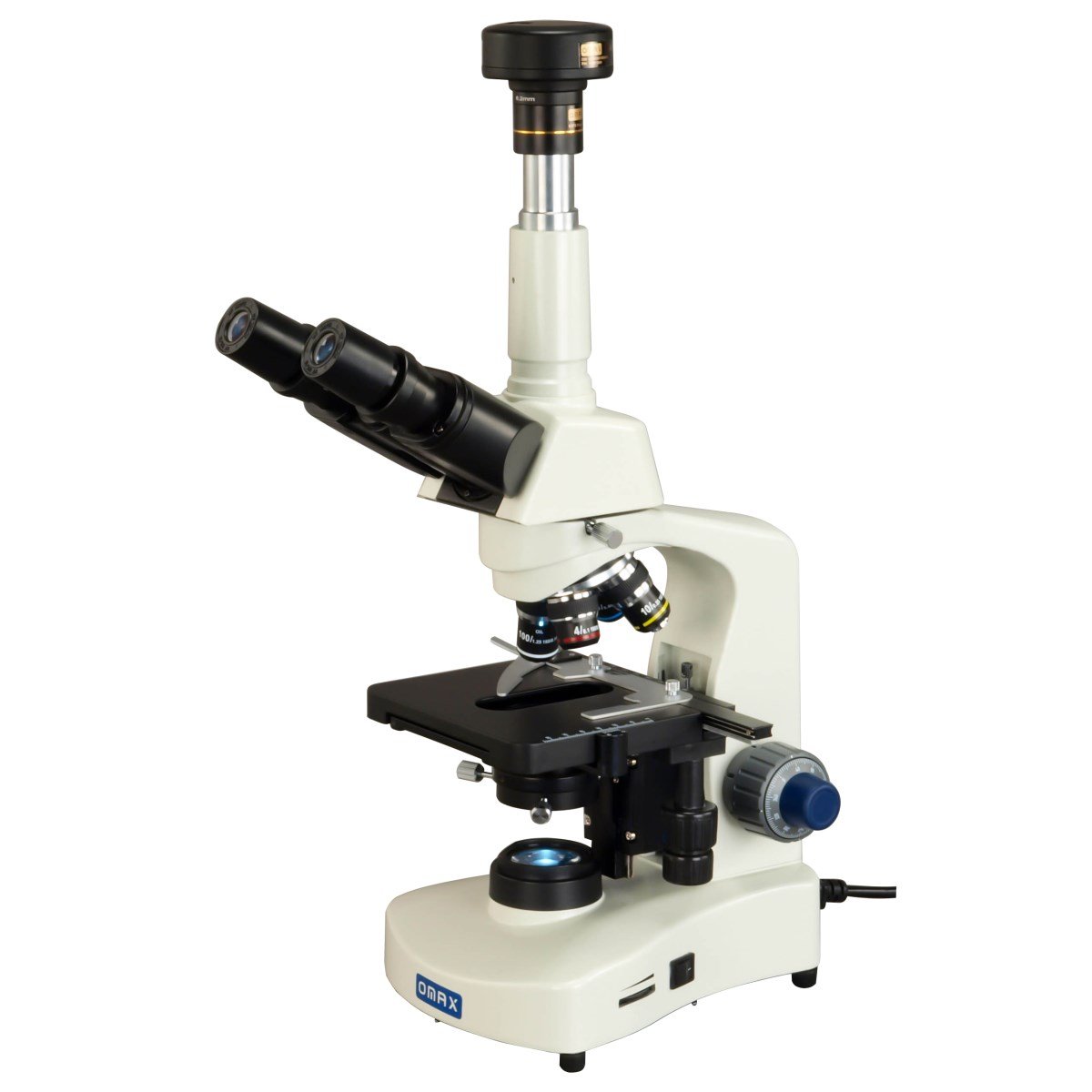

ProductDescription : The trinocular compound LED microscope 40X-2000X provides darkfield & brightfield microscope system and 1.3MP USB digital imaging system. The darkfield microscope comes with trinocular head, body frame, reversed nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage, 3W LED bright variable illumination, USB camera and darkfield NA0.7-0.9 & brightfield Abbe NA1.25 condensers.It has the par-focal (also called simul-focal) function which means the image is focused through both eyepieces and the photo tube and no view switching is needed.The 1280x1024 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular compound microscopy is ideal for professionals and also affordable for students.
ProductSiteLaunchDate : 2014-09-22T14:52:20.875Z
RealAngleOfView : 30 degrees
UnspscCode : 41111700
Voltage : 240 volts
