Specification
Brand : OMAX
BulletPoint1 : Total magnification: 40X-100X-250X-400X-1000X-2500X: Eyepieces: wide field WF10X/18 and WF25X: Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil): Head: 30 degrees inclined; 360 degrees rotatable trinocular Siedentopf Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm): Diopter: adjustable on left eyepiece tube: Nosepiece: revolving, quadruple, reversed
BulletPoint2 : Total magnification: 40X-100X-250X-400X-1000X-2500X: Eyepieces: wide field WF10X/18 and WF25X: Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil): Head: 30 degrees inclined; 360 degrees rotatable trinocular Siedentopf Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm): Diopter: adjustable on left eyepiece tube: Nosepiece: revolving, quadruple, reversed
BulletPoint3 : Total magnification: 40X-100X-250X-400X-1000X-2500X: Eyepieces: wide field WF10X/18 and WF25X: Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil): Head: 30 degrees inclined; 360 degrees rotatable trinocular Siedentopf Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm): Diopter: adjustable on left eyepiece tube: Nosepiece: revolving, quadruple, reversed
BulletPoint4 : Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm: Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop: Illumination: transmitted replaceable 3W LED light, intensity adjustable
BulletPoint5 : Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment: Oil darkfield condenser: NA1.36-1.25 condenser plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm: Solid metal base and stand: Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)

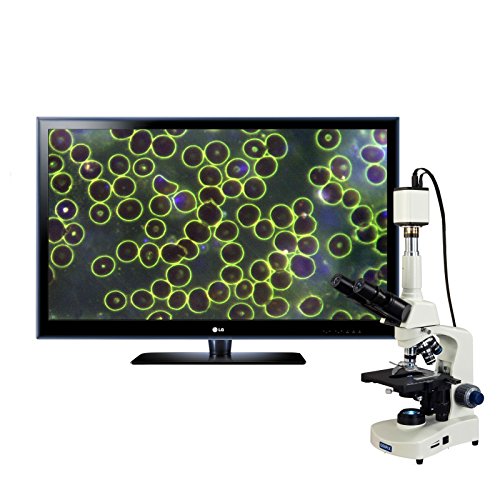

BulletPoint6 : HDMI camera: - Image sensor: Aptina MT9P031 CMOS - Still Capture Resolution: 2592 x 1944 - Video Capture Resolution: 1920 x 1080 - Video frame rate: 15fps SD card, 15fps USB, 15fps HDMI - Connectivity: HDMI out, USB 2.0, SD - Storage: 4GB SD card (included) - Power: 100V-240V power adapter (included) - Mounting: C-mount - 0.37X reduction lens to get larger field of view
BulletPoint7 : 5-year warranty against manufacturing defects
Color : Multicolor
Color1 : Multicolor
Color2 : Off-White
Color3 : Silver
Color4 : Off-White
CompatibleDevices : Personal Computer, Laptop
CompatibleDevices1 : Smartphone
CompatibleDevices2 : Tablet
CompatibleDevices3 : Personal Computer
CompatibleDevices4 : Laptop
CompatibleDevices5 : Television
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 670541515990
ExternallyAssignedProductIdentifier2 : 0670541515990
ExternallyAssignedProductIdentifier3 : 0670541485118
ExternallyAssignedProductIdentifier4 : 0670541488454
Hazmat : 9
IncludedComponents : Microscope
ItemName : OMAX 40X-2500X 1080p HDMI Camera Darkfield Lab Siedentopf Trinocular LED Microscope for Live Blood
ItemPackageDimensions_Height : 48 centimeters
ItemPackageDimensions_Length : 53 centimeters
ItemPackageDimensions_Width : 27 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 2500 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelName : T120B
ModelNumber : M8311Z-A191BOIL-HD80A
NumberOfItems : 1
PartNumber : M8311Z-A191BOIL-HD80A
PowerSourceType : Corded Electric

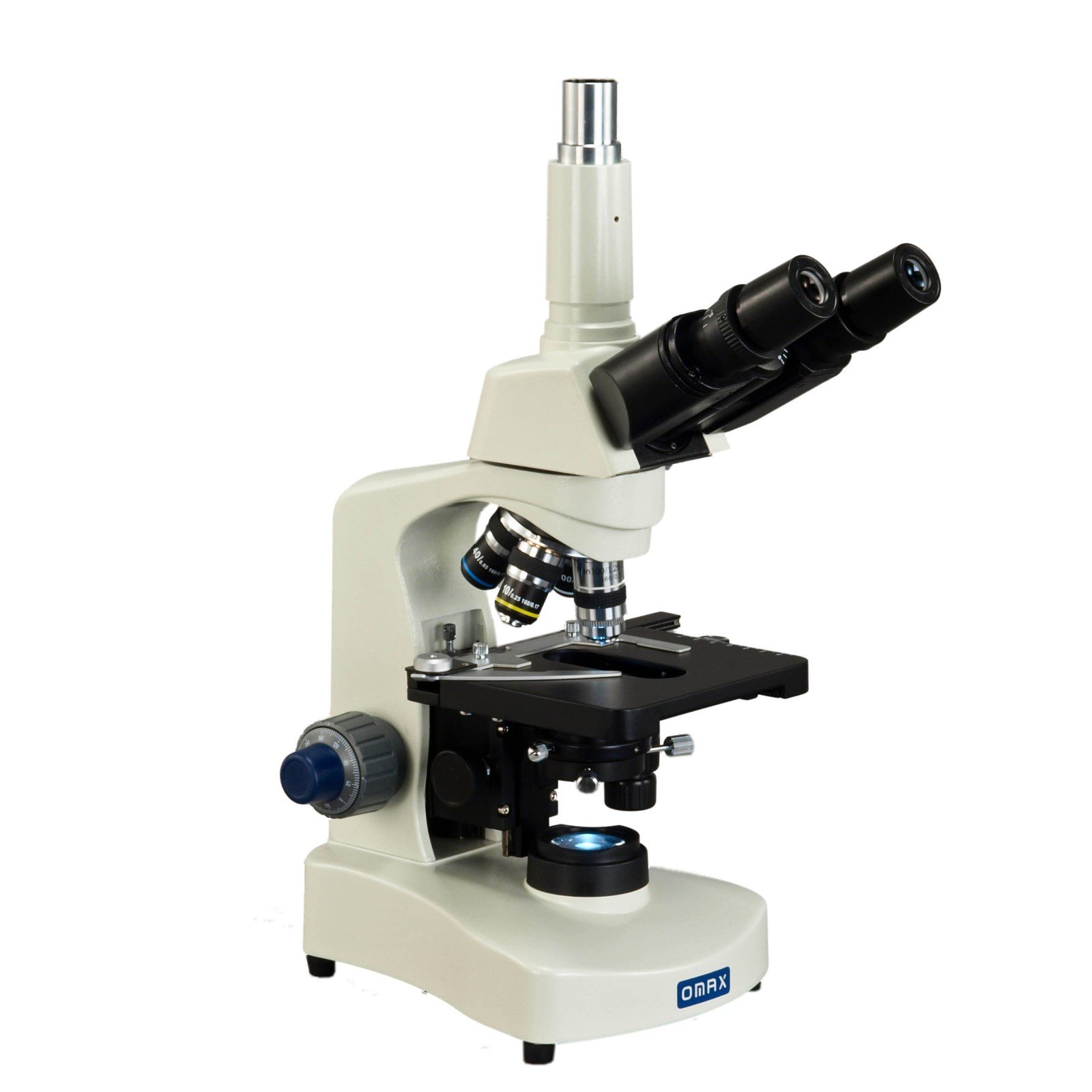

ProductDescription : This trinocular compound LED siedentopf microscope 40X-2500X provides brightfield & darkfield microscope system and HDMI digital microscope camera system. The darkfield microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This 1920x1080, 15fps via HDMI, or USB2.0 digital camera kit allows for live viewing and recording of your microscope image with ease and extremely high quality! This darkfield compound microscopy is ideal for professionals and also affordable for students.
ProductSiteLaunchDate : 2017-10-09T19:21:52.515Z
RealAngleOfView : 30 degrees
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41111700
Voltage : 240 volts
WarrantyDescription : 5 Year Warranty
