Specification
Brand : OMAX
BulletPoint1 : Total magnification: 40x-80x-100x-200x-250X-400x-800x-1000x-2000x-2500X; Eyepieces: wide field WF10X/20, WF20X and WF25X; Objective: infinity-corrected plan field achromatic DIN 4x, 10x, 40x(Spring, WD 2.8mm), 100x(Spring, Dry, WD 0.7mm); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf head
BulletPoint2 : Total magnification: 40x-80x-100x-200x-250X-400x-800x-1000x-2000x-2500X; Eyepieces: wide field WF10X/20, WF20X and WF25X; Objective: infinity-corrected plan field achromatic DIN 4x, 10x, 40x(Spring, WD 2.8mm), 100x(Spring, Dry, WD 0.7mm); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf head
BulletPoint3 : Total magnification: 40x-80x-100x-200x-250X-400x-800x-1000x-2000x-2500X; Eyepieces: wide field WF10X/20, WF20X and WF25X; Objective: infinity-corrected plan field achromatic DIN 4x, 10x, 40x(Spring, WD 2.8mm), 100x(Spring, Dry, WD 0.7mm); Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf head
BulletPoint4 : Nosepiece: revolving quadruple; EPI illumination: 6V/30W halogen bulb, position adjustable, intensity adjustable, with built-in condenser, iris aperture diaphragm, iris field diaphragm, 2 color filter slots and polarizer/analyzer slots; Transmitted illumination: 6V/30W halogen bulb, intensity adjustable; Condenser (reflected): built-in, spiral adjustment
BulletPoint5 : Condenser (transmitted): attachable, Abbe NA1.25, rack/pinion focus adjustment, with iris aperture diaphragm and color filter holder; Stage: triple layer mechanical stage with opaque metal plate for reflected light and transparent glass plate for transmitted light, size: 15cm - 14cm, translation range 50mm x 75mm; Focus mechanism: Coaxial coarse and fine knobs on both sides with adjustable tension control and stop lever; Power supply: 110V 50Hz/60Hz (US and Canada)
BulletPoint6 : Digital camera: - true color 2592x1944 pixels (5M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : 5-year warranty against manufacturing defects
Color : White
ExternallyAssignedProductIdentifier : 9586903669236
ExternallyAssignedProductIdentifier1 : 670541479025
ExternallyAssignedProductIdentifier2 : 670541493779
ExternallyAssignedProductIdentifier3 : 0670541493779
ExternallyAssignedProductIdentifier4 : 0670541479025
Hazmat : 9

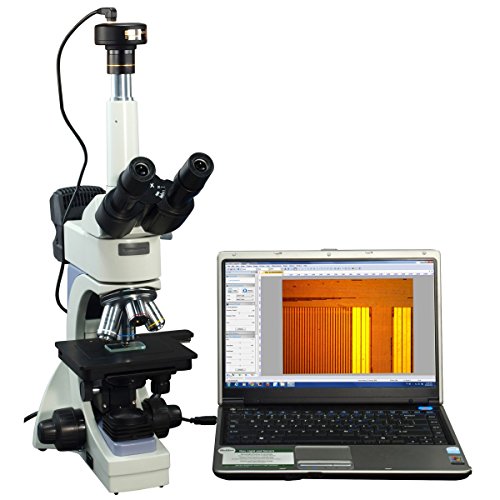

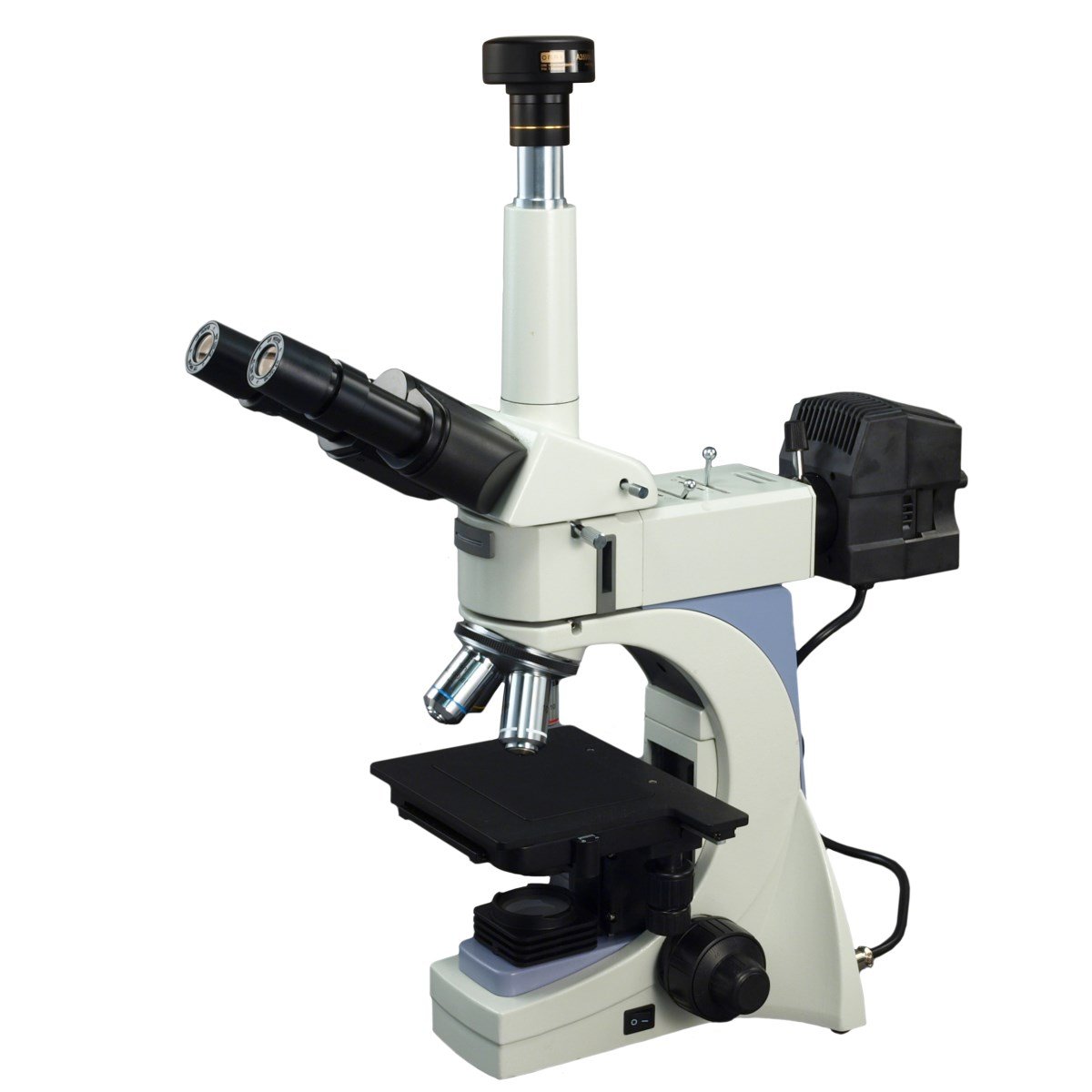

ItemName : OMAX 40X-2500X Digital Infinity Trinocular Metallurgical Microscope withTransmitted/Reflected Light with 5MP Camera
ItemPackageDimensions_Height : 40 centimeters
ItemPackageDimensions_Length : 64 centimeters
ItemPackageDimensions_Width : 24 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 2500 multiplier_x
Manufacturer : OMAX
Material : Metal
ModelNumber : M83MPTRZ-C50U
NumberOfItems : 1
PartNumber : M83MPTRZ-C50U
PowerSourceType : Corded Electric
ProductDescription : This metallurgical microscope can be widely used for metallurgical, mineral and crystal identification, electronic integrated circuit examination and research. The microscope features attachable polarizing plates and infinity-corrected plan field achromatic objectives and includes a 5MP USB digital microscope camera. The 100X objective is dry (immersion oil free) and has a longer working distance to create a contact free inspection during use. The microscope uses an EPI illumination system to reflect light off of the specimen through the objectives, allowing for observation of opaque specimens. The long working distance of the 40X (2.8mm) and 100X (0.7mm) objectives makes it possible to inspect rough surfaces. Equipped with both reflected and transmitted illuminator systems, this metallurgical microscope can perform as a normal compound microscope as well. The digital camera captures still microscope images, streams live video preview to your computer, and is compatible with Windows XP/Vista/7/8/10, Mac OS X, and Linux (2.6 and later). The 0.5X reduction lens included gives your computer screen a wider field of view. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. As with all of our microscopes, this microscope comes with a 5 year manufacturer warranty.
ProductSiteLaunchDate : 2015-03-06T19:55:16.013Z
RealAngleOfView : 30 degrees
Size : PL 12.5mm
SupplierDeclaredDgHzRegulation : unknown
UnspscCode : 41111700
Voltage : 240 volts
