Specification
Brand : OMAX
BulletPoint1 : Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
BulletPoint2 : Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
BulletPoint3 : Total magnification for bright field: 40X-100X-250X-400X-1000X-2500X; Total magnification for phase contrast: 100X-200X-250X-400X-500X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Brightfield objectives: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil); Viewing Head: 30 degrees inclined 360 degrees rotatable trinocular siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube
BulletPoint4 : Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 3inch x 1-9/16inch (78mm x 40mm), dimension 5-1/2inch x 4-1/4inch (140mm x 110mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable; Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack and pinion adjustment
BulletPoint5 : Phase contrast kit: - Substage phase contrast condenser disk with five switchable positions - One bright field NA1.25 with iris diaphragm Abbe condenser - Four phase contrast condensers: 10X, 20X, 40X, 100X - Each phase contrast condenser can be centered individually - Four plan PH objectives: 10X, 20X, 40X (S), 100X (S, Oil) - 37mm mounting size in diameter - Centering telescope: 23.2mm; Solid metal base and stand; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)

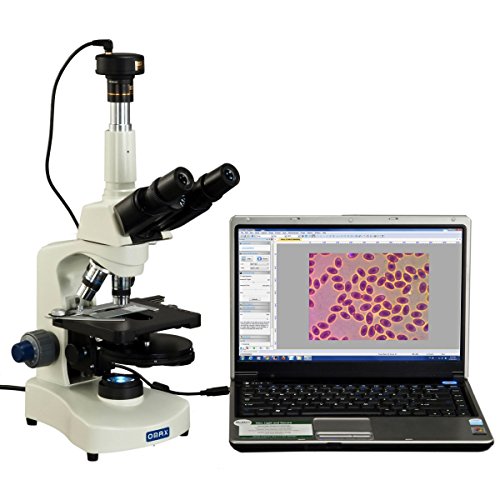

BulletPoint6 : Digital camera: - true color 3488x2616 pixels (9M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame rate: 1.9fps at 3488x2616, 8fps at 1744x1308, 27fps at 872x654 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
BulletPoint7 : 5-year warranty against manufacturing defects
Color : White
ExternallyAssignedProductIdentifier : 9586903669236
ExternallyAssignedProductIdentifier1 : 670541479384
ExternallyAssignedProductIdentifier2 : 0670541479384
Hazmat : 9

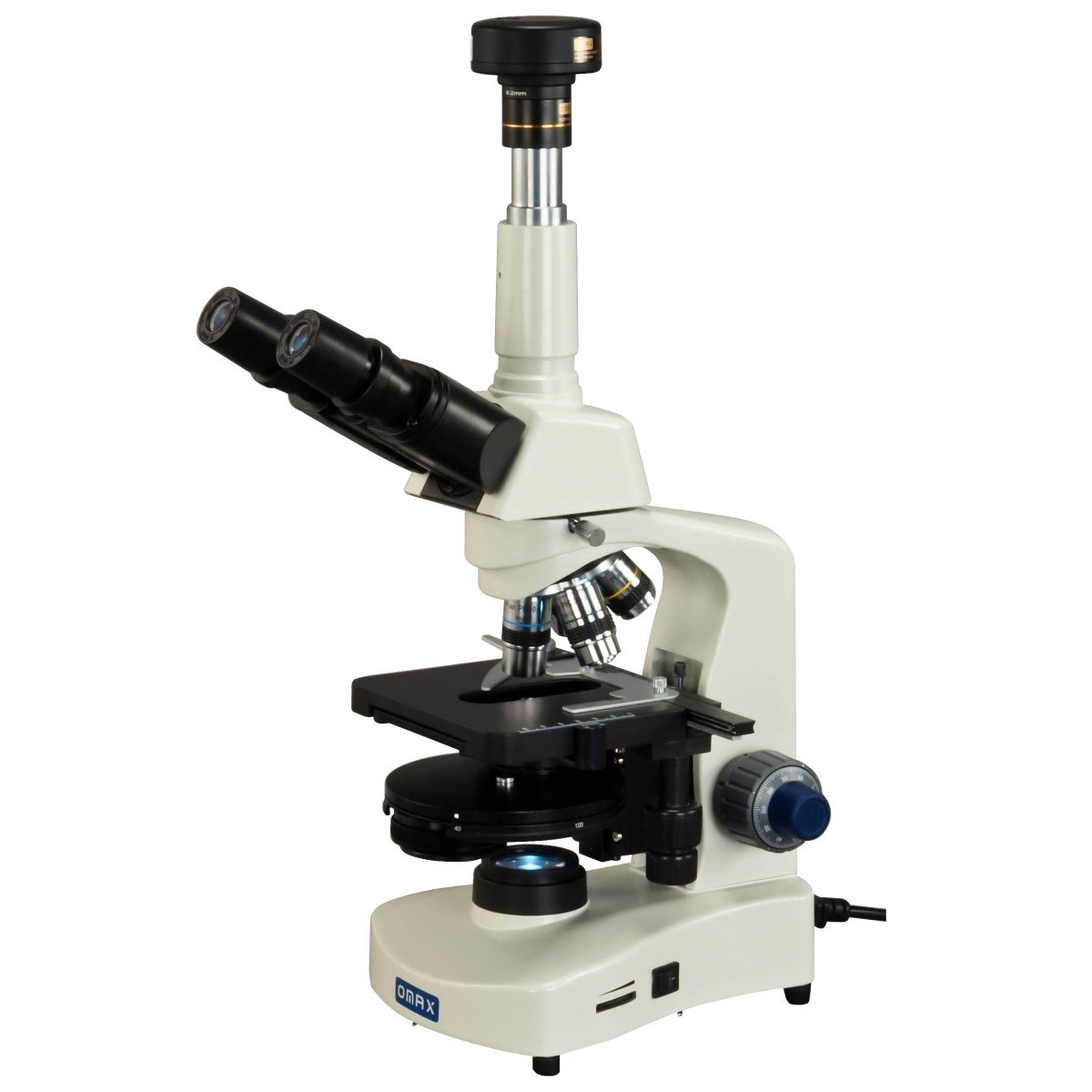

ItemName : OMAX 40X-2500X Plan Phase Contrast Trinocular Compound LED Siedentopf Microscope with 9MP Digital Camera
ItemPackageDimensions_Height : 55 centimeters
ItemPackageDimensions_Length : 68 centimeters
ItemPackageDimensions_Width : 36 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 2500 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelNumber : M8311Z-PHB1-C90U
NumberOfItems : 1
PartNumber : M8311Z-PHB1-C90U
PowerSourceType : Corded Electric
ProductDescription : The 40X-2000X trinocular compound LED microscope provides phase contrast & brightfield microscope system and USB digital imaging system. The phase contrast microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. It comes with LED illumination with variable intensity, Abbe NA1.25 condenser with iris diaphragm, a complete set of phase contrast kit and 9MP USB camera. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast kit includes a phase contrast condenser, a centering telescopic eyepiece, four plan phase contrast objectives: PH10X, PH20X, PH40X (S), PH100X (S, Oil). It also offers magnification power: 100X-200X-250X-400X-500X-1000X-2500X. The 3488x2616 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with windows Mac OS and Linux operating system can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This phase contrast compound microscopy is widely used clinical, biological research and schools, specially for observing live cells.
ProductSiteLaunchDate : 2015-03-06T19:54:48.628Z
RealAngleOfView : 30 degrees
Size : PL 12.5mm
SupplierDeclaredDgHzRegulation : unknown
UnspscCode : 41111700
