Specification
Brand : OMAX
BulletPoint1 : Total Magnification: 40X, 100X, 200X, 400X; Eyepiece - A pair of 10X eyepieces with 20mm wide field of view; Objective - Infinity plan achromatic 4X/0.10, WD 22.3mm - Infinity plan phase contrast 10X/0.25, WD 6.2mm - Infinity plan phase contrast 20X/0.40, WD 3.1mm - Infinity plan phase contrast 40X/0.55, WD 2.2mm; Viewing Head - Siedentopf binocular 45 degrees inclined viewing head - Interpupillary distance adjustable: 50mm-70mm ( 2inch-2-3/4inch ) - Inner diameter of ocular tube:30mm
BulletPoint2 : Total Magnification: 40X, 100X, 200X, 400X; Eyepiece - A pair of 10X eyepieces with 20mm wide field of view; Objective - Infinity plan achromatic 4X/0.10, WD 22.3mm - Infinity plan phase contrast 10X/0.25, WD 6.2mm - Infinity plan phase contrast 20X/0.40, WD 3.1mm - Infinity plan phase contrast 40X/0.55, WD 2.2mm; Viewing Head - Siedentopf binocular 45 degrees inclined viewing head - Interpupillary distance adjustable: 50mm-70mm ( 2inch-2-3/4inch ) - Inner diameter of ocular tube:30mm
BulletPoint3 : Total Magnification: 40X, 100X, 200X, 400X; Eyepiece - A pair of 10X eyepieces with 20mm wide field of view; Objective - Infinity plan achromatic 4X/0.10, WD 22.3mm - Infinity plan phase contrast 10X/0.25, WD 6.2mm - Infinity plan phase contrast 20X/0.40, WD 3.1mm - Infinity plan phase contrast 40X/0.55, WD 2.2mm; Viewing Head - Siedentopf binocular 45 degrees inclined viewing head - Interpupillary distance adjustable: 50mm-70mm ( 2inch-2-3/4inch ) - Inner diameter of ocular tube:30mm
BulletPoint4 : Stage - Plain stage, dimension 230mm x 170mm - Mechanical stage attachment: X-Y stroke 120mm x 80mm - Stage extension plate: working surface 189mm x 70mm - Stage insert plate: glass, phi108mm - Slide holder plate: metal, 128mm x 86mm, slot for slide 76mm x 26mm, opening for petri dish phi54mm - Terasaki holder plate: metal, 138mm x 86mm, slot for Terasaki plate 81mm x 56mm, opening for petri dish phi65mm - Petri dish holder plate: metal, 81mm x 56mm, opening for petri dish phi35mm
BulletPoint5 : Nosepiece - Revolving, quintuple; Focusing - Coaxial fine and coarse knobs on both side - Tension adjustable; Illumination - Transmitted illumination - 6V/30W halogen bulb - Light intensity is adjustable - Aperture iris diaphragm - Condenser: working distance 72mm, NA 0.3, removable for large working room
BulletPoint6 : Photo port - Upper port: light split 20/80 (eyepiece / photo) - Lower port: light split 0/100 (eyepiece / photo) - Camera adapter with C-mount - Camera adapter with standard 23.2mm port; Color filter - Diameter phi45mm - LBD light balancing filter - IF550 interference filter (green) - SIF800 Inrared-eliminating filter (yellow); Phase contrast accessory - Phase contrast slider plate, center adjustable - Centering telescope; Power - AC110V
BulletPoint7 : Digital camera - true color 2560x1922 pixels (5M pixels) - Super speed USB 3.0 connection - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 14.2fps at 2560x1922, 38.3fps at 1280x960, 101.2fps at 640x480 - Software compatible with Windows, Mac OS X and Linux operating systems - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB3 cable included
ExternallyAssignedProductIdentifier1 : 0670541485361
ExternallyAssignedProductIdentifier2 : 670541485361
ExternallyAssignedProductIdentifier3 : 0670541488164
ExternallyAssignedProductIdentifier4 : 0670541484791
Hazmat : 9
ItemName : OMAX 40X-400X 5MP USB3 Super Speed Digital Trinocular Inverted Phase Contrast Compound Microscope
ItemPackageDimensions_Height : 43 centimeters
ItemPackageDimensions_Length : 54 centimeters
ItemPackageDimensions_Width : 34 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-compound-trinocular-microscopes
MagnificationMaximum : 400 multiplier_x
Manufacturer : OMAX
Material : optical glass
ModelNumber : K832INV-C50U3
NumberOfItems : 1
PartNumber : K832INV-C50U3
PowerSourceType : Corded Electric

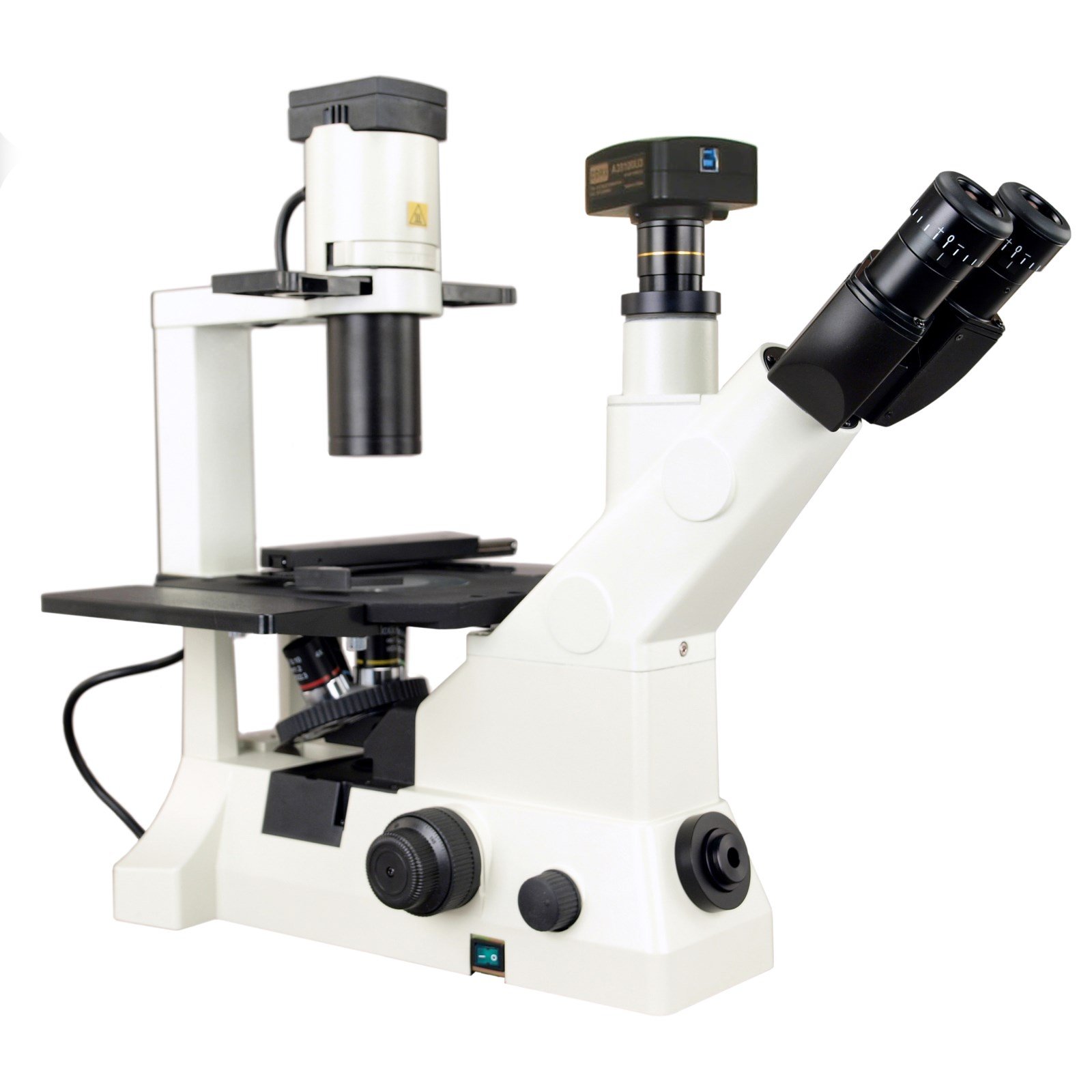

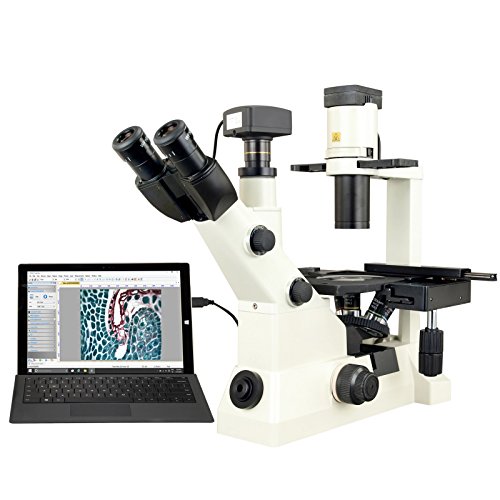

ProductDescription : This microscope system is a professional grade trinocular biological inverted microscope with super widefield eyepieces, long working distance PLAN objectives, and a super speed 5MP USB 3.0 microscope camera. It is designed for the applications involving biological specimens in large vessels. This microscope will allow you to observe specimen in culture flasks, Petri dishes or other similarly sized containers, and it comes with long working distance PLAN objectives, high quality phase contrast objectives, super widefield eyepieces, 45 degree inclined trinocular head. The microscope offers 40X, 100X, 200X and 400X magnification settings and phase contrast microscopy features. With a long working distance condenser and high-contrast phase contrast objectives, it provides high quality clear microscopy images of the cells of your specimen. It is an ideal microscope for observing living cells in micro research laboratories, universities, or medical offices.
ProductSiteLaunchDate : 2016-02-12T19:55:42.987Z
RealAngleOfView : 45 degrees
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41111700
Voltage : 240 volts
