Specification
Brand : Simpson Strong-Tie
BulletPoint1 : Patented thread design for quick and easy installation
BulletPoint2 : Installs closer to the edge without concrete failure
BulletPoint3 : Phillips flat head; zinc plated with ceramic coating
BulletPoint4 : Drill bit size: 5/32-inch
BulletPoint5 : Quantity: 25 per Tub
DriveSystem : Phillips
ExteriorFinish : Zinc
ExternallyAssignedProductIdentifier : 6180551464446
ExternallyAssignedProductIdentifier1 : 707392684732
ExternallyAssignedProductIdentifier2 : 0707392684732
ExternallyAssignedProductIdentifier3 : 00707392684732
GradeRating : A2-70

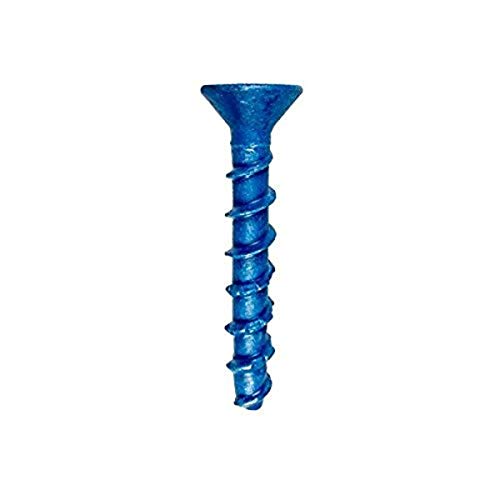

ItemName : Simpson Strong Tie TTN218114PFC25 Titen 3/16" x 1-1/4" Phillips Flat Head Concrete and Masonry Screw (25 per tub)
ItemPackageDimensions_Height : 12.1 centimeters
ItemPackageDimensions_Length : 3.9 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemShape : Pan
ItemTypeKeyword : concrete-screws-and-bolts
Manufacturer : Simpson Strong Tie
Material : Zinc
MaximumShearStrength : 540 pounds_per_square_inch
MeasurementSystem : Metric
MetalType : Zinc
ModelName : TTN218114PFC25
ModelNumber : TTN218114PFC25
NumberOfItems : 1
NumberOfPieces : 100
PartNumber : TTN218114PFC25
ProductDescription : Applications
The anchor is made from Carbon Steel, and is Blue. This anchor is designed for use in Concrete, Block, and Brick.

Environment
The anchor is designed for use in a Dry environment.

Head Style
The anchor is a Flat Countersunk Phillips head and is designed to prevent the head from protruding above the surface of the item being attached.

Hole Diameter/Bit Diameter
The anchor requires a 5/32" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.

Driver Required
A #2 phillips bit is required for driving the anchor into the base material.

Diameter of Anchor
The diameter of the anchor is 3/16".

Length Anchor
The length of the anchor is 3-3/4"

Thread Length
The length of the threads on the anchor is 1-3/4" in length.

Minimum Embedment
The minimum anchor embedment into the concrete is 1". Therefore, the anchor must be installed so that a minimum of 1" of the anchor is embedded into the concrete.

Maximum Fixture Thickness
The maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 2-1/4" to 2-3/4". This will ensure that the minimum embedment of 1" will be met.

Fixture Hole Diameter
The hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/16" diameter anchor requires the hole in the fixture to be 1/4".

Spacing between Anchors
Each anchor must be spaced a minimum distance of 3" from each other when measured center to center.

Edge Distance
It is very important not to install the anchor any closer than 2-1/4" from an unsupported edge of the concrete.
ProductSiteLaunchDate : 2018-02-14T04:26:04.309Z
Size : 1.25 inches
Style : M3*14
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 31161500
