Specification
Brand : AB Tools
BulletPoint1 : 7 Pin plug & Socket (N type)
BulletPoint2 : Brass pins
BulletPoint3 : durable metal housing
BulletPoint4 : rubber seal
BulletPoint5 : standard wiring colours,
BulletPoint6 : 【Versatile Applicaiton】Perfect for connecting tail, brake, reverse, turn signals, and auxiliary power of your trailers, RVs, campers, caravans, food vans, and other towed vehicles
Color : Gold
CompatibleDevices : TV Antenna
CompatibleWithVehicleType1 : Trailer
CompatibleWithVehicleType2 : Car
ConnectorGender : Female-to-Female
ConnectorType : Tv
ExternallyAssignedProductIdentifier : 5056133306651
ExternallyAssignedProductIdentifier1 : 042899780465
ExternallyAssignedProductIdentifier2 : 0042899780465
ExternallyAssignedProductIdentifier3 : 00042899780465
FinishType : Powder Coated
GpsrSafetyAttestation : 1
IncludedComponents : connector(2)^
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

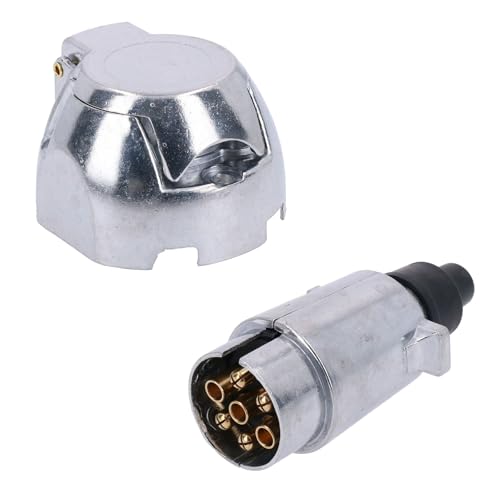

ItemName : AB Tools Tow Bar Electrics 7 pin 12v N Type Metal Aluminium Socket & Plug Trailer Lights Car
ItemPackageDimensions_Height : 12.954 centimeters
ItemPackageDimensions_Length : 21.336 centimeters
ItemPackageDimensions_Width : 9.652 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : trailer-connectors
Manufacturer : AB Tools
Material1 : Metal
Material2 : Brass
MeasurementType : Ohmmeter
ModelName : 78046
ModelNumber : 78046
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : TR040_TR042
PartTypeId : 2640

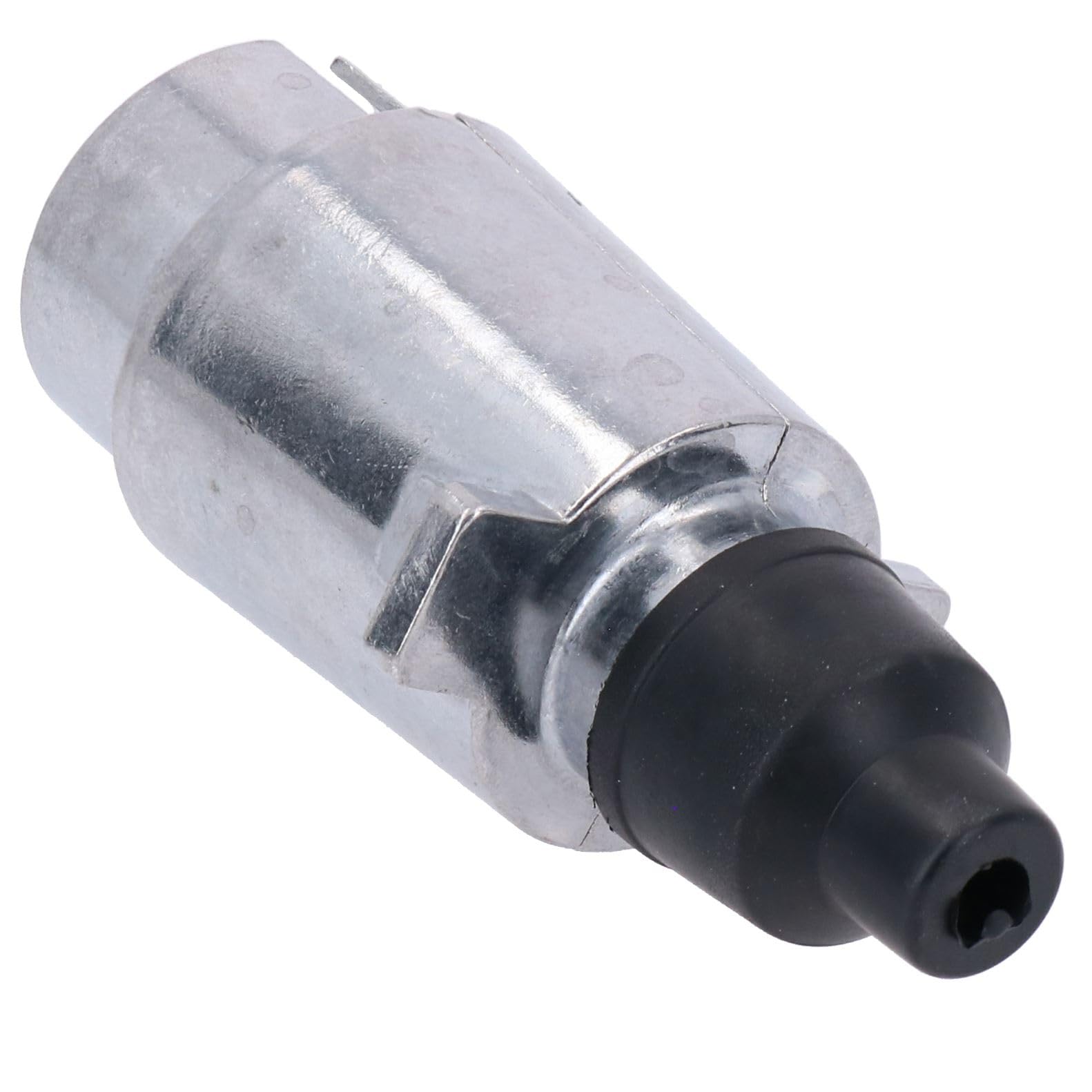

ProductDescription : 7 Pin Metal Plug Specifications

This listing is for a metal 7 Pin plug (N type) to do the lights on a caravan or trailer.

Ideal for new builds or for replacing damaged plugs on existing trailers.

Screw connection inside the plug, easy for DIY replacement. (See fitting guide below)

Brass pins in a durable metal housing with rubber seal.

Provides connections for indicators, side lights, brake lights and fog lamp.

Also available with a plastic case, please see our shop for this version.

PIN 1 Yellow Wire (Left Indicator)

PIN 2 Blue Wire (Fog Lamp)

PIN 3 White Wire (Earth Return)

PIN 4 Green Wire (Right Indicator)

PIN 5 Brown Wire (Right Side light)

PIN 6 Red Wire (Brake lights)

PIN 7 Black Wire (Left Side light)

This guide shows the standard wiring colours, but your trailer might not be standard. If it is not then you should note which pin number each wire goes to before removing the old plug and simply connect the new one the same.

7 Pin Metal Socket Specifications

This listing is for a Metal 7 Pin socket (N type) to power trailer or caravan lights.

Ideal for new tow bars or for replacing damaged sockets on existing cars.

Screw connection inside the plug, easy for DIY replacement.

Brass pins in a durable metal housing.

Provides connections for indicators, side lights, brake lights and fog lamp.

Also available with a plastic case, please see our shop for this version.

PIN 1 Yellow Wire (Left Indicator)

PIN 2 Blue Wire (Fog Lamp)

PIN 3 White Wire (Earth Return)

PIN 4 Green Wire (Right Indicator)

PIN 5 Brown Wire (Right Side light)

PIN 6 Red Wire (Brake lights)

PIN 7 Black Wire (Left Side light)


ProductSiteLaunchDate : 2010-08-15T14:51:54.566Z
RecommendedUsesForProduct : connecting TV antennas to televisions, facilitating TV antenna signal reception
Size : normal
StreetDate : 2012-07-06T00:00:01Z
Style : rv emergency brake switch with 5 feet trailer breakaway coiled cable
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 2
UnspscCode : 25174418
WarrantyDescription : 1 Year
