Specification
Brand : Longs Motor
BulletPoint1 :

1. USAGE: 3D printer. CNC machine. Carver Machine. Dispenser. Automation. Robotization.Stage lighting. Instrument. Laser equipment.Scanner.

BulletPoint2 :

2. TORQUE: 250N.cm Min Holding Torque. 10N.cm Max. 680g.cm2 Rotor Torque.

BulletPoint3 :

3. OTHER PARAMETORS: 2 Phase. 1.8±5%°/ Step. 3 Voltage. 3A/Phase Current. 1.4±10% Ω/Phase Resistance. 5.5±20% mH/Phase Inductance. B level Insulation Class.

BulletPoint4 :

4. Warranty: 1 Year free return. 24hours- 7 days customer services

BulletPoint5 :

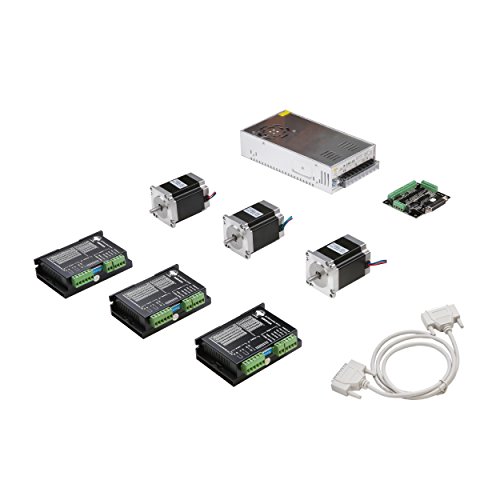

5. Package: Come with 3 Pcs products 3pcs 23HS8430 stepper motor,3pcs driver dm542a,1pc power 350w-36v,1pc breakout board and cable

Color : Black
ExternallyAssignedProductIdentifier1 : 0603470347721
ExternallyAssignedProductIdentifier2 : 603470347721
Horsepower : 80 watts
ItemName : 3axis Nema 23 Stepper Motor 270oz-in &Driver Dm542a 4.2a CNC Router
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : electric-motor-controls
Manufacturer : Longs Motor
Material : lead
ModelName : gearbox
ModelNumber : TEC3650
PartNumber : TT TEC3650-15
Pattern : 12V 3000RPM
ProductDescription :

Item Model No: 23HS8430

Motor Type: Nema 23 Hybrid Stepping Motor

Step angel(°): 1.8

Rate Voltage(V): 3

Rate Current(A): 3

Phase Resistance(Ω): 1.4

Phase Inductance(mH): 5.5

Holding Torque(N.cm.Min): 250

Lead Wire(No.) : 4

Rotor Inertia(g.cm2): 680

Detent Torque(N.cm Max): 10

Motor Weight(kg): 1.25

Item Frame Size: 56X56 mm

Item Body Length: 76 mm

Item Shaft Diameter: 6 mm

Item Shaft Length: 21 mm

Lead: 4wires

Black(A+), Green(A-), Red(B+), Blue(B-)

Stepper Motor Driver:

Average Current Control, 2-Phase Sinusoidal Output Current Drive

Supply Voltage from 24VDC to 20VDC

Opto-isolated Signal I/O

15 Channels Subdivision and Automatic Idle-Current Reduction

8 Channels Output Phase Current Setting



Power Supply:

350W-36V

Breakout Board and One Pc Parallal Cable

Built in DB25 Male Connector

 DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17DB25 Input Pin: P10,P11,P12,P13,P15.DB25 GND Pin: P18-P25Power supply: +5V DC

Built in C-class Optical-coupler

High quality with Surface-mount Tech

ProductSiteLaunchDate : 2016-01-03T08:00:00.000Z
UnitCount : 1
UnspscCode : 26111500
Voltage : 36 volts
Wattage : 11 watts
