Specification
Amperage : 110 amps
Brand : ATO.COM
BulletPoint1 : 【Specification】 Capacity: 40hp 30kw, Input Voltage Three-phase 240v AC±15%(Optional), Current: 110 amps
BulletPoint2 : 【Function】Make AC motor in soft start & soft stop, protecting AC motor from over-voltage, over-current and phase unbalance etc.
BulletPoint3 : 【Protective Function】Input open phase protection, Output open phase protection, Running overload protection etc.
BulletPoint4 : 【Adaptive Motor】Squirrel-cage three-phase asynchronous motor
BulletPoint5 : 【Customer First 】We have soft starters available for other input voltages such as 220V/380V/480V, etc. If you need to purchase the voltage not listed, or have any issue about the product, please email us. We will answer you within 12h
Color : Clear
ExternallyAssignedProductIdentifier1 : 0783902770508
ExternallyAssignedProductIdentifier2 : 783902770508

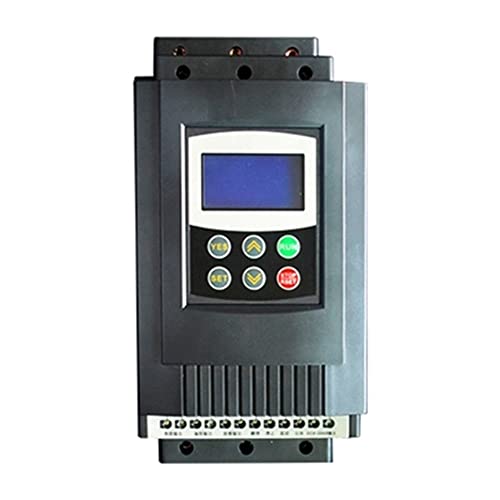

ItemName : ATO 40 hp 30 kw Soft Starter, 110A, 3ph 240v, with RS485 Communication Interface, Soft Starter for Three Phase Electric Motor
ItemTypeKeyword : electric-motor-controls
Manufacturer : ATO
Material : Copper
ModelName : ECS100T4H5EF4
ModelNumber : ECS100T4H5EF4
NumberOfItems : 1
PhaseType : three phase,three-phase
ProductDescription :

Specifications:

Capacity   10 hp (7.5 kw)/15 hp (11 kw)/20 hp (15 kw)/25 hp (18 kw)/30 hp (22 kw)/40 hp (30 kw) (Optional)

Weight   5 kgs

Dimension  270*146*160 mm

Input Voltage Three-phase 240v AC

Adaptive Motor Squirrel-cage three-phase asynchronous motor

Starting Times It is recommended not to exceed 20 times per hour.

485 Communication DB9 interface, male plug, ① is RS485+, ⑥ is RS485-

Control Mode:

Operation panel control

Operation panel + external control

External control

External control + COM control

Operation panel + external + COM control

Operation panel + COM control

COM control

No start or stop operation.

Start Mode:

Current-limiting to start.

Voltage ramp to start.

Torque control + current-limiting to start.

Torque control + voltage ramp to start.

Current ramp to start.

Voltage current-limiting double closed-loop start.

Stop Mode

Soft stop.

Free stop.

Protective Function:

Open loop protection for external instantaneous stop terminals.

Over-heat protection for soft starter.

Protection for too long starting time.

Input open phase protection.

Output open phase protection.

Unbalanced three-phase protection.

Starting over current protection.

Running overload protection.

Under voltage protection for power voltage.

Overvoltage protection for power voltage.

Protection for fault parameter setting of the soft starter.

Load short circuit protection.

Auto restart or incorrect wiring protection.

Incorrect wiring protection of external control stop terminals.

Structure

Enclosure IP 20

Cooling Natural wind cooling.

ProductSiteLaunchDate : 2020-07-02T13:02:34.868Z
Size : 40 hp 30 kw
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 39121521
Voltage : 240 volts
Wattage : 30 kilowatts
