Specification
Brand : ATO.COM
BulletPoint1 : 500 amps rated load current of contact circuit.
BulletPoint2 : 12V, 24V, 48V DC coil rated voltage for selection.
BulletPoint3 : The allowed range of coil voltage is ±20%.
BulletPoint4 : Mechanical life up to 300 thousand times.
BulletPoint5 : Widely use for battery, rectification power supply, pump motor and other electronic vehicles.
Color : black
CurrentRating : 500 amps
EngineType : 2 Stroke
ExternallyAssignedProductIdentifier1 : 0783902770256
ExternallyAssignedProductIdentifier2 : 783902770256
FinishType : Finish
FuelType : Gasoline
InputVoltage : 220 volts
ItemDisplayDimensions_Length : 2 inches

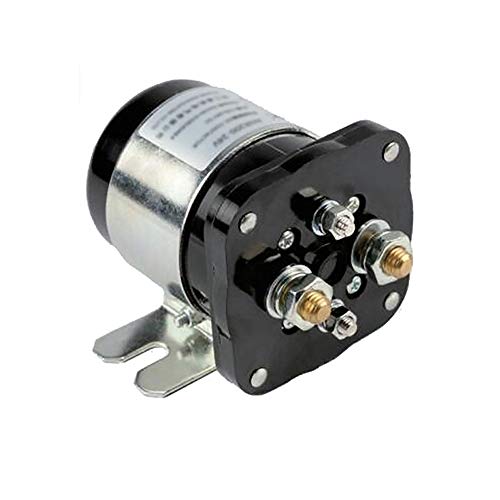

ItemName : ATO 500A DC Contactor, Single Pole, 12V/24V/48V,for Battery, Rectification Power Supply, Pump Motor and Electronic Vehicles. (24V)
ItemPackageDimensions_Height : 22 centimeters
ItemPackageDimensions_Length : 16.4 centimeters
ItemPackageDimensions_Width : 19.8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electric-motor-controls
LegalComplianceCertifications : CARB Compliance Certificate
Manufacturer : ATO
Material : iron
MaximumHorsepower : 3.6 horsepower
MaximumSwitchingVoltage : 24 volts
MeasurementSystem : Metric
ModelNumber : AT1-04K0X
MountingType : Pole
NumberOfItems : 1
NumberOfPorts : 1
OperationMode : Motor
PartNumber : DCCON-C500
ProductDescription :

ATO 500A high current contactor with singlepole, designed for direct current loads, IP 50 protection, good quality andlong life., with one normal open contact, using for battery, rectificationpower supply, pump motor and other electronic vehicles.

Specification:

Basics   :

Model      ATO-NR500

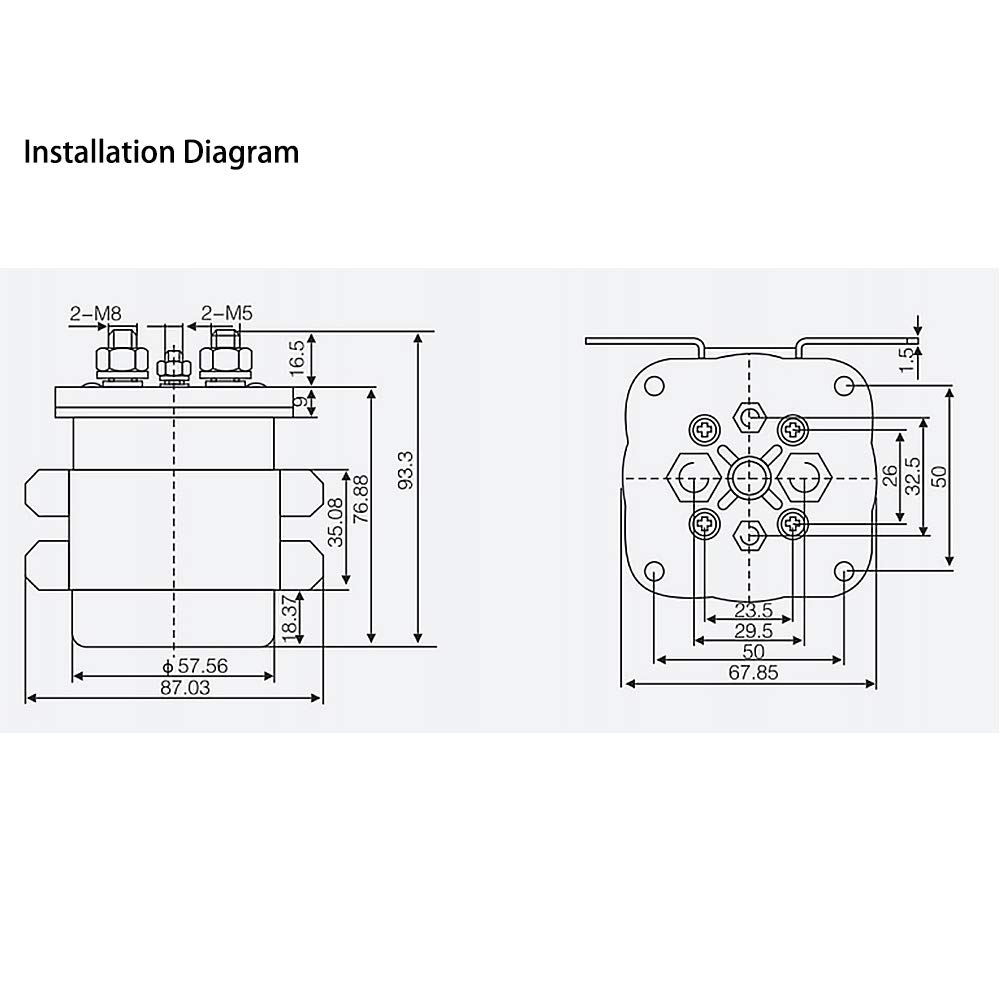

Body Size 85*68*93mm

Weight    800g



Technical Parameters:

Coil Rated Voltage   12V/24V/48V

Rated Load Voltage 12~72V DC

Contact Circuit Rated Load Current      500 A

Contact Form  1 NO

Overload Current     ≤7 le

Coil Power        ≤7.2 W

Main Contact Voltage Drop at 100A Load      ≤100 mV

The Allowed Range of Coil Voltage ±20%

Pull-In Time (N/O Contacts to Open)       ≤30 ms

Drop-Out Time (N/O Contact to Close)   ≤20 ms

Insulation Resistance      ≥50 MΩ

Dielectric Withstanding Voltage     50Hz/60Hz 1500VAC/Min

Electric Life      Continuous 20000 times

Mechanical Life        300 thousand times

 Environment    Operating:

Temperature   -25℃~55℃

Operating Humidity 5~95% RH

International Protection IP 50

Tips: What is a DC contactor?

DC contactor is mainly used for remotelyconnecting and disconnecting the DC circuit, as well as frequently starting,stopping, reversing and plug braking the DC motors. It's also widely used forconnecting and disconnecting the lifting electromagnet, solenoid valve,clutch's magnetic coils.

ProductSiteLaunchDate : 2020-06-30T17:52:21.219Z
RecommendedUsesForProduct : For Salt Water
RegulatoryComplianceCertification : PSDOS.0565GA-006
Size : 24V
SpecificationMet : Ms
UnitCount : 1
UnspscCode : 26111700
Voltage : 24 volts
