Specification
Brand : ele ELEOPTION
BulletPoint1 : Model: CCM96SK
BulletPoint2 : Potentiometer: resistance value B ：100K; Opening： 8mm Input voltage: DC10-60V The output voltage is about 0-100% of the input voltage
BulletPoint3 : Control power: 12V*10A = 120W, 24V* 10A = 240W. Rated current: 10A, Maximum current: 20A
BulletPoint4 : Speed adjustment range: 5%-100%, Size: 88mm*59mm*35mm,PWM frequency: 25kHz
BulletPoint5 : The positive and negative poles of the power supply of the governor cannot be connected reversely, as the reverse connection will directly damage the governor!

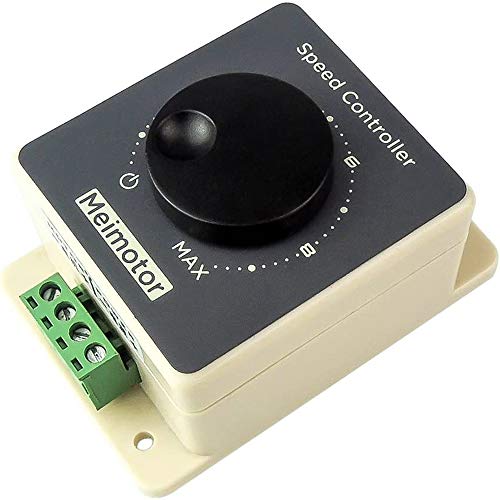

ItemName : CCM96SK DC12-40V 10A CCMHCW PWM DC Motor Speed Controller, 775 high Power Motor Controller External Speed Control Waterproof Adjustment Switch
ItemTypeKeyword : electric-motor-controls
Manufacturer : Hengwei
Material : copper
ProductDescription :

Parameter:

Model: CCM96SK

Potentiometer: resistance value B ：100K; Opening： 8mm

Input voltage: DC10-60V

The output voltage is about 0-100% of the input voltage

Control power: 12V*10A = 120W, 24V* 10A = 240W...

Rated current: 10A

Maximum current: 20A

Speed adjustment range: 5%-100%.

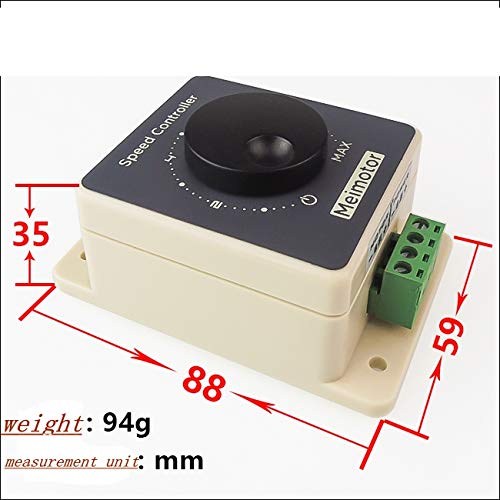

Size: 88mm*59mm*35mm

PWM frequency: 25kHz

Weight: 94g

Package include：

1x A speed controller

Precautions and instructions for use

1. The input of the DC motor speed controller is DC, and cannot be directly connected to AC.

2. Contact positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.

3. The motor can contact positive or negative, when the running direction is inconsistent with the expectation. The direction can be changed by adjusting the line sequence.

4. The potentiometer knob can change the duty cycle of the governor output, thereby changing the motor speed.

Note：

The positive and negative poles of the power supply of the governor cannot be connected reversely, as the reverse connection will directly damage the governor!
