Specification
Brand : LeTkingok
BulletPoint1 : Support three operation modes: edge-following, line-following and center-alignment; Support photoelectric sensor, ultrasonic transducer and CCD Sensor; Support Modbus and PLC/Human-computer networking control.
BulletPoint2 : Detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances; Automatic travel measurement, no need to limit the switch mechanically.
BulletPoint3 : No overshot integral variable PI algorithm, high accuracy, fast reaction and less error; 0.5msec super-speed of responding; Analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second.
BulletPoint4 : Adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal; DC servo motor to push the ball screw; Power-down memory of all the parameters at any states in the system.
BulletPoint5 : Store 10 groups of parameters from different material, convenient and efficient switchover of material; Simplified Chinese/ Traditional Chinese /English for menu operation; Humanized operation, fast, simple and convenient.
Color : Stroke 80MM
ExternallyAssignedProductIdentifier : 7389786668417
ExternallyAssignedProductIdentifier1 : 0755205965219
ExternallyAssignedProductIdentifier2 : 755205965219
IncludedComponents : 1 x Set of Servo Edge Position Control System

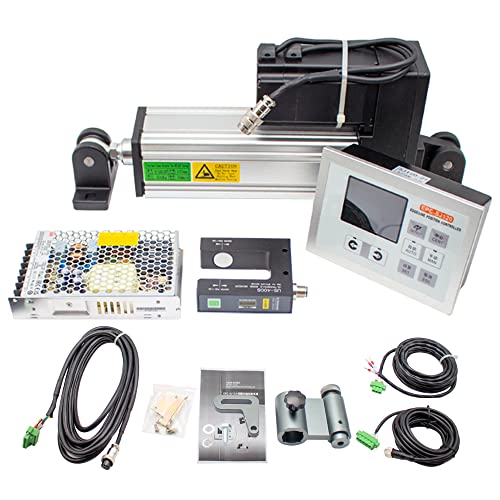

ItemName : LeTkingok EPC Servo Edge Position Control System, EPC Web Guide Control System (Stroke 80MM)
ItemPackageDimensions_Height : 22 centimeters
ItemPackageDimensions_Length : 18 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electric-motor-controls
Manufacturer : LeTkingok
Material : fiber
ModelName : EPC Servo Edge Position Control System
ModelNumber : T-EPC
NumberOfItems : 1
PartNumber : Akozonfikmp0vc7a
PowerSourceType : PowerSource
ProductDescription : EPC Servo Edge Position Control System, EPC Web Guide Control System

Description:
1. Servo web guide Controller EPC adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm.
2. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and centre-alignment mode

Specification:
Correction controller:
Control Method: DC Servo Driver
Power: DC 24V /5A
Control Input: DC 0~5A
Control output: 24V, PWM
Response time: 0.5 ms
Environment temperature: -10~60C, below RH90%
Weight: 1.2 kg

Sensor:
Color sensor: US-400S
Power supply: DC-12V
Power Output :DC 0-5V
Detective range : 5mm
Detective accuracy: 0.1mm
Detector methods: Ultrasonic exposure
Frequency : 100KHZ
Shell material :Aluminum alloy

Servo Actuator:
Max thrust :2000N
Driving load:2000KG
Stroke range: 80MM/150MM/200MM/300MM
Max Driving Speed: 40mm/s

Application:
1. Textile machinery: fiber twisters, treatment machines, weaving machines
2. Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
3. Machine tool systems: lathes, Millers, steel extruders, CNC lathes, specialized machinery
4. Transportation equipment: hoists, feeders, conveyors, rollers, winders
5. Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

Package included:
1 x Set of Servo Edge Position Control System
ProductSiteLaunchDate : 2021-06-16T09:07:12.869Z
Size : 12V
Style : Unique
SupplierDeclaredDgHzRegulation : other
UnitCount : 1
UnspscCode : 39120000
Voltage : 3 volts
Wattage : 2.2 kilowatts
