Specification
Amperage : 48 amps
Brand : LCRHLCNC
BulletPoint1 : Package 1PCS
BulletPoint2 : Specification：1.2Nm(175oz.in) holding torque，Current：3A,Step angle：1.8°，phase：2，Resistance：0.95±10%Ω，inductance：2.8±20%mH
BulletPoint3 : Size： Frame Size: 57 x 57mm ,Body Length: 56mm ,Shaft Diameter: 8mm , Shaft Length: 21mm
BulletPoint4 : Connection: Red(A+), Green(A-), Yellow(B+), Blue(B-)
BulletPoint5 : Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
Color : Khaki
CurrentRating1 : 10 amps
CurrentRating2 : 30 amps
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 4716820914064
ExternallyAssignedProductIdentifier1 : 024822095280
ExternallyAssignedProductIdentifier2 : 0024822095280
ExternallyAssignedProductIdentifier3 : 7426830892753
Horsepower : 80 watts
IncludedComponents : 1 x Nema23 1.2.N.m Stepper Motor
IncludedComponents1 : Wiring Diagram
IncludedComponents2 : Rubber Grommets

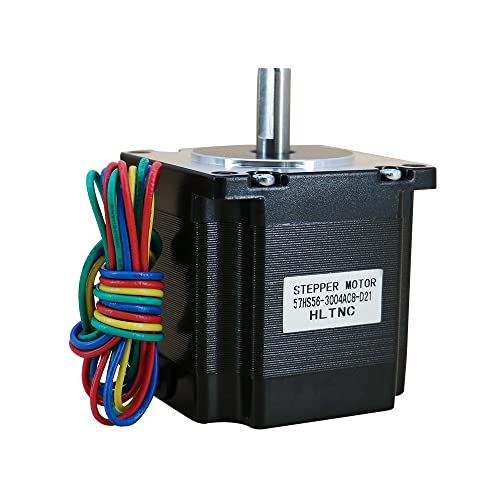

ItemName : Nema 23 CNC Stepper Motor 3A 178.5oz.in 1.2Nm 57HS56 CNC Stepping Motor DIY CNC Milling Engraving Machine (178.5oz.in-1.2Nm)
ItemPackageDimensions_Height : 17 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 9.5 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangle
ItemTypeKeyword : electric-motor-controls
Manufacturer : Lishui Hengli Automation Technology Co., Ltd.
Material : Alloy Steel
MaximumSwitchingCurrent : 30 amps
MeasurementSystem : Metric
ModelName : 57HS56
ModelNumber : 178.5oz.in-1.2Nm
NumberOfItems : 1
OperationMode : Automatic
PartNumber : 57HS56
PhaseType : 1 phase,single phase
ProductDescription : This is the strongest model for Nema 23 stepper motor, it with 1.8 deg. step angle (200 steps/revolution). Each phase draws 3A, allowing for a holding torque of 3.0Nm(425oz.in). Electrical Specification: * Manufacturer Part Number: 57HS56 * Motor Type: Bipolar Stepper * Step Angle: 1.8 deg. * Holding Torque: 3.0Nm(425oz.in) * Rated Current/phase: 3A * Phase Resistance:100mohm * Inductance: 6.5mH+/-20%(1KHz) Physical Specification: * Frame Size: 57 x 57mm * Body Length: 56mm * Shaft Diameter: 8mm * Shaft Length: 21mm * Number of Leads: 4 * Lead Length: 400mm * Weight: 0.7kg Connection: Red(A+), Green(A-), Yellow(B+), Blue(B-) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
ProductSiteLaunchDate : 2022-07-14T07:00:00.000Z
Size : 57*57*56mm
Speed : 1000 rpm
Style : 7.5-1-230X-48A
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 26100000
Voltage : 36 volts
Wattage : 7.5 kilowatts
