Specification
Brand : White-Rodgers
BulletPoint1 : The package length is 7.2 centimeters
BulletPoint2 : The package height is 22.4 centimeters
BulletPoint3 : The package width is 13.7 centimeters
BulletPoint4 : Package Weight : 0.919 kilograms
BulletPoint5 : 【LAN5160T4 performance parameters ①】maximum output 300KHz per channel; 7 common digital input interfaces; 3 common digital output interfaces; 1 PWM spindle speed output; support 4 channels stepper motor control, single channel maximum 300KHz control pulse output; ARM main control chip.
BulletPoint6 : 【LAN5160T4 performance parameters ②】The main control device is 24V powered, the current capacity is not less than 1A; each axis driver supports up to 256 subdivisions; each axis driver supports up to 6A current; the quiescent current, running current and subdivisions of the driver are adjustable, the adjustment position is in the plug-in page of mach3.
BulletPoint7 : 【Controller interfaces】In addition to the red power indicator and blue link indicator, the controller wiring area contains a total of Ethernet interfaces, MPG hand pulse interfaces, universal input interfaces, emergency stop input interfaces, spindle control interfaces, relay control interfaces, power supply interfaces, stepper motor interfaces and other interfaces.
Color : NEMA 1 Rated Plastic Enclosure
ControlsType : Knob
DrawerType1 : Storage
DrawerType2 : Broiler
ExternallyAssignedProductIdentifier1 : 703765994460
ExternallyAssignedProductIdentifier2 : 0703765994460

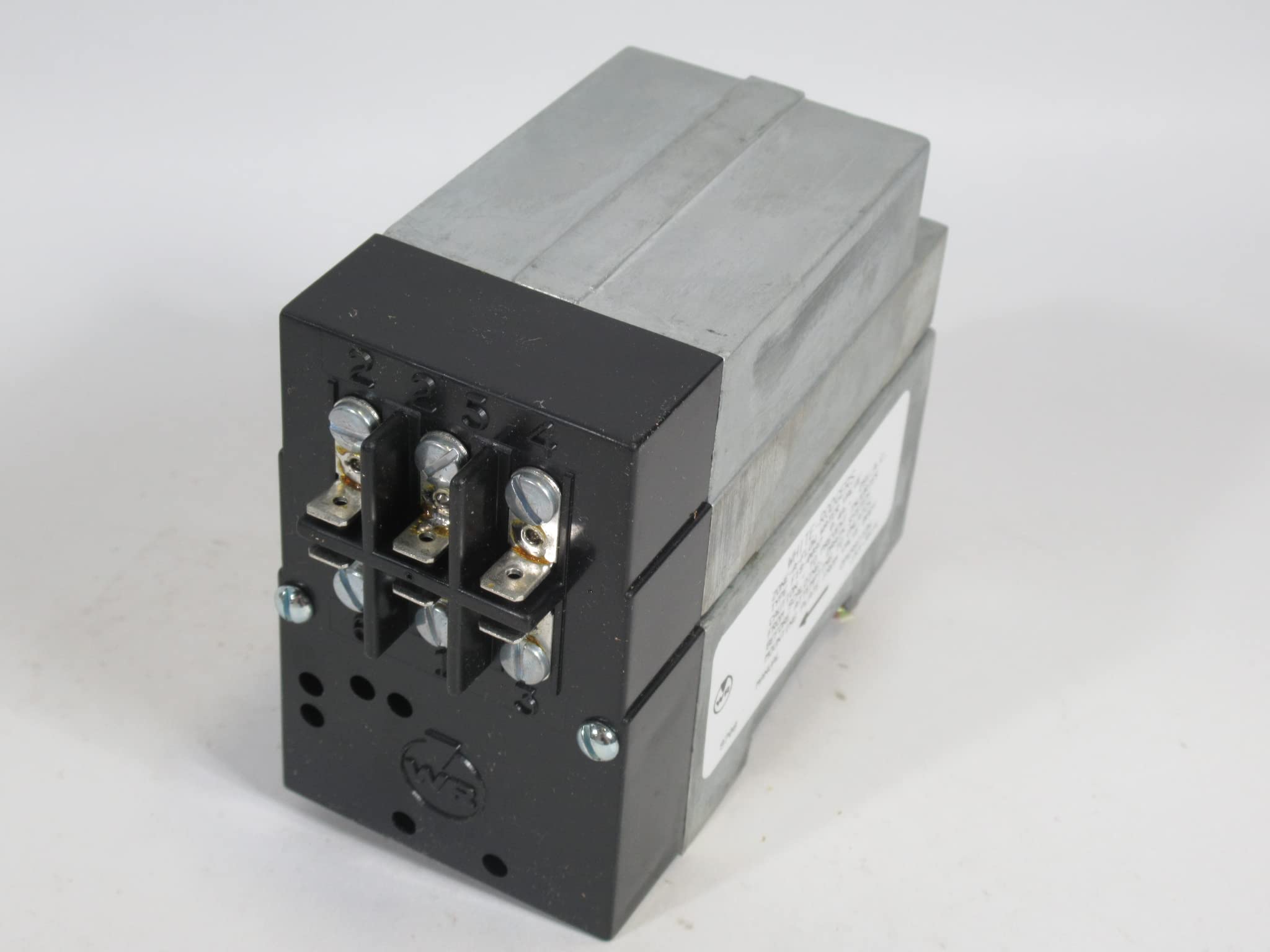

ItemName : White-Rodgers F19-0097 Replacement Motor
ItemPackageDimensions_Height : 22.4 centimeters
ItemPackageDimensions_Length : 7.2 centimeters
ItemPackageDimensions_Width : 13.7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electric-motor-controls
Manufacturer : White Rodgers
Material : Copper
Material1 : Metal
Material2 : Plastic
ModelNumber : F19-0097
NumberOfItems : 1
PartNumber : F19-0097
ProductDescription : Description of the interface to the wiring area

MPG Port (The MPG interface is a three row DB15 interface.)
TX: Serial port sending pin
5V: 5V power pin
A+: encoder A+
B+: encoder B+
X: X axis select pin
RX: Serial port receiving pin
0V: COM ground
A-: encoder A-
B-: encoder B-
Y: Y axis select pin
Z: Z axis select pin
A: A axis select pin
100: X100 rate select pin
10: X10 rate select pin
EP: Estop

Ethernet port
Through the port, the controller can be connected to the computer. The controller supports both router mode and network cable direct connection mode.

Input interface(DB9 interface)
COM+: Common+, External supply 24V
IN2: INPUT PIN2
IN4: INPUT PIN4
IN6: INPUT PIN6
COM-: Common terminal-
IN3: INPUT PIN3
IN5: INPUT PIN5
IN7: INPUT PIN7

ESTOP input port
The interface form is an XH2P terminal. The specific definition is marked on the shell, which is defined as COM -/IN1 respectively. When using, connect the two terminals of the emergency stop switch to COM - and IN respectively.

Spindle Port
COM-: Common terminal-
OUT1: Output PIN1
VSO: Spindle speed regulation output, output 0-10V

Relay Control Port
The relay output interface is also in the form of XH3P interface, which is defined as COM -/OUT2/OUT3. It can be connected with two relays, which can output the ground opening signal and the maximum absorption current is 50mA. If a relay with a control current of more than 50mA is used, an external amplifier circuit is required.

Power input port
Power IN (+-) is marked on the silk screen of the housing. The power supply voltage range is 12V-36V, and 24V is strongly recommended.

Stepper motor port
Each axis is a 4PIN terminal, defined as A+A - B+B -, which is respectively connected to A+A - B+B - of the stepper motor.
ProductSiteLaunchDate : 2010-06-05T12:27:15.807Z
Size : 3 HP Max., 200/240 V, Single or Three Phase Input
SpecificationMet : nema
StreetDate : 2017-06-14T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26101200
Voltage : 24 volts
WebsiteShippingWeight : 4 pounds
