Specification
Brand : Parluna
BulletPoint1 : The controller can drive the DLDC motor with HALL or without HALL
BulletPoint2 : WS55-220 is a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC
BulletPoint3 : This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc
BulletPoint4 : The driver is based on advanced technology and be provided with high speed, high , low noise, low vibration, over current , overload , less phase line. , phase line short , alarm output, speed output,
BulletPoint5 : The driver is based on advanced technology and be provided with high speed, high , low noise, low vibration, over current , overload , less phase line. , phase line short , alarm output, speed output,
ConnectorType : Auxiliary
CurrentRating : 1.5 amps
ExternallyAssignedProductIdentifier : 8334151988989
ExternallyAssignedProductIdentifier1 : 782948073185
ExternallyAssignedProductIdentifier2 : 0782948073185
FinishType : Adhesive
FinishType1 : Finish
FinishType2 : Finish
FinishType3 : Finish
FinishType4 : Finish
FinishType5 : Finish
IncludedComponents : Variable Frequency Drive
IncludedComponents1 : inc
IncludedComponents2 : inc
IncludedComponents3 : inc
IncludedComponents4 : inc
IncludedComponents5 : inc
InputVoltage : 25 volts

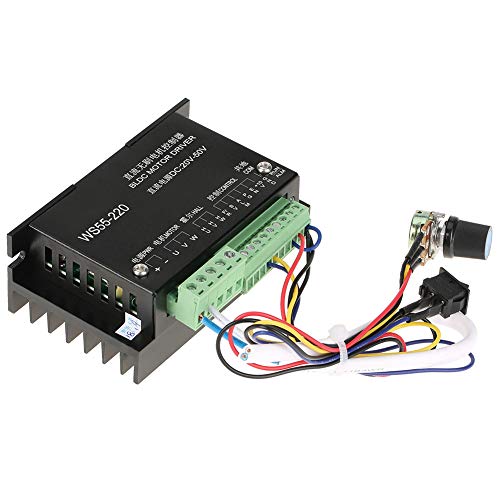

ItemName : WS55-220 BLDC Motor Driver, Brushless DC Motor Driver, with Cable CNC Brushless Spindle BLDC Motor Driver Controller for Electric Power Tools
ItemPackageDimensions_Height : 15 centimeters
ItemPackageDimensions_Length : 4.1 centimeters
ItemPackageDimensions_Width : 10.3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electric-motor-controls
Manufacturer : Parluna
Material : copper
ModelName : AT2 1500X
ModelNumber : Parluna0heiwbcum4
NumberOfItems : 1
NumberOfPorts : 3
PartNumber : Parluna0heiwbcum4
PeakOutputPowerWatts : 1500
PowerSourceType : PowerSource
ProductDescription : Specification:
Features:
WS55-220 is a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC.
The controller can drive the DLDC motor with HALL or without HALL.
The driver is based on advanced technology and be provided with high speed, high , low noise, low vibration, over current protection, overload protection, less phase line. protection, phase line short protection, alarm output, speed signal output, positive negative rotation control etc.
This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc.
External potentiometer control/external voltage control.
With overvoltage protection, over-current protection, locked-rotor protection.
Specifications:
Rated voltage: 20 to 50 VDC
Rated current: 12A
Current limiting: 15A
Maximum speed: 20000RPM( the specific speed depends on the motor itself and load)
Storage temperature: -20℃~+65℃
Usage environment: Avoid direct contact with dust, fumes and corrosive gases
Temperature: 0-45℃
Humidity: < 80%, no frost, frost free
Shock: 5.9m/S2 Maximum
Storage humidity: 0~95%
Size: Approx. 9.5 x 6 x 3.5cm / 3.74 x 2.36 x 1.38inch
Weight: 258g
Detail:
1.Two modes of speed regulation:
External potentiometer: through this potentiometer speed regulation;
External voltage: external 10VDC voltage speed regulation;
Note: The two speed regulation can not be used simultaneously
2. Speed output PG signal: There is a 5v- pulse output between the port and the ground.
The output frequency is set to P (Hz), the motor class logarithm is N, and the speed is F (RPM), then the output speed frequency is P=F*N/60.
3. Alarm output ALM signal:There is an 5V alarm pulse output between the port and the ground.
4. Positive inversion function:
F/R:Fiddle the toggle switch on the corresponding side, the motor steering direction can be changed. For the toggle switch, the white part is up and down, then twang it up and down. For the toggle switch, the white part is horizontal, and the twang horizontally.
5. Start-stop (two control modes):
1. External switch EN: Transfer through switch.
2. Side toggle switch EN: for the toggle switch, the white part is up and down, then down for the start; for the toggle switch, the white part is horizontal, then dial to start
Note: You can only turn one control at the same time, one of the switches is closed, and the other one is valid.
6. Locked-rotor protection:If the motor stops working, switch on the power again to start.
7. Power light: Green light: power on and off
8. Status light: Red light: two flashes in standby time, after starting, extinguish.
9. Insulation resistance: >100M at ambient temperature and atmospheric pressure
10. Insulation strength: At normal temperature and pressure, 0.5KV, 1 minutes
Package included:
1 x Motor Driver Controller with cable
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.


ProductSiteLaunchDate : 2020-09-17T12:48:32.350Z
RecommendedUsesForProduct : Workshop, Factory, Construction, Compressor, Grinder, Mixer, Ventilator, Slitter, Conveyor, Treadmills, Centrifuger, Elevator, Lathe, Extruder, CNC router, Boat, Recreational Vehicle, Pump
Size : 3 hp 2.2 kW
Style : Unique
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26111500
Voltage : 48 volts
Wattage : 2.2 kilowatts
