Specification
Brand : Midzoo

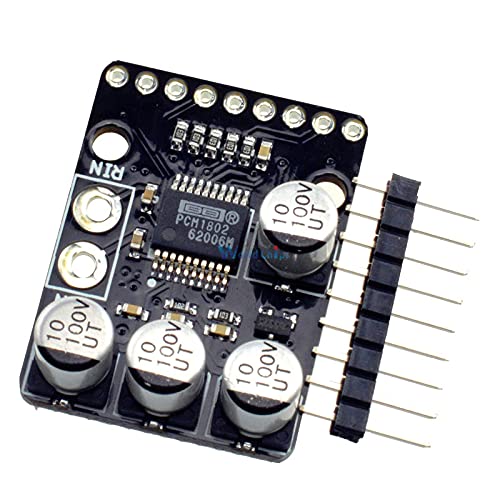

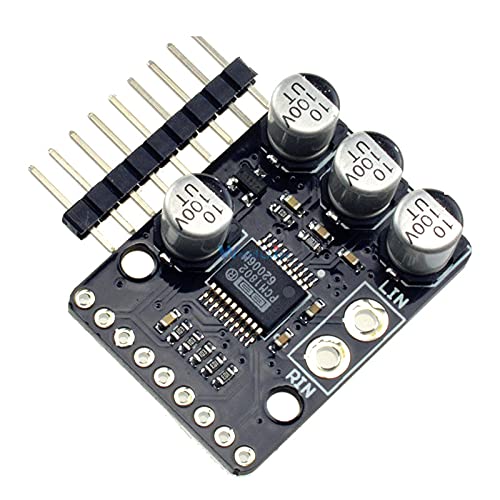

BulletPoint : PCM1802 Audio Stereo A/D Converter ADC Decoder 24bit 96kHz Digital PCM AV Amplifier Player Board ANALOG-INPUT Module 3.3V/5V
BulletPoint1 : [Easy Installation] Compact and small sizelevel conversion module that is easy to carry and install.
BulletPoint2 : [Widely Applicable] Professional level converter for TP240610 240141 280121 320121 Level Shifter. Power supply to downstream devices with I2C, MDIO, and SPI interface types.
BulletPoint3 : [Accurate and High accuracy module design with 800kHz I2C speed and 20MHz SPI and MDIO speed. Ensures stable performance.
BulletPoint4 : [Premium Quality] Premium PCB material production for total phase logic level shifting. Provides powerful performance.
BulletPoint5 : [Versatile Connector] Connects to devices through the IDC10 x4 connector. Supports level voltages of 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V.
ExternallyAssignedProductIdentifier : 4862440121532
IncludedComponents : No
InterfaceType : Component
ItemName : PCM1802 Audio Stereo A/D Converter ADC Decoder 24bit 96kHz Digital PCM AV Amplifier Player Board Analog-Input Module 3.3V/5V
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : signal-converters
Manufacturer : Midzoo
Material : fabric
MaximumSupplyVoltage : 5 volts
MinimumSupplyVoltage : 3.3 volts_of_direct_current
ModelNumber : Yoidesuum2nt08pyv
MountingType : PCB Mount
NumberOfChannels : 2
NumberOfItems : 1
NumberOfPins : 10
PartNumber : MiMODULE-12811
ProductDescription :
Descriptions:
PCM1802
SINGLE-ENDED ANALOG-INPUT
24-BIT, 96-kHz STEREO A/D CONVERTER
· 24-Bit Delta-Sigma Stereo A/D Converter · AV Amplifier Receiver
· Single-Ended Voltage Input: 3 V p-p · MD Player
· Antialiasing Filter Included · CD Recorder
· Oversampling Decimation Filter · Multitrack Receiver
- Oversampling Frequency: ´64, ´128 · Electric Musical Instrument
- Pass-Band Ripple: ±0.05 dB
- Stop-Band Attenuation: -65 dB
The PCM1802 is a high-performance, low-cost,
- On-Chip High-Pass Filter (HPF): 0.84 Hz single-chip stereo analog-to-digital converter with (44.1 kHz) single-ended analog voltage input. The PCM1802
· High Performance uses a delta-sigma modulator with 64- or 128-times
- THD+N: 96 dB (Typical) oversampling, and includes a digital decimation filter
and high-pass filter (HPF), which removes the dc
- SNR: 105 dB (Typical) component of the input signal. For various appli-
- Dynamic Range: 105 dB (Typical) cations, the PCM1802 supports master and slave
· PCM Audio Interface modes and four data formats in serial interface.
The PCM1802 is suitable for a wide variety of cost-
- Master/Slave Mode Selectable sensitive consumer applications where good perform-
- Data Formats: 24-Bit Left-Justified; 24-Bit ance, 5-V analog supply, and 3.3-V digital supply
I2S; 20-, 24-Bit Right-Justified operation is required. The PCM1802 is fabricated
· Sampling Rate: 16 kHz to 96 kHz using a highly advanced CMOS process and is available in the DB 20-pin SSOP package.
· System Clock: 256 fS, 384 fS, 512 fS, 768 fS
· Dual Power Supplies: 5 V for Analog, 3.3 V for Digital
Package inculde:
1 x PCM1802 Audio Stereo A/D Converter ADC Decoder 24bit 96kHz Amplifier Player Board ANALOG-INPUT Module
