Specification
Brand : FOCSTOL
BulletPoint1 : Package Include-----Totally 10pcs/box: 9pcs core drill bits: Diameter 1/4''(6mm),5/16''(8mm),3/8''(10mm),4/5''(20mm),1''(25mm),1-1/8''(28mm),1-1/4''(32mm),1-3/8''(35mm),2''(50mm); 1pc 1-3/8''(35mm) beveling chamfer bit
BulletPoint2 : Application-----Diamond Core Drill Bits for drilling holes. Beveling chamfer bit are designed to shape, enlarge and round bevel existing holes in Porcelain Ceramic Tile Marble Granite, etc. Dry or Wet use. Wet using will prolong the working life and get better drilling effect
BulletPoint3 : Cooling Wax and U-grooves Design-----The inside of 6-10mm drill bits are filled with cooling wax, help heat dissipation and chip evacuation. 4pcs U-grooves above 20mm, good for heat dissipation and debris removal, with higher efficiency and better performance
BulletPoint4 : High Performance-----High-quality Diamond Grain and Vacuum Brazing Technology provides much longer working life, fast and smooth drlling, durable and sturdy
BulletPoint5 : Recommended Machine-----Corded Drill, Cordless Drill, Benchtop Drill. Use electric hand drill: Recommended speed not less than 2000RPM; Faster the RPM, longer the drill bit's working life. When use Angle Grinder, please install angle grinder drill chuck
Color : Red
CuttingAngleString : 45.0 degrees
ExternallyAssignedProductIdentifier1 : 812763027640
ExternallyAssignedProductIdentifier2 : 0812763027640
ExternallyAssignedProductIdentifier3 : 00812763027640
FinishType : Diamond
GpsrSafetyAttestation : 1
IncludedComponents : Adapter
ItemName : Diamond Core Drill Bits Set - FOCSTOL 10pcs (6/8/10/20/25/28/32/35/50mm+35mm Beveling Chamfer Bit) Hole Saw Kit with Triangle Shank for Porcelain Tile Ceramic Granite Marble
ItemPackageDimensions_Height : 23.5966 centimeters
ItemPackageDimensions_Length : 10.8966 centimeters
ItemPackageDimensions_Width : 20.8026 centimeters
ItemPackageQuantity : 10
ItemTypeKeyword : core-drill-bits
Manufacturer : FOCSTOL
Material : Diamond
MeasurementSystem : Metric
ModelName : HEX375
ModelNumber : HEX375_N
NumberOfBoxes : 1
NumberOfFlutes : 2
NumberOfItems : 10
NumberOfPieces : 10
PackageLevel : unit
PartNumber : F2-B42405L07
ProductDescription : ABOUT PRODUCTION:

Item Name:
Vacuum Brazed Diamond Dry/Wet Drilling Core Bits Kit 10pcs

Quantity:
10-Pieces Core Drill bits set totally:
7-pieces Drill Bits: 6/8/10/25/35/50/65mm(1/4",5/16",3/8", 1", 1-3/8",2",2-1/2")
1-Piece milling bits: 10mm(3/8")
1-Piece chamfer bits: 50mm(2")
1-Piece adapter: 5/8"-11 to SDS adapter

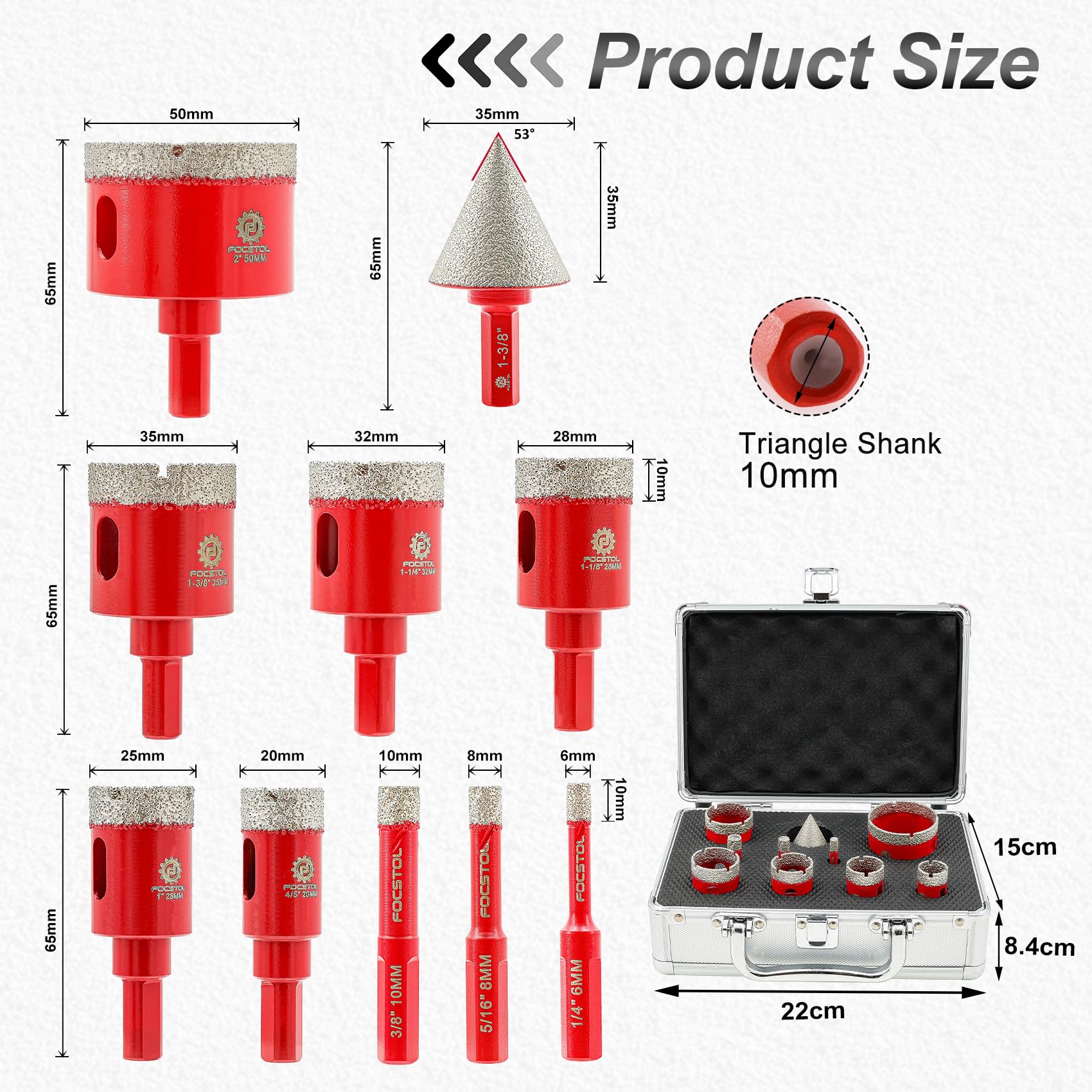

Specification:
Core Drill Bits:
Core bits: Diameter 6-65mm,35mm Max working depth,10mm Diamond height, Total Length 60mm,5/8"-11 thread
Milling bit： Diameter 10mm，50mm Max working depth,Total Length 65mm,5/8"-11 thread
Chamfer bit： Diameter 50mm，Total Length 55mm, 5/8"-11 thread

**The Thread of Core bits are 5/8-Inch-11, Recommended Machine: angle grinder**
If you fit them on drill or other machine, you need an adapter, such as SDS, hex, Round plus shank...

Application :
Dry/wet drilling for porcelain tile, granite, marble, stone, Masonry, brick...
Feature:
1.Fast and Smooth drilling
2. Long lifetime
3. Less Chipping
4. Minimizing any breakage
5. Less loss of material
6. Less heat generation
7. Better finish quality
================THE END================

Operation Tips for Vacuum Brazed Diamond Drill core bits
1.Do not use these drill bits with hammer mode
2.Only fit these drill bits on a cord drill, not cordless drill(no enough power)
3.Only for tile drilling not recommend for the material behind the tile
4.For horizontal drilling,just give a gentle pressure
For vertical drilling, the weight of the machine will give sufficient pressure
5.Start drilling as per following instructions:
1) Place the drill at a 45 degree angle
2) Drilling till the hole start to form
3) Bring the drill up into upright position
4) Continue to drill and swaying the machine along a circle

ProductSiteLaunchDate : 2023-05-22T06:49:00.900Z
Size : KIT8(Triangle)
Style : Compact
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SurfaceRecommendation : Ceramic,Porcelain
UnitCount : 1
UnspscCode : 27112800
