Cart 2 india

Specification
Brand : Undercarriage
BulletPoint1 : 1.→Multiple Choices:There Have Five Hydraulic Quick Coupling Supply Which Include The 1/2",1/4",3/4",3/4"SAE,3/8" ISO16028 Hydraulic Quick Connect Couplers.Please Select On the Size Name Option
BulletPoint2 : 2.→New Valve Design and structure. It Can resistance damage from high flow and the pressure of impulse that providing advanced performance. Steel construction, zinc plated with yellow chromate finish. hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock. This Anti –Blowout Nitrile/PTFE bonded seal is designed to prevent blow-out or damage during severe service conditions
BulletPoint3 : 3.→Sleeve locking mechanism:Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground. Sleeve mechanism is designed to prevent dirt from entering the internal mechanism and thus causing faulty operation when connecting or disconnecting. The sleeve covers the retaining ring and also incorporates a dust seal in the spring area.
BulletPoint4 : 4.→Durability: Durable ball-locking mechanism assures reliable connections every time. A large number of locking balls distributes the work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life. These products are not not to be used as swivels. Rotation under pressure will result in excessive and premature wear. LX-FF Series couplings employ flush valving when connecting or disconnecting.
BulletPoint5 : 5.→Interchangeable With:LX-FF Series conforms to standard of ISO16028. Compatible with Parker FE Series/ Safeway FFE49 Series/ Faster FFH Series/ Eaton Aeroquip FD89 Series/ Snap Tite 74 Series/ Stucchi FIRG Series/ Dixon HT Series/ DNP PLT4 Series/ Tomco FE Series/
Color : Yellow
Color1 : Silver
Color2 : Red
ConnectorType : Cap
ExteriorFinish : Chrome
ExternallyAssignedProductIdentifier1 : 717839784758
ExternallyAssignedProductIdentifier2 : 0717839784758
ExternallyAssignedProductIdentifier3 : 0804595124055
ExternallyAssignedProductIdentifier4 : 0804595132913
ExternallyAssignedProductIdentifier5 : 00804595132913
ExternallyAssignedProductIdentifier6 : 00804595124055
FitType : Vehicle Specific
GpsrSafetyAttestation : 1
IncludedComponents : Item

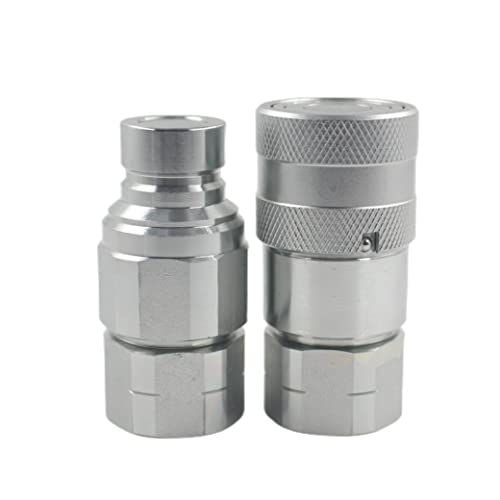

ItemName : 3/4'' SAE-12 UNF1-1/16 Skid Steer Flat Face Hydraulic Quick Connect Coupling/Coupler, 1/2 Body W/Dust Cap
ItemPackageDimensions_Height : 14.4018 centimeters
ItemPackageDimensions_Length : 4.5974 centimeters
ItemPackageDimensions_Width : 10.3886 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-couplings
Manufacturer : SongQiao
Material : Steel
Material1 : Polyvinyl Chloride
Material2 : Alloy Steel
ModelName : Long Push Coupling
ModelNumber : SAE3/4
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : SAE3/4
ProductDescription : Applications: The LX-FF ISO16028 Carbon Steel Hydraulic Quick Connect Tractor Coupling Series Brings To The Industry A Proven Design For Use On Construction Equipment, Forestry Equipment. Agricultural Machinery, Oil tools, Steel Mill Machinery, And Other Demanding Hydraulic Applications.
The LX-FF Series Of Hydraulic Quick Coupler Are Interchangeable With All ISO 16028 Series Including Ball Seat Valve, Poppet Seal, Push-Pull Couplings.
ISO Body Size: 1/2''.

PortThread:3/4''SAE
Quantity:1-Set
Included:
~ 1-Male Coupler
~ 1-Female Coupler
Interchangeable With:

Parker FE Series
---Male: FF12M-12S
Female: FF12F-12S

Safeway FFE49 Series
---Male: FEM-502-12FO
---Female: FEM-501-12FO

Faster FFH Series
---Male:FFE491-4-12
---Female:FFE495-4-12

Eaton Aeroquip FD89 Series
---Male: FFH08 34SAE M
Female: FFH08 34SAE F

Snap Tite 74 Series
---Male: FD89-1004-12-08
---Female: FD89-1005-12-08

Stucchi FIRG Series
---Male:74N8-12EM
---Female:74C8-12EM

Dixon HT Series
---Male: 800804009
---Female: 800804008

DNP PLT4 Series
---Male: HT4OF6
---Female: 4HTOF6

Tomco FE Series
---Male: FF-HPG-08-12N-SAE
---Female: FF-HPG-08-12C-SAE

---Male: EP4-12
---Female: EC4-12
Compatible With:

Bobcat (2001 or older): 7753, 773, 863, 873, 963
GEHL: 4640, 4840, 5640, 6640
Volvo: MC90, MC110
ASV: RC100
ProductSiteLaunchDate : 2021-04-22T16:08:44.754Z
Size : 1-Set 3/4 SAE
Style : Single
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40141600
