Specification
Brand : Jectse
BulletPoint1 : STRUCTURE: The product adopts standard modular structure and rail installation.
BulletPoint2 : LCD DISPLAY: The product uses LCD to display Chinese voltage value, fault status, parameters and so on.
BulletPoint3 : FUNCTION: Real-time monitoring of motor over-current, under-current, phase-gap and voltage unbalance faults.
BulletPoint4 : ADJUSTABLE: Over-voltage, under-voltage value adjustable, action time adjustable, more flexible use.Voltage unbalance rate can be adjusted, time can be adjusted, simple and easy to use.
BulletPoint5 : WIDELY USED: Products are widely used in pumps, cranes, elevators, machine tools and other equipment.
ConnectorType : Quick Connect
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier1 : 0738585532882
ExternallyAssignedProductIdentifier2 : 738585532882
ExternallyAssignedProductIdentifier3 : 00649075013623

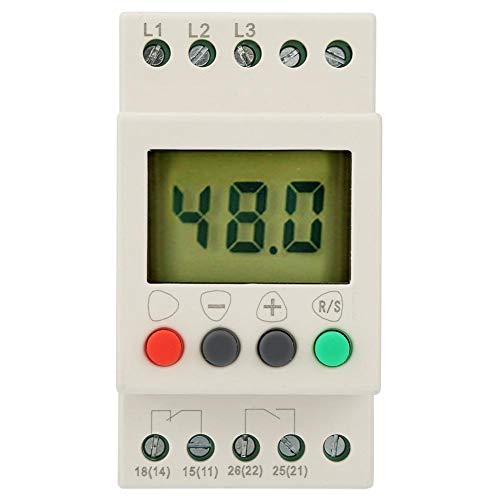

ItemName : 3 Phase Sequence Relay,380V AC 50Hz Voltage Over Under Voltage Phase Failure Relay,JVR 1000 LCD Rail Voltage Phase Loss Protector Monitoring Relay
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 8.5 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : current-monitoring-relays
Manufacturer : Jectse
Material : copper
MaximumSwitchingVoltage : 240 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : 1SVR730794R3300
MountingType : Surface Mount
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Automatic
PartNumber : Jectserm3ohx7kfv
ProductDescription :

380V 3 Phase Sequence Protector,50Hz Voltage Protective Relay ,LCD Motor Display Monitoring Relay,Voltage Unbalance Rate and Action Time Adjustable,for Pumps, Cranes, Elevators, Machine Tools

Specification:

Model: JVR 1000

Monitoring Circuits L1, L2, L3

Rated voltage 380V AC, 50Hz

Functions: Overvoltage, Undervoltage, Unbalanced Voltage, Staggered Phase, Staggered Phase, Fault Recording

Overvoltage regulation range: 390-490V

Undervoltage regulation range: 300-370V

Overvoltage and undervoltage recovery: 10V

Over-undervoltage action time: 0.1-25s

Three-phase unbalance regulation range: 5%-29%

Three-phase unbalanced time: 1-25s

Phase missing action time: 1s

Staggered action time: instantaneous

Display mode: Chinese LCD display each action state

capacity: 6A 250V AC (resistive)

Dimensions (length * width * depth): 80*40*54mm / 3.1*1.6*2.1in

Installation method: 35mm rail

Weight: 126g / 4.4oz

Package list:

1 * Phase sequence protector

ProductSiteLaunchDate : 2019-11-22T09:52:48.314Z
StreetDate : 2018-05-08T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40150000
Voltage : 600 volts
