Specification
AgeRangeDescription : adult
Brand : Generic
BulletPoint : Oscilloscope Probes
BulletPoint1 : Specifically designed for inspecting simple features, this probe stylus enables direct and unobstructed with the surface being measured, allowing for efficient and effective inspections.
BulletPoint2 : this stylus has a long life and is resistant to wear caused by abrasive materials.
BulletPoint3 : Made of high-quality materials, durable
BulletPoint4 : Strict quality control standards for construction and testing.
BulletPoint5 : Stable performance and high reliability.
Color : M2.5xd3xl30
ExternallyAssignedProductIdentifier : 7798526544841

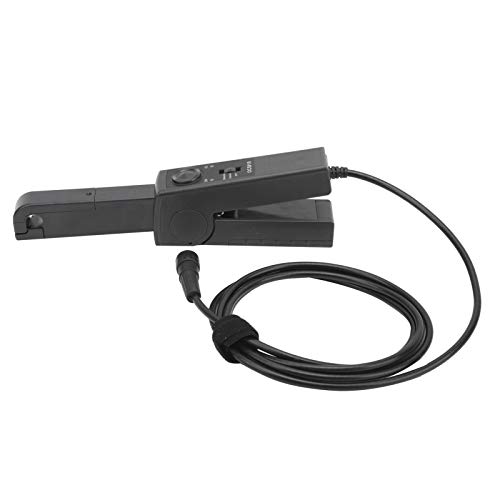

ItemName : Current Probe, Clamp Current Probe, No Need to Disconnect The Circuit for Laboratory Home
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : current-probes
Manufacturer : Generic
Material : Metal
MeasurementAccuracy : 1
ModelName : CAARLA
ModelNumber : CAARLA
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Generick4tafwic65
ProductDescription : Specification:
Item Type: Clip-On Current Probe
Material: ABS
Length: Approx. 230mm / 9.1in
Range 100mV/A 10mV/A
Current Range 50mA-10A 10A-100A
Percent Error of Output 3%±5mV 500m-10A Value: 4%±500uV10-100A Value: 15% Maximum At 100A
Frequency Range (-3dB) DC-100KHZ
Phase DC-65HZ: DC-65HZ:
Load Impedance ≥1MΩ and ≤100PF
Insertion Impedance 0.01Ω
Noise 6mV 600uV
Conversion Rate 0.3V/uS 20mV/US
Rise/Fall Time 3uS
Measurement Condition 23℃±5℃, 20-75%, sinusoidal frequency 48-65HZ, external magnetic field
Power Supply 1X6F22 9V dry battery (not included)
Low Battery Indicator When >6.5V, the LED is green
Overload Indication The red LED indicates that the measurement current is too large and the range needs to be changed

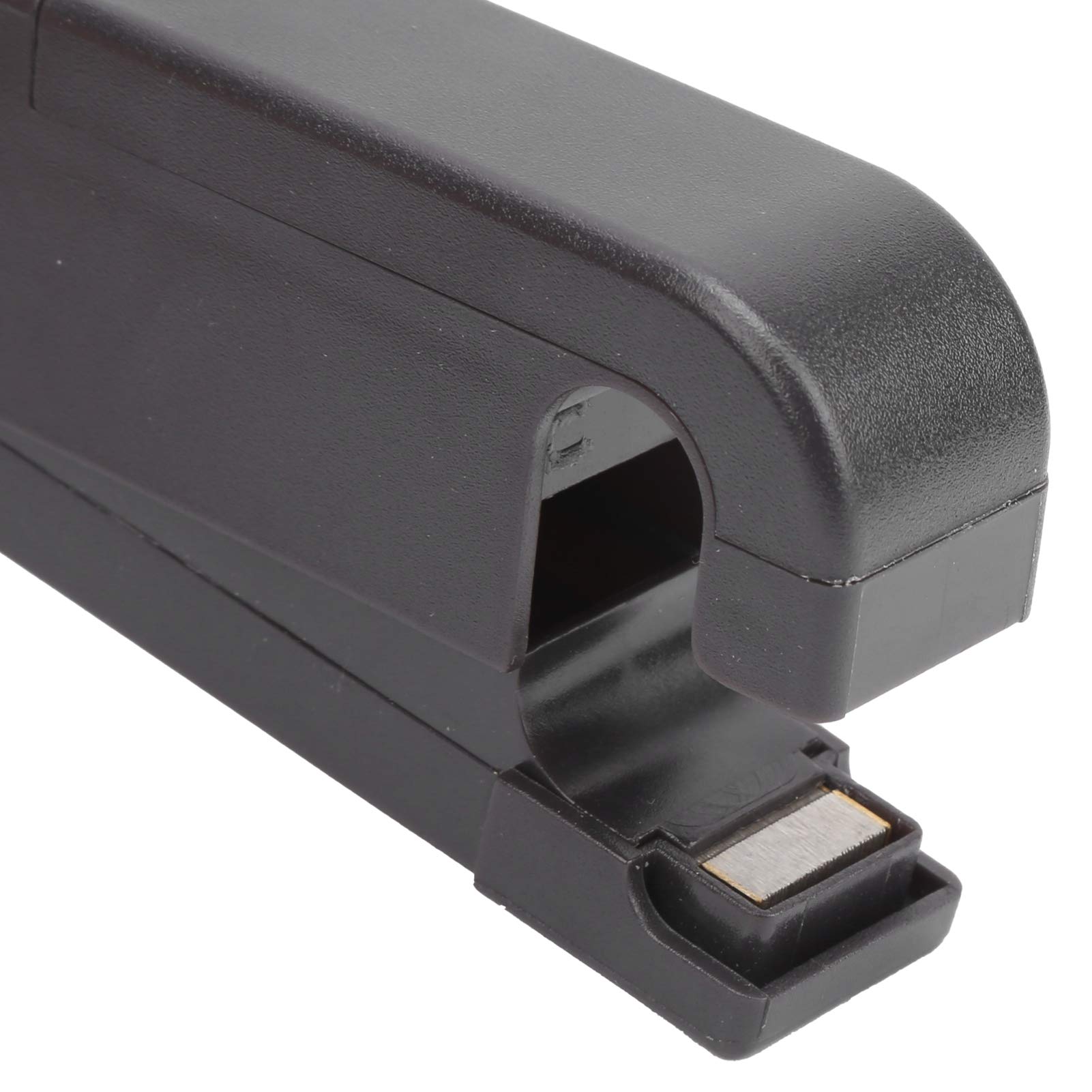

Maximum Insertion in Jaw Diameter 11.8mm / 0.5in
Output 2m coaxial cable, terminal with insulated BNC socket
Operating Temperature 0-50℃
Storage Humidity -3-80℃
Operating Relative Humidity 10℃-30℃: 85±5% relative humidity (non-condensing)40℃-50℃: 45±5% Relative Humidity (Non-Condensing)
Operating Height 0-2000m / 0-6561.7ft How to Use:
1. Install the battery (this product does not have a battery) to start the current test clamp, and move the switch to the 100mV/A gear.
2. Check that the battery green indicator is on (ON is on, OL is off).
3. Connect the current clamp to the oscilloscope.
4. When the current clamp is closed, but the wire is not clamped. Select the highest sensitivity on the oscilloscope (for example, 1mV/cm, current clamp to select 100mV/A).
5. When the current clamp is closed and there is no conductor, select the highest sensitivity on the oscilloscope and the current clamp (for example: 1mV/cm) and then turn the current clamp zeroing , the oscilloscope phase is reset, so that the oscilloscope can adapt to what it is doing position).
6. Choose the current clamp and oscilloscope to test the sensitivity
7. Choose the most suitable for connecting the current clamp to the oscilloscope.
8. The current clamp clamps the current conductor to be measured and starts the measurement.

Package List:
1 x Clip-On Current Probe
1 x Manual

Note:
1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real as standard.


ProductSiteLaunchDate : 2024-08-05T12:00:14.782Z
Size : One Size
Style : Simple
UnitCount : 1
UnspscCode : 41113600
