Specification
AgeRangeDescription : adult
Brand : EITAI
BulletPoint1 : With English customer service and technical support, we offer a smooth and secure user experience.
BulletPoint2 : 【Comprehensive Power Quality Analysis】Measures 4 voltage & 4 current channels with true RMS, harmonics up to 50th order, peak factors, and short-term flicker (PST). Captures transient events (surges, sags, interruptions) and stores up to 150 waveforms for troubleshooting.
BulletPoint3 : 【High-Accuracy & Safety Compliance】The Power Quality Analyzer meets IEC 61010 CAT IV 600V/CAT III 1000V standards with ±1% voltage/current accuracy. Built-in safety warnings, double insulation, and ground fault protection for secure operation.
BulletPoint4 : 【Long-Term Monitoring & Alerts】Records trend data for 300 days (20 parameters, 1-minute intervals) and triggers alarms for overvoltage, imbalance, or harmonic overload (12,800 logs). Supports motor starting current analysis with 100-second capture for energy efficiency optimization.

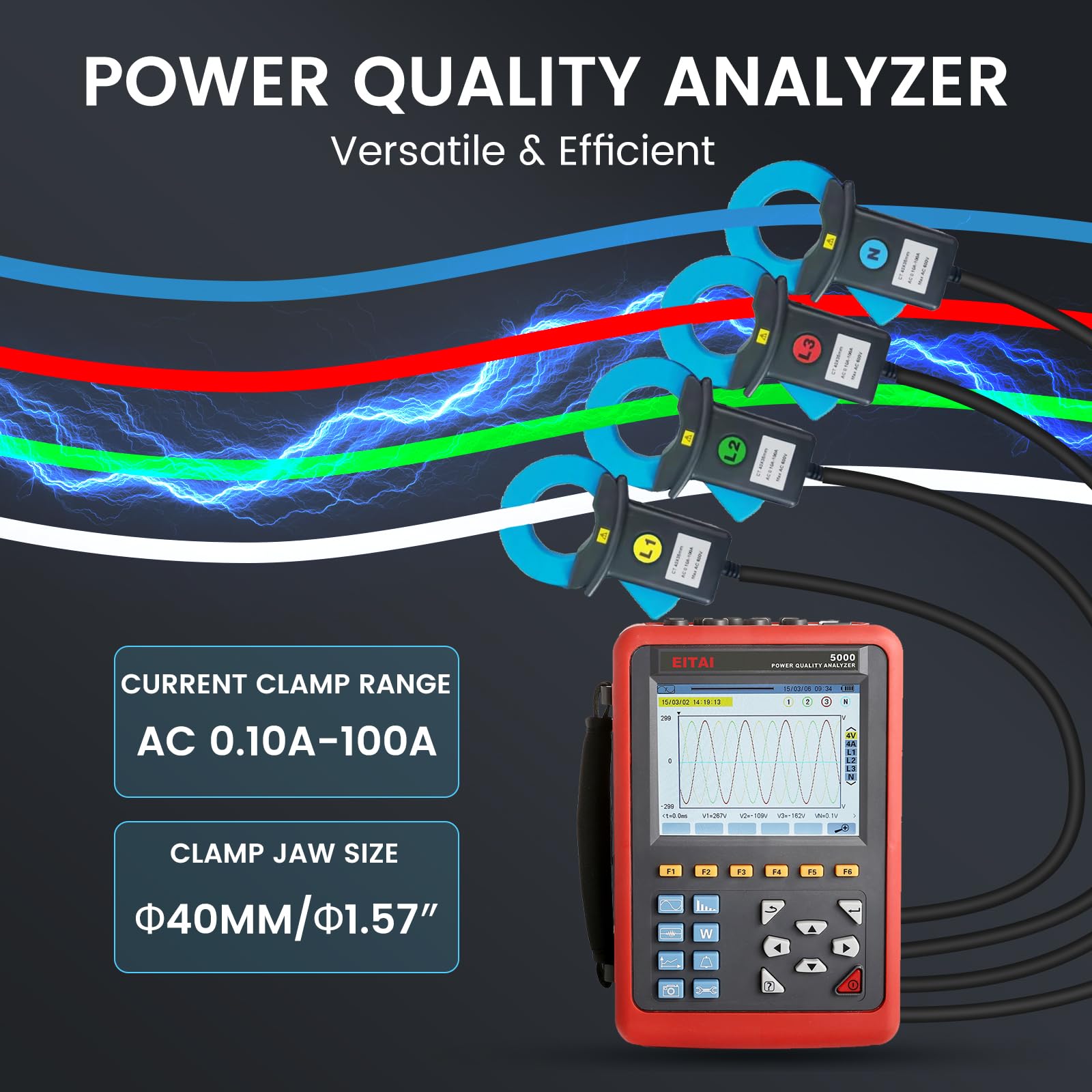

BulletPoint5 : 【User-Friendly & Portable Design】The Power Quality Logger equipped with 5.6-inch backlight color LCD with English menus, and lightweight shockproof housing. This bundle includes 4 pcs 040B current clamps (Ф40mm/1.57", AC 0.1A-100A) and 3m test leads for field use.
BulletPoint6 : 【Data Export & Professional Software】Transfers data via USB to PC software for real-time analysis, report generation, and compliance with power quality standards (IEEE, IEC). Equipped with SD card stores screenshots, waveforms, and energy consumption summaries.
BulletPoint7 : 【Long-duration operating system】Powered by a lithium-ion battery (9.6V/4500mAh) for continuous operation up to 8 hours. When used with an AC adapter, it supports charging while in operation.
Color : Black, Red
ExternallyAssignedProductIdentifier : 7807777115004
ExternallyAssignedProductIdentifier1 : 0085353753667
ExternallyAssignedProductIdentifier2 : 085353753667
IncludedComponents : 1*tester 4*clamp sensors 3*test wires 1*clip 1*hook 1*USB cable 1*carry bag
ItemName : EITAI5000-040B 3-Phase Power Quality Analyzer, Manufacturer Direct Sales, Multi-Functional Power Quality Logger, with EITAI040B Ф40mm/1.57" 0.1A-100A Current Clamp Sensor 4pcs
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-power-meters
Manufacturer : EITAI
MeasurementAccuracy : ±(1 % + 3dgt)
ModelName : HGBAVVATFK
ModelNumber : EITAI5000-040B-US
NumberOfBoxes : 1
NumberOfItems : 50
PartNumber : EITAI5000-040B-US
PowerSourceType : Battery Powered
ProductDescription :

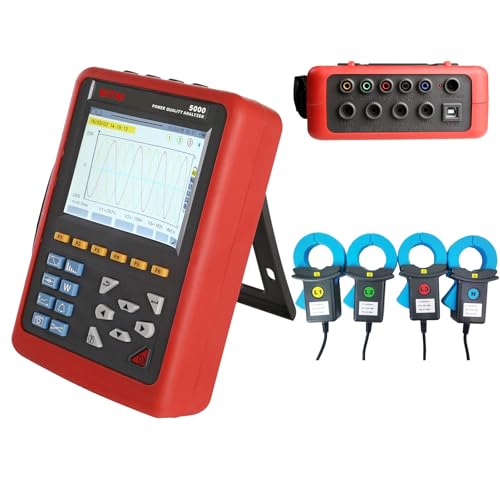

Model: EITAI5000 Power Quality Analyzer with Clamp Current Sensors


Major Functions:
Waveform real-time display (4 channels voltage/4 channels current).
True RMS values of voltages and currents.
The DC components of voltages.
Peak current and voltage values.
Minimum and maximum half-cycle RMS current and voltage values.
Phasor diagram display．
Bar charts show harmonic ratios of current and voltage of each phase.
Total harmonic distortion (THD).
Active, reactive, apparent power, by phase and cumulative.
Transformer K factor.
Power factors (PF) and displacement factors (DPF or COSΦ).
Short-term voltage flicker (PST).
Three phase unbalance (current and voltage).　　


Technical Spec:
Power Supply: Rechargeable lithium battery 9.6V, 4500mAH
Display Mode: LCD color screen, 640dots × 480dots, 5.6 inches
Current Test: ECTR040B: φ40mm；0.10A～100A
Voltage Test: Line voltage: 1.0V ~ 2000V; Phase voltage: 1.0V ~ 1000V
Electricity Energy Parameter: W, VA, var, PF, DPF, cosΦ, tanΦ, Wh, Varh, Vah
Three-Phase Unbalance: Yes
Frequency: 40Hz ～ 70Hz
Start Current Mode: 100 seconds
Harmonic Wave: 0 - 50 times
Peak Value: Yes
Total Harmonic Distortion: Yes, 0 - 50 times, each phase
Phase Diagram Display: automatic
Expert Mode: Yes
Screenshot Capacity: 60pcs
Transient Record Groups: 150groups
Menu Language: English
Voltage Flicker: Yes
Communication Interface: USB
Record: 300 days
Alarm: 40 different types of parameter selection, 12800 group alarm logs
Meter Size: 240mm×170mm×68 mm
Weight: 10.5Kg
Input Resistance: 1MΩ
Safety Standard: IEC 61010 IEC61010-031 IEC61326


Package List:
1*Power Quality Analyzer
4*Flexible coil current clamp
5*Test cables
5*Alligator clips
5*Probes
1*Charger
1*2G Memory card
1*User manual
1*Tool bag

Notes:
*If you encounter difficulties running the disc, please visit the official website listed in the manual to download the accompanying software.
*Please note that the actual color of the product may vary slightly from the photographs due to lighting conditions.

ProductSiteLaunchDate : 2024-08-02T04:42:02.625Z
Size : One Size
Style : Digital
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 43211900
