Specification
AgeRangeDescription : adult
Brand : EITAI
BulletPoint1 : With English customer service and technical support, we offer a smooth and secure user experience.
BulletPoint2 : 【Comprehensive Power Quality Analysis】Measures 4 voltage & 4 current channels with true RMS, harmonics up to 50th order, peak factors, and short-term flicker (PST). Captures transient events (surges, sags, interruptions) and stores up to 150 waveforms for troubleshooting.
BulletPoint3 : 【High-Accuracy & Safety Compliance】The Power Quality Analyzer meets IEC 61010 CAT IV 600V/CAT III 1000V standards with ±1% voltage/current accuracy. Built-in safety warnings, double insulation, and ground fault protection for secure operation.
BulletPoint4 : 【Long-Term Monitoring & Alerts】Records trend data for 300 days (20 parameters, 1-minute intervals) and triggers alarms for overvoltage, imbalance, or harmonic overload (12,800 logs). Supports motor starting current analysis with 100-second capture for energy efficiency optimization.
BulletPoint5 : 【User-Friendly & Portable Design】The Power Quality Logger equipped with 5.6-inch backlight color LCD with English menus, and lightweight shockproof housing. This bundle includes 4 pcs 300F current clamps (AC 10A-6000A, 300mm/11.8”) and 3m test leads for field use.
BulletPoint6 : 【Data Export & Professional Software】Transfers data via USB to PC software for real-time analysis, report generation, and compliance with power quality standards (IEEE, IEC). Equipped with SD card stores screenshots, waveforms, and energy consumption summaries.
BulletPoint7 : 【Long-duration operating system】Powered by a lithium-ion battery (9.6V/4500mAh) for continuous operation up to 8 hours. When used with an AC adapter, it supports charging while in operation.
Color : Black, Red
ExternallyAssignedProductIdentifier : 7807777115004
ExternallyAssignedProductIdentifier1 : 0085353753681
ExternallyAssignedProductIdentifier2 : 085353753681
IncludedComponents : 1*tester 4*flexible sensors 3*test wires 1*clip 1*hook 1*USB cable 1*carry bag

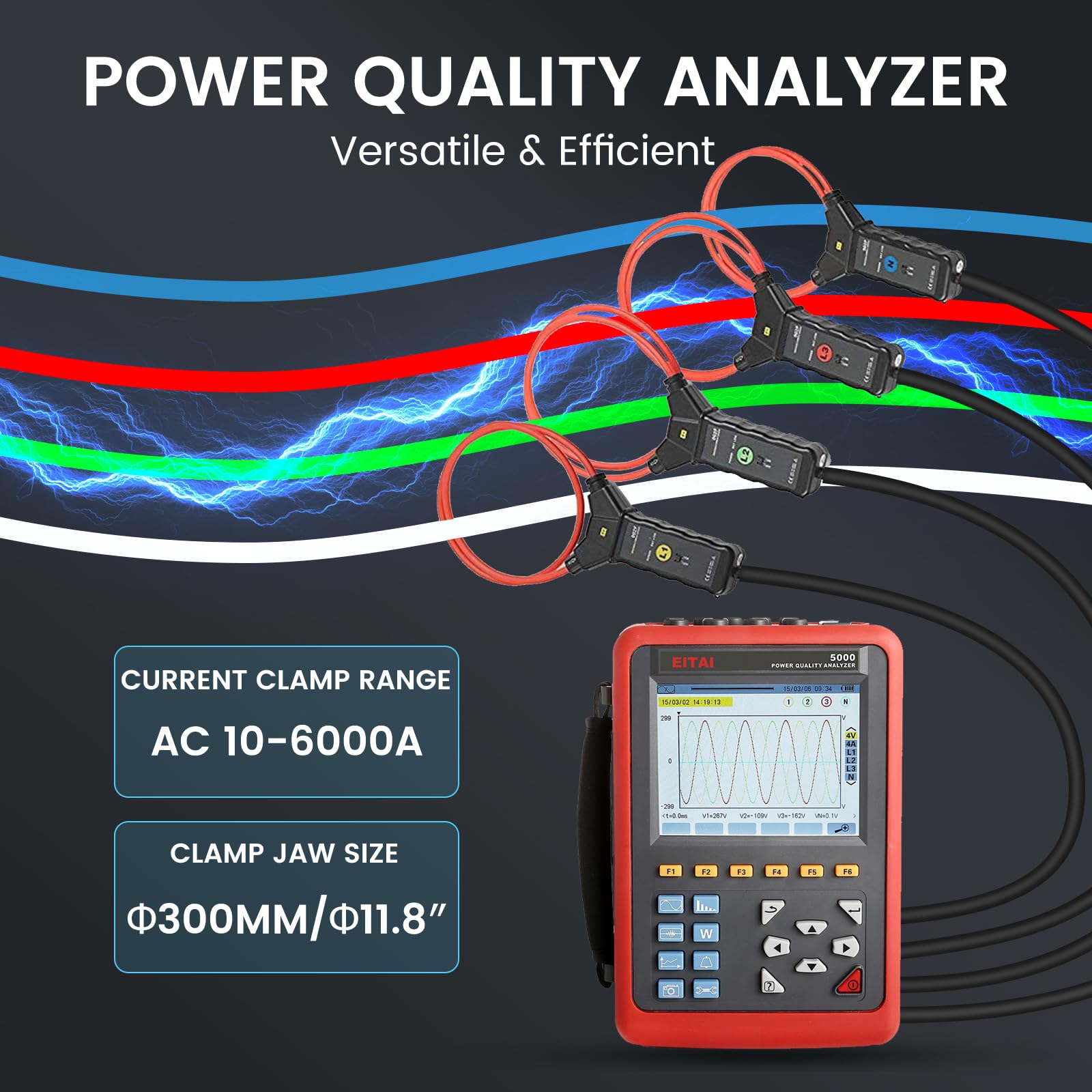

ItemName : EITAI5000-300F 3-Phase Power Quality Analyzer, Manufacturer Direct Sales, Multi-Functional Power Quality Logger, with EITAI300F Ф300mm/11.8" 10A-6000A Flexible Coil Current Clamp Sensor 4pcs
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-power-meters
Manufacturer : EITAI
MeasurementAccuracy : ±(1 % + 3dgt)
ModelName : HGBAVVATFK
ModelNumber : EITAI5000-300F-US
NumberOfBoxes : 1
NumberOfItems : 50
PartNumber : EITAI5000-300F-US
PowerSourceType : Battery Powered
ProductDescription :

Model: EITAI5000 Power Quality Analyzer with Flexible Coil Sensor

Major Functions:

• Waveform real-time display (4 channels voltage/4 channels current).
• True RMS values of voltages and currents.
• The DC components of voltages.
• Peak current and voltage values.
• Minimum and maximum half-cycle RMS current and voltage values.
• Phasor diagram display．
• Bar charts show harmonic ratios of current and voltage of each phase.
• Total harmonic distortion (THD).
• Active, reactive, apparent power, by phase and cumulative.
• Transformer K factor.
• Power factors (PF) and displacement factors (DPF or COSΦ).
• Short-term voltage flicker (PST).
• Three phase unbalance (current and voltage).

Technical Spec:

Power Supply: Rechargeable lithium battery 9.6V, 4500mAH

Display Mode: LCD color screen, 640dots × 480dots, 5.6 inches

Current Test: ECTR300F: φ300mm；10A～6000A

Voltage Test: Line voltage: 1.0V ~ 2000V; Phase voltage: 1.0V ~ 1000V

Electricity Energy Parameter: W, VA, var, PF, DPF, cosΦ, tanΦ, Wh, Varh, Vah

Number of Channels: 4 voltages, 4 currents

Three-Phase Unbalance: Yes

Frequency: 40Hz ～ 70Hz

Start Current Mode: 100 seconds

Harmonic Wave: 0 - 50 times

Peak Value: Yes

Total Harmonic Distortion: Yes, 0 - 50 times, each phase

Phase Diagram Display: automatic

Expert Mode: Yes

Screenshot Capacity: 60pcs

Transient Record Groups: 150groups

Menu Language: English

Voltage Flicker: Yes

Communication Interface: USB

Record: 300 days

Alarm: 40 different types of parameter selection, 12800 group alarm logs

Meter Size: 240mm×170mm×68 mm

Weight: 10.5Kg

Input Resistance: 1MΩ

Safety Standard: IEC 61010 IEC61010-031 IEC61326



Package List:

1*Power Quality Analyzer

4*Flexible coil current clamp

5*Test cables

5*Alligator clips

5*Probes

1*Charger

1*2G Memory card

1*User manual

1*Tool bag



Notes:

*If you encounter difficulties running the disc, please visit the official website listed in the manual to download software.

*Please note that the actual color of the product may vary slightly from the photographs due to lighting conditions.

ProductSiteLaunchDate : 2024-08-02T04:45:02.029Z
Size : One Size
Style : Digital
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41113600
