Specification
Brand : GYZOUKA
BulletPoint1 : [Compact Design] Small size and lightweight, with an exquisite appearance, making it suitable for narrow spaces with dense cables.
BulletPoint2 : [Safe and Reliable] Composed of a coil and a handle, no exposed metal conductors, ensuring non- measurement for increased safety.
BulletPoint3 : [Versatile Usage] Mainly used for detecting ac leakage current, large current, high order harmonic current (up to 400 times), complex waveform current, transient impulse current, phase, electric energy, and power factor.
BulletPoint4 : [Zero Phase Error] Toroidal coil evenly wound on non-ferromagnetic materials to eliminate hysteresis effect and magnetic saturation, ensuring extremely high linearity.
BulletPoint5 : [High Accuracy Measurement] Wide measurement range, high accuracy, and strong reliability with a response frequency bandwidth of 0.1hz‑1mhz.
IncludedComponents : No

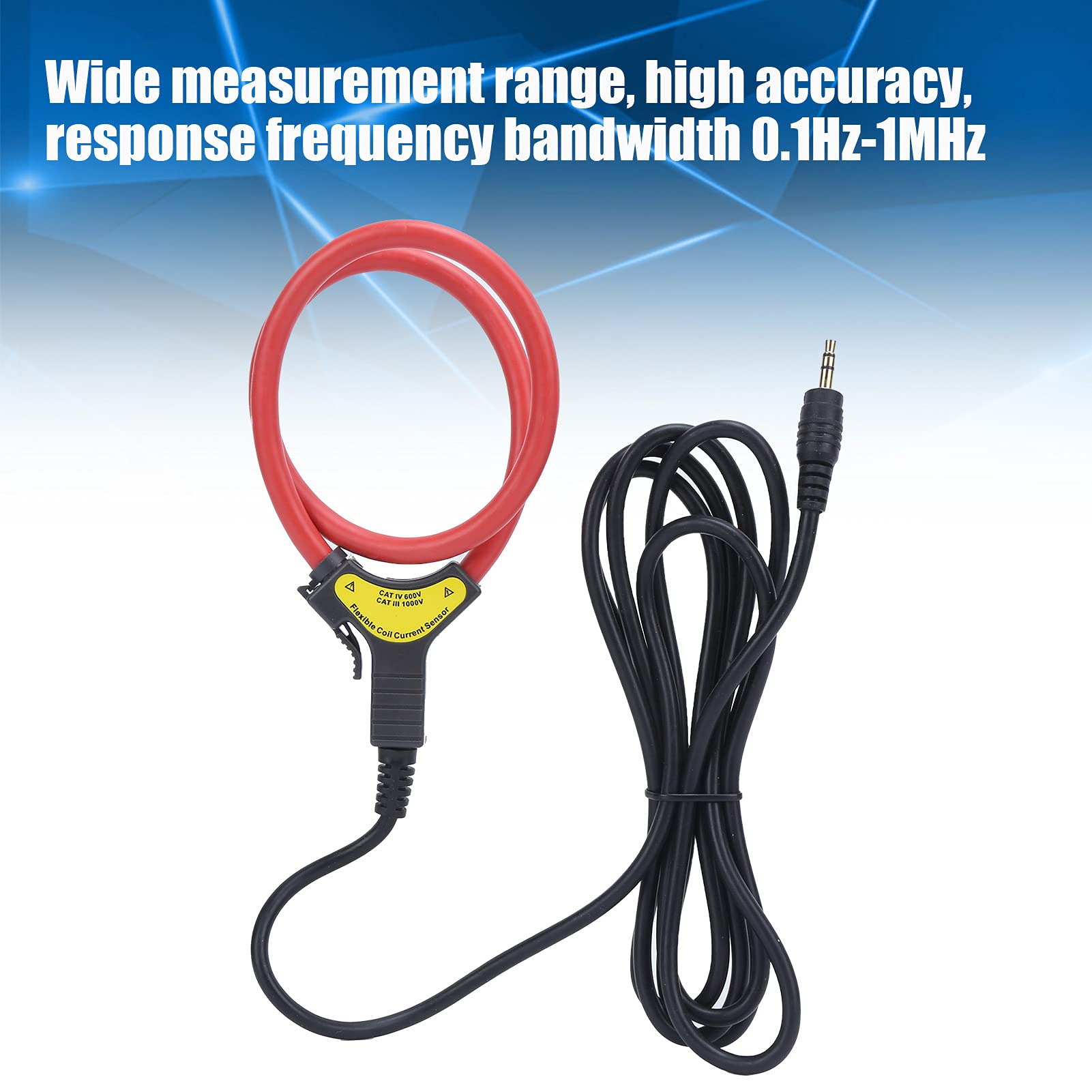

ItemName : Flexible Current Transformer ETCR150FA Coil Current Sensor,AC Current Detector for Electronics Industry, Power Grid Maintenance
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 19 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : electronic-component-current-sensors
Manufacturer : GYZOUKA
ModelNumber : GYZOUKAouvefk6xan
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : GYZOUKAouvefk6xan
ProductDescription : Spec:

Item Type: Flexible Coil Current Sensor
Model: ETCR150FA
Material: ABS
Application: Electronics industry, power communications, equipment manufacturing, power grid maintenance
Power factor and other detection
Detection Method Flexible coil CT: The output signal is the differentiation of current to time. By integrating the output voltage signal, it can be truly restored
Input Current
Coil Diameter Approx. 7.5mm / 0.3in
Range 0A~10000A~higher
Resolution 10mA
Accuracy Class ±1.0%FS (50Hz/60Hz; 23℃±2℃, below 70%RH, the wire is at the center of the coil)
Phase Error ≤0.1°(50Hz/60Hz; 23℃±2℃)
Output Interface Approx. 3.5mm / 0.1in audio frequency plug/BNC plug/tap (optional)cable length: Approx. 2m / 6.6ft
Electric Field Interference No hysteresis effect, no interference from external electric field
Wire Position The tested wire is at the center of the coil, and the position error affects ≤±0.3%FS
Current Frequency 45Hz~70Hz (frequency of measured current)
Response Frequency 0.1Hz~1MHz
Line Voltage Line test below AC 1000V
Working Temperature and Humidity -20℃~50℃; below 80%rh
Storage Temperature and Humidity -10℃~60℃; below 70%rh
Dielectric Strength AC 2000V/rms (both ends of the coil unlocked and expanded)
Suitable for Safety Standard CAT IV 600V, CAT Ⅲ 1000V

Package List:
1 x Coil Current Sensor




ProductSiteLaunchDate : 2024-09-14T10:08:55.888Z
UnspscCode : 46171600
WarrantyDescription : Manufacturer warranty for 90 day
