Specification
BatteriesRequired : 1
Brand : MiOYOOW
BulletPoint1 : It is suitable for 3V or 5V logic and can measure bus voltages up to+36VDC. Not applicable to AC voltage.With it, you can measure high or low voltage side DC current, bus voltage, and have it automatically calculate power. It can complete these tasks with an accuracy of over 1% within an impressive range of voltage, current, and temperature, while transmitting data in an easy-to-use format through I2C.
BulletPoint2 : The voltage across the integrated 2 milliohms (0.002 ohms!), 0.1% shunt resistor is measured by an internal 16 bit ADC, allowing for impressive current range measurements at a resolution of 1.5 mA. The resistance of the resistor is so low that some multimeters record it as a short circuit.
BulletPoint3 : Many are only on the low side, which may cause problems when the grounding reference changes with the current. Other devices avoid this situation by measuring the high side, but need to modify their shunt resistors to measure different current ranges.It avoids these limitations and, with its integrated precision shunt resistor, can be used for continuous measurement of+36V and up to 15A currents on either the high or low side.
BulletPoint4 : In the high side configuration, bus voltage measurement and power calculation can be accurately retrieved, but advanced who want to measure bus voltage in the low side configuration need to cut off the jumper connecting V+and VBUS, and connect the VBUS pin to the voltage bus.
BulletPoint5 : After-Sale Service: Thanks for your purchase. If you have any problem , please contact us any time. We promise you the satisfying solutions within 24 hours.
CircuitType : 1-way
Color : Black
ConnectivityProtocol : X-10
ConnectorType : Screw Terminal
ControlMethod : application
CpsiaCautionaryStatement : no_warning_applicable
ExternallyAssignedProductIdentifier1 : 0760606978386
ExternallyAssignedProductIdentifier2 : 760606978386
Hazmat1 : MANUAL GROUNDING
Hazmat10 : DE_NoAir
Hazmat11 : EG_NoAir
Hazmat12 : ES_NoAir
Hazmat13 : FR_NoAir
Hazmat14 : GB_NoAir
Hazmat15 : IN_NoAir
Hazmat16 : IT_NoAir
Hazmat17 : JP_NoAir
Hazmat18 : MX_NoAir
Hazmat19 : NL_NoAir
Hazmat2 : UN9999
Hazmat20 : PL_NoAir
Hazmat21 : SA_NoAir
Hazmat22 : SE_NoAir
Hazmat23 : SG_NoAir
Hazmat24 : TR_NoAir
Hazmat25 : US_NoAir
Hazmat26 : ZA_NoAir
Hazmat3 : 3
Hazmat4 : AE_NoAir
Hazmat5 : AU_NoAir
Hazmat6 : BE_NoAir
Hazmat7 : BR_NoAir
Hazmat8 : CA_NoAir
Hazmat9 : CN_NoAir
IncludedComponents : 1*Hall effect current sensor
InputVoltage : 3 volts
InternationalProtectionRating : IP54

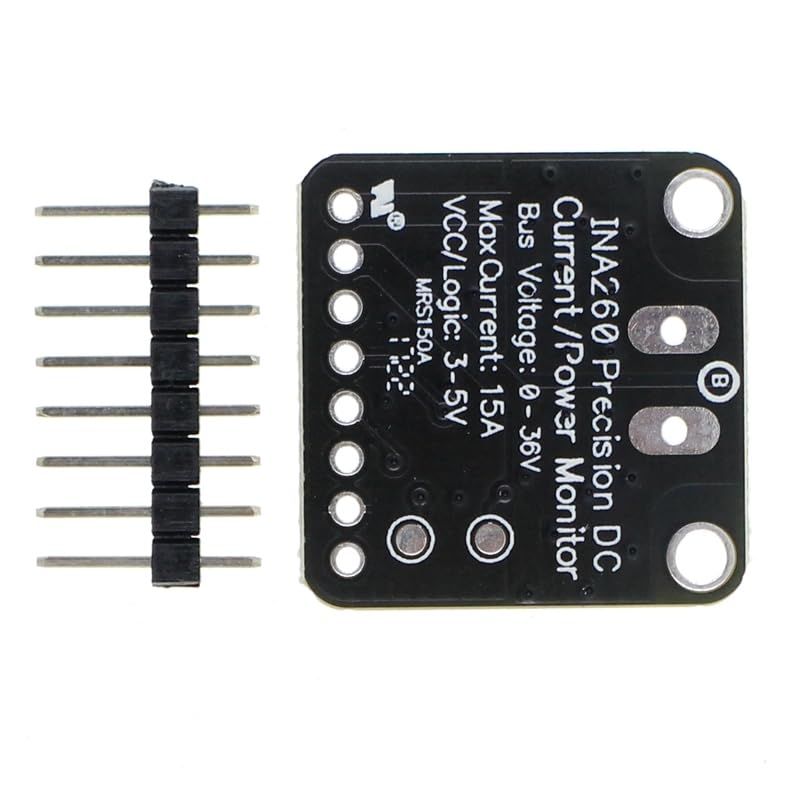

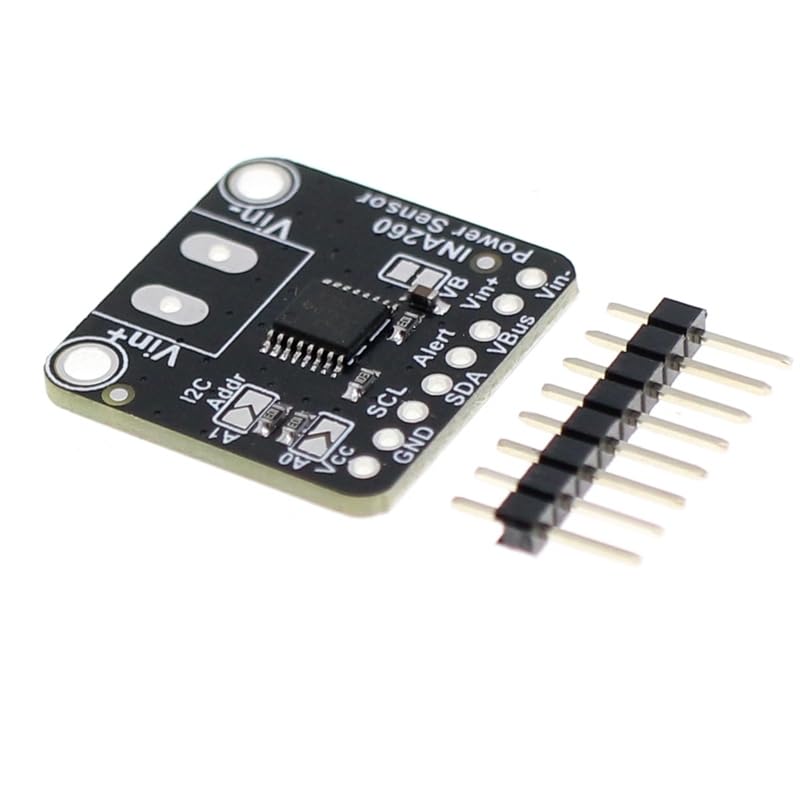

ItemName : INA260 Voltage Current Module, DC 3.0V-36V High & Low Side Current Voltage Power Sensor Module Current Power Supply Sensor
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 2 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-current-sensors
Manufacturer : MiOYOOW
ManufacturerMinimumAge : 144
Material : copper
ModelName : hcs-150a
ModelNumber : 598445
MountingType : Panel Mount
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Mechanical,Electrical
OutputVoltage : 5 volts
PartNumber : 598445
ProductDescription :

Description:

 1>.It is suitable for 3V or 5V logic and can measure bus voltages up to+36VDC. Not applicable to AC voltage.With it, you can measure high or low voltage side DC current, bus voltage, and have it automatically calculate power. It can complete these tasks with an accuracy of over 1% within an impressive range of voltage, current, and temperature, while transmitting data in an easy-to-use format through I2C.

 2>.The voltage across the integrated 2 milliohms (0.002 ohms!), 0.1% shunt resistor is measured by an internal 16 bit ADC, allowing for impressive current range measurements at a resolution of 1.5 mA. The resistance of the resistor is so low that some multimeters record it as a short circuit.

 3>.Many are only on the low side, which may cause problems when the grounding reference changes with the current. Other devices avoid this situation by measuring the high side, but need to modify their shunt resistors to measure different current ranges.It avoids these limitations and, with its integrated precision shunt resistor, can be used for continuous measurement of+36V and up to 15A currents on either the high or low side.

Feature:

 1>.Ultra high precision

 2>.High sensitivity

 3>.Ultra small volume

 4>.Easy to use

Parameter:

 1>.Input Voltage: DC 3.0V-36V

 2>.Measuring Current:36A(Max)

 3>.Resolution Ratio:1.6mA

 4>.Size: 23*23mm

Package:

 1>.1pcs Voltage Current Power Sensor Module

 2>.1pcs 8Pin Male Pin

ProductSiteLaunchDate : 2024-09-05T08:43:30.461Z
SpecificationMet1 : UL
SpecificationMet2 : CE
Style : #N/A
SupplierDeclaredDgHzRegulation : unknown
SwitchType : Push Button
TargetAudienceKeyword : Unisex Adult
TerminalType : Screw
UnitCount : 1
UnspscCode : 39121000
UpperTemperatureRating : 60 degrees_celsius
