Specification
Brand : JZK
BulletPoint1 : The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. The module monitors both a shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current (in amperes) and power (in watts).
BulletPoint2 : 【Compatible】The INA226 senses current on common-mode bus voltages that can vary from 0V to 36V, independent of the supply voltage. This module operates from a single 2.7V to 5.5V supply, drawing a typical of 330μA of supply current.
BulletPoint3 : The module is specified over the operating temperature range between –40°C and125°C and features up to 16 programmable addresses on the I2C-compatible interface.
BulletPoint4 : 【Design compact】Senses Bus Voltages From 0 V to 36 V. High-Side or Low-Side Sensing. Reports Current, Voltage, and Power. Configurable Averaging Options-16 Programmable Addresses; Operates from 2.7V to 5.5V Power Supply; 10-Pin, DGS (VSSOP) Package.
BulletPoint5 : 【High performance】High Accuracy:– 0.1% Gain Error (Max);– 10 μV Offset (Max).
CircuitBreakerType : Standard
CircuitType : parallel
Color : 20A Range Current Sensor Module
ConnectivityProtocol : X-10
ConnectorType : 3.5mm Audio Jack
ControlMethod : touch
CurrentRating : 100 amps
GpsrSafetyAttestation : 1
IncludedComponents : 1x INA226 module
InternationalProtectionRating : IP65

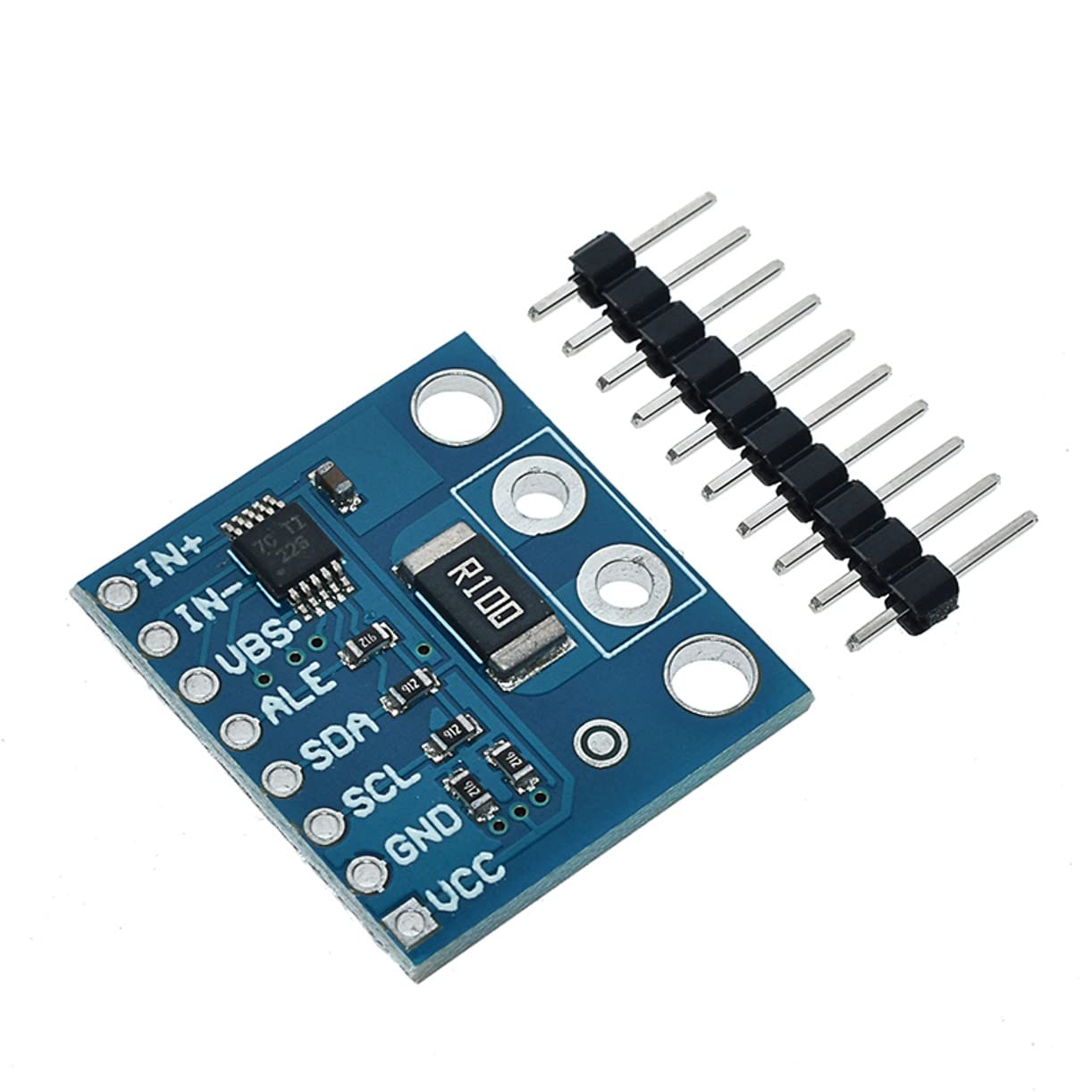

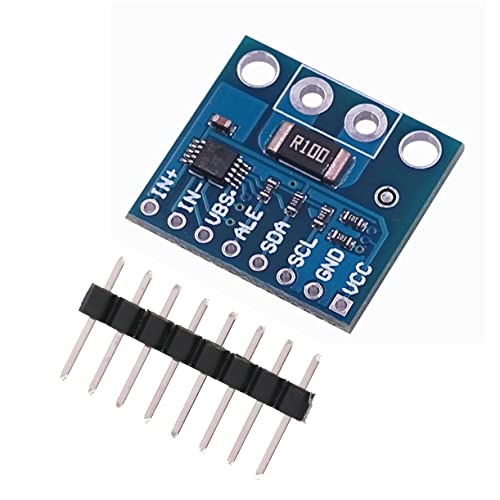

ItemName : JZK 36V bidirectional I2C INA226 Monitor Module for Voltage and Current Power, INA226 IIC I2C Interface Bi-Directional Current/Power Monitoring Sensor
ItemPackageDimensions_Height : 17.2 centimeters
ItemPackageDimensions_Length : 2.3 centimeters
ItemPackageDimensions_Width : 10.9 centimeters
ItemTypeKeyword : electronic-component-current-sensors
Manufacturer : JZK-M468564U
Material : Lead
MaximumSupplyVoltage : 5 volts
MeasurementAccuracy : 0.1%
MeasuringRange : 0 - 36 V
ModelNumber : 78094
MountingType : PCB Mount
NumberOfItems : 5
NumberOfPositions : 1
OperationMode : automatic
OutputType : Digital
PartNumber : M468564U
ProductDescription : Package Contains:
1x INA226 module

Specifications:

Senses Bus Voltages From 0V to 36V
High-Side or Low-Side Sensing
Reports Current, Voltage, and Power
High Accuracy:
– 0.1% Gain Error (Max)
– 10 μV Offset (Max)
Configurable Averaging Options
16 Programmable Addresses
Operates from 2.7V to 5.5V Power Supply
10-Pin, DGS (VSSOP) Package

Pin Description:
VBUS: bus voltage input
SDA/SCL: IIC bus data and clock signal lines
ALERT: Multi-function alarm output
A0/A1: IIC address line
IN+/IN-: non-inverting analog input, inverting analog input

【INA226】The INA226 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. The module monitors both a shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current (in amperes) and power (in watts).

【Compatible】The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. This module operates from a single 2.7V to 5.5V supply, drawing a typical of 330μA of supply current.

【Design compact】Senses Bus Voltages From 0 V to 36 V. High-Side or Low-Side Sensing. Reports Current, Voltage, and Power. Configurable Averaging Options-16 Programmable Addresses; Operates from 2.7V to 5.5V Power Supply; 10 Pin, DGS (VSSOP) Package.

【High performance】High Accuracy:– 0.1% Gain Error (Max);– 10 μV Offset (Max).
ProductSiteLaunchDate : 2024-08-02T07:50:39.480Z
SpecificationMet : IEC 60669-2-1:2002
SpecificUsesForProduct : Electronic
Style : 20A Range Current Sensor Module
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Bipolar Transistor
TerminalType : Physical
UnitCount : 5
UnspscCode : 46171600
UpperTemperatureRating : 125 degrees_celsius
Voltage : 5 volts
