Specification
Brand : Respicefinem
BulletPoint : Sensors
BulletPoint1 : This Module Detect The Current Value, Control The On To Off Of The Relay According To The Limit Current Set By Users
BulletPoint2 : Model:Yyi 4 Supply Voltage:7 30V Detection Range:0 30A Accuracy:0. 01A 10Ma Standby Current:About 20Ma Weight:Approx. 86G 3. 0Oz, Current Detection Relay Module
BulletPoint3 : Application The Detection Module Be Used To Limit The Current In The Circuit And Theal Devices From Damage Caused By The Current
BulletPoint4 : Specifications The Detection Range Is 0 30A With An Accuracy Of 0. 01A. Standby Current Is About 20Ma
BulletPoint5 : The Current Detection Module Has An Error Function, And The Measurement Is More Accurate
Color : One Color
ExternallyAssignedProductIdentifier : 9167866247862
IncludedComponents : No

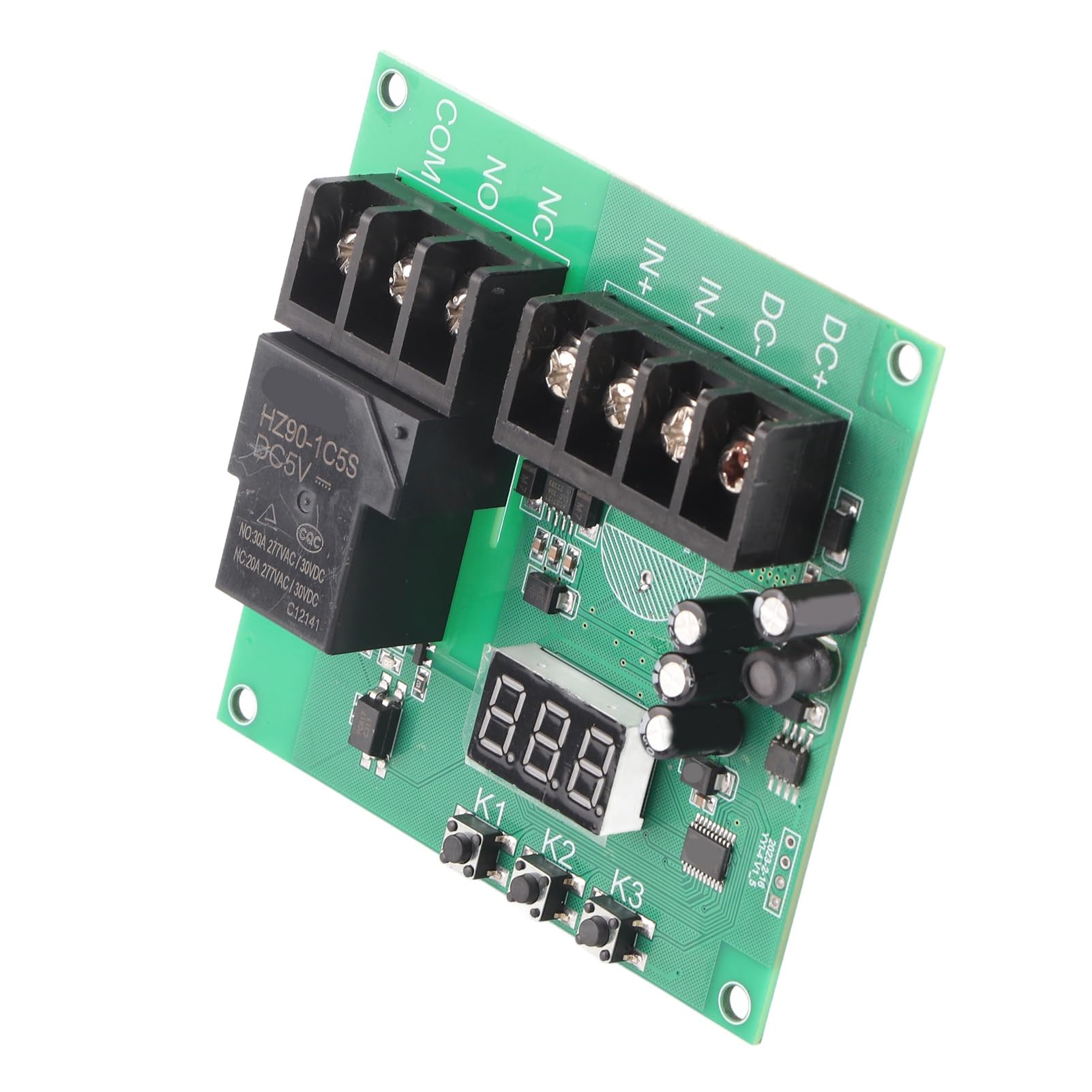

ItemName : Respicefinem Current Detection Sensing Module Overcurrent Relay 10. 0×9. 0×2. 0 7 30V 0 30A Current Detection Sensing Module Overcurrent Relay Module Multifunction Current Sensor M
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-current-sensors
Manufacturer : Respicefinem
ModelName : Respicefinemgp2qyscbg5
ModelNumber : Respicefinemgp2qyscbg5
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Respicefinemgp2qyscbg5
ProductDescription : Features:
This module can detect the DC current value, control the on-off of the relay according to the limit current set by users.
Detection range is DC 0-30A with the accuracy of 0.01A.
With error calibration function.
Can turn off the LED display to reduce power consumption.
Can be used to limit the current in the circuit, protect electrical equipment from damage caused by current.

Specification:
Model: YYI-4

Detection range: DC 0-30A
Accuracy: 0.01A (10mA)
Standby current: About 20mA
Weight: Approx. 86g/3.0oz

Function description:
P-11: When the measured current > I1 (low limit current), the relay closed; When the measured current
P-12: When the measured current > I1, the relay closes; Maintain the state until the circuit board power off;
P-21: When the measured current > I2 (high limit current), the relay closes; When the measured current
P-22: When the measured current > I2, the relay closes; Maintain the state until the circuit board power off;
P-31: When measured < I1, the relay closes; When the current > I2, the relay opens;
P-: When the measured current < I1, the relay closes; Maintain the state until the circuit board power off;
P-41: When the measured current is between I1 and I2, the relay closes, opens in other cases;
P-42: When the measured current is between I1 and I2, the relay closes; Maintain the state until the circuit board power off;
P-51: When the measured current I2, the relay closes, opens in other cases;
P-52: When the measured current < I1 or > I2, the relay closes; Maintain the state until the circuit board power off.

Setting description:
Power on, display the measured current; (if the measured current terminal is none, the LED digits will pulse)
Press K1 for the second time (for over 1s to prevent misoperation)
, the screen shows: P11, k2 adjusts mode, K3 adjusts
