Specification
Brand : DVNXDPXJ
BulletPoint : Inductors
BulletPoint1 : This Is Split Base Current Transformer It The Smallest One Compared To The Similar Products Output 100Ma
BulletPoint2 : Split Current Transformer, Smallest Split Base Current Transformer This Split Base Current Transformer Is The Smallest One Compared To Similar Products, With An Output Of 100Ma. Its Small Size And Snap Joint Structure It Easy To Install And Fix To The Cable Directly Through Nylon Ties.
BulletPoint3 : Strong Voltage Isolation Provides Safety, Reliability, And Strong Voltage Isolation Capability.
BulletPoint4 : Wide Application The Pzct 02 Split Current Transformer Is For Use With Energy Meters, Suitable For Both Ac 220V And 380V Power Supplies. It Eliminates The Need To Cut Off Power During Installation, Making It Convenient And User Friendly.
BulletPoint5 : Split Current Transformer 20A, Strong Isolation Capability This Current Transformer Has Strong Voltage Isolation Capability, Ensuring Safety And Reliability. Suitable For Ac 220V And 380V Power Supply.
Color : 400A
ExternallyAssignedProductIdentifier : 7640054917270

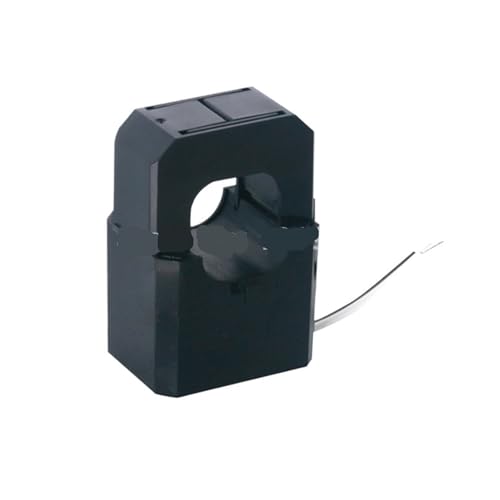

ItemName : Split Core Current Transformer Mini Current Transformer KCT-24 Current Sensor(400A,5A)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-current-sensors
Manufacturer : DVNXDPXJ
ModelName : ZECAIUFPB
ModelNumber : DVNXDPXJ
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DVNXDPXJ
ProductDescription : Inductors
Clamp-on current transformers Clamp-on current transformers
Technical indicators:
Electrical parameters
Mechanical parameters
frequency
50-2KHz
case
PA/UL94-V0
Rated input
5A-200A
Spool
Polybutylene terephthalate
Measuring range
10%In-120%In
nuclear
Silicon Steel
Rated output
0.333V (AC) or 0-500mA
Internal structure
Epoxy resin
ratio
±1.0%
put up
tie
Phase Angle
±60 minutes
Operating temperature
-25℃~+75℃
Dielectric strength
2.5KV/1mA/1min
Working humidity
85%
Insulation resistance
DC500V/100Mmin
Output Connections
UL1015 20AWG wire 1.0m

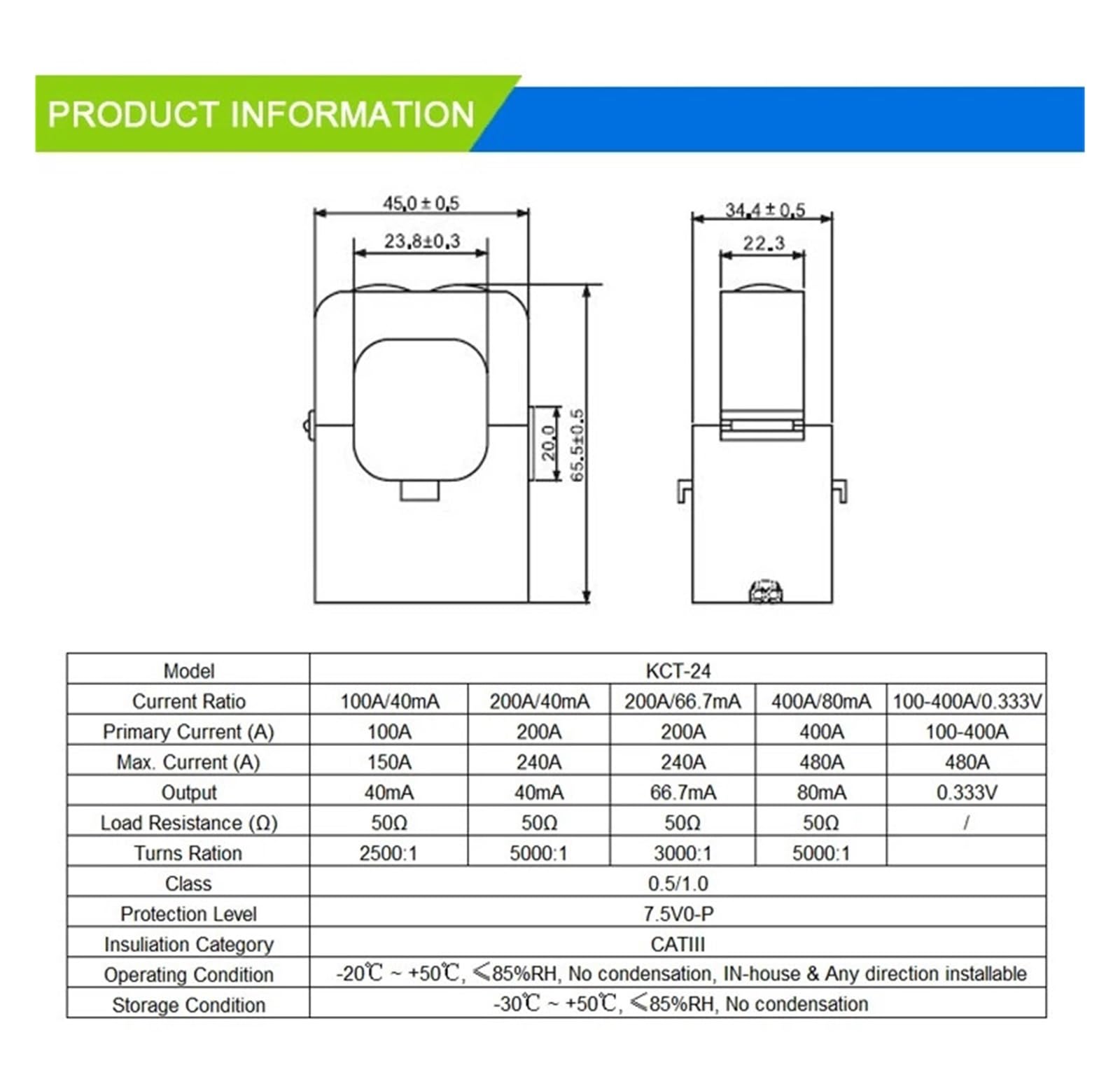

Current transformer ratio:
Model
KCT-24
Current ratio
100A/40mA
200A/40mA
200A/66.7mA
400A/80mA
100~400A/0.333V
Primary current
100A
200A
200A
400A
100~400A
Maximum current
150A
240A
240A
480A
4800A
Output
40 mA
40 mA
66.7 mA
80 mA
333 mV
Load Resistance
50
/
class
0.5/1.0
Turns ratio
2500:1
5000:1
3000:1
5000:1
/
Protection level
7.5V0-P
7.5V0-P
7.5V0-P
7.5V0-P
7.5V0-P
Insulation type
CATIII
Operating conditions
-20C~+50C, 85%RH, no condensation, indoor & any direction installation
Storage conditions
30C50C85RH no condensation
Note: The above current ratio is a common type, and the ratio can be customized according to customer requirements. Note: The above current ratio is a common type, and the ratio can be customized according to customer requirements.
Current error (%):
ProductSiteLaunchDate : 2024-07-16T07:33:59.501Z
Size : 5A
UnitCount : 1
