Specification
Brand : Hilitand
BulletPoint : INA226 IIC I2C interface Bi-directional current/Power monitoring sensor module For
BulletPoint1 : Product Usage: This sensor module can measure high or low side DC voltage, DC current, bus voltage, and automatically calculate power, maximum voltage and current is DC36V 15A, which is efficient and practical.
BulletPoint2 : Less Limitation: With its integrated accurate shunt resistor, this sensor module can continuously measure +36V voltage on the high or low side and up to 15A current , reducing the limitations of measurement equipment.
BulletPoint3 : Integrated Test Resistance: Integrating 2mΩ resistor, the voltage at both ends of a 0.1% shunt resistor is measured by an internal 16 bit ADC, allowing for impressive current range measurement with a resolution of 1.5mA.
BulletPoint4 : High Accuracy: This sensor can accomplish tasks with better than 1% accuracy over an impressive range of voltage, current and temperature, while transferring data in an easy to use format through I2C.
BulletPoint5 : High Low Side Settings: In the high side configuration, it is possible to accurately retrieve bus voltage measurements and power calculations, but in the low side, it is necessary to cut off the jumper connecting V+ and VBUS, and connect the VBUS pin to the voltage bus.

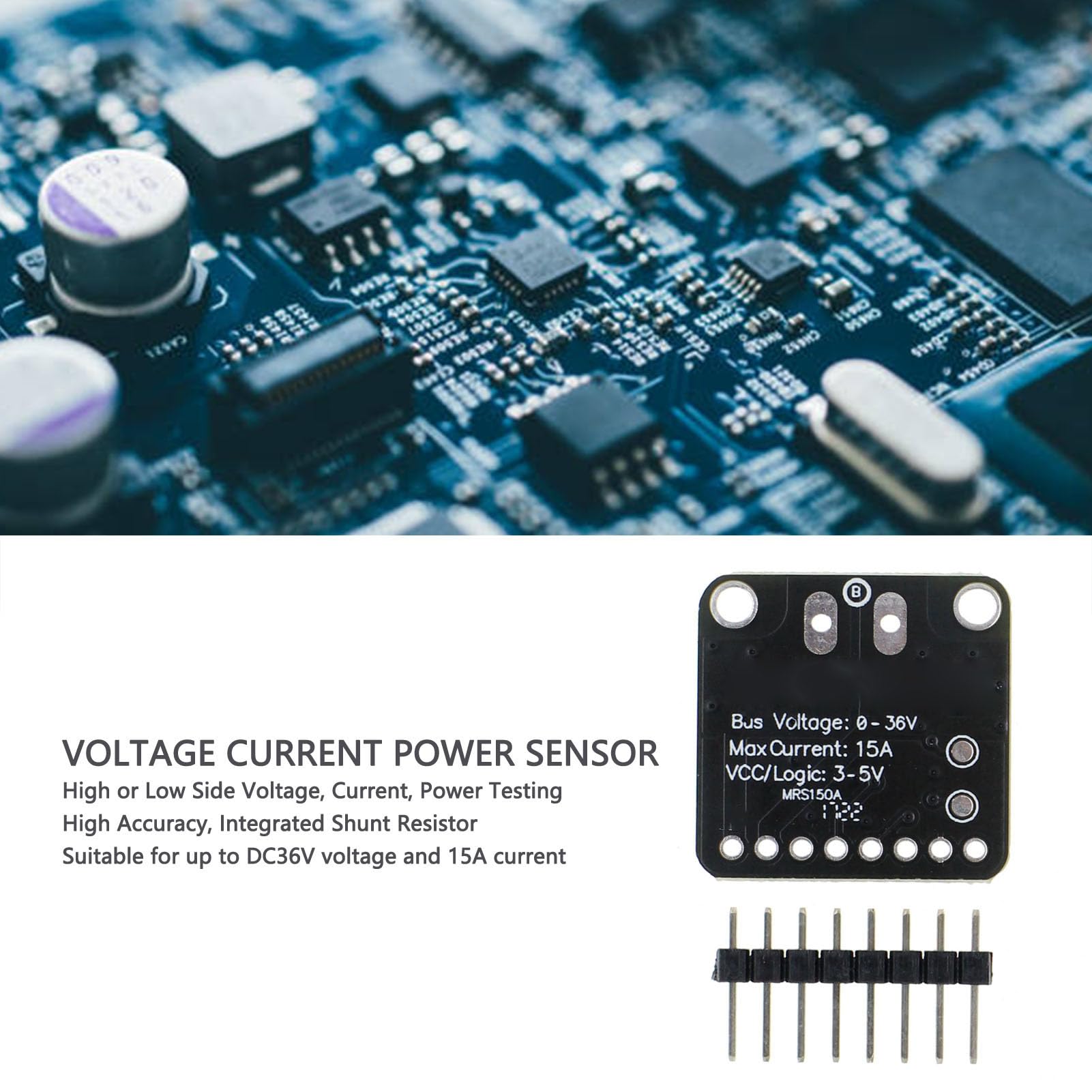

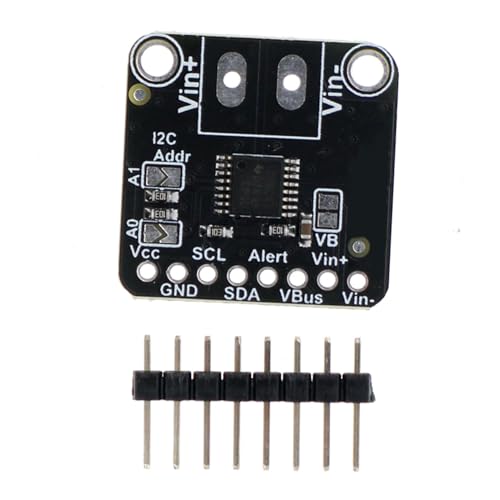

ItemName : Voltage Current Power Sensor Module High Low Side Measurement DC36V 15A I2C Data Transfer for Measurement Equipment
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 5 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemTypeKeyword : electronic-component-current-sensors
Manufacturer : Hilitand
ModelNumber : Hilitandhenpxic7qs
NumberOfItems : 1
PartNumber : Hilitandhenpxic7qs
ProductDescription : Spec:
Item Type: Voltage Current Power Sensor
Testing Current: 15A Maximum
Integrated Testing Resistance: 2mΩ (0.002Ω)

How to Use:
Insert pin into the system

packing list:
1 x Power Sensor
1 x Pin Header
