Specification
Brand : Eastwood
BulletPoint1 : POWDER COATING SYSTEM: Eastwood's Hotcoat 100kV powder coating system is for any small business or home shop at a fraction of the cost of industrial equipment. The 100Kv high-voltage corona charge design can apply multiple coats of powder. Integral LED light illuminates the piece you are working on.
BulletPoint2 : BEST USE: Powder coating is a very popular type of finishing for steel and other metallic products. It protects the surface from scratches, chipping and corrosion. Additionally, it is the most durable finish available today because it offers high scratch resistance as well as weatherproofing to prevent corrosion.
BulletPoint3 : EASTWOOD QUALITY: Eastwood offers solutions which combines our 4,000+ unique products with the know-how to “Do The Job Right”. With In-house product design, development and testing and a strong track record of high-quality, innovative products. Used and trusted by top builders to beginners and provides Lifetime Tech Support.
BulletPoint4 : WHAT'S IN THE PACKAGE: 100KV Powder Coating System with 16-ft. (4.9m) Cable and LED Light, 2lb. Powder Hopper with lid.
BulletPoint5 : WARRANTY: Comes with a 3 Year limited warranty and 90-day return.
Color : Black
ExternallyAssignedProductIdentifier1 : 0607174168316
ExternallyAssignedProductIdentifier2 : 607174168316
FitType : Universal
IncludedComponents : 100KV Powder Coating System and 2lb. Powder Hopper
IsAssemblyRequired : 1

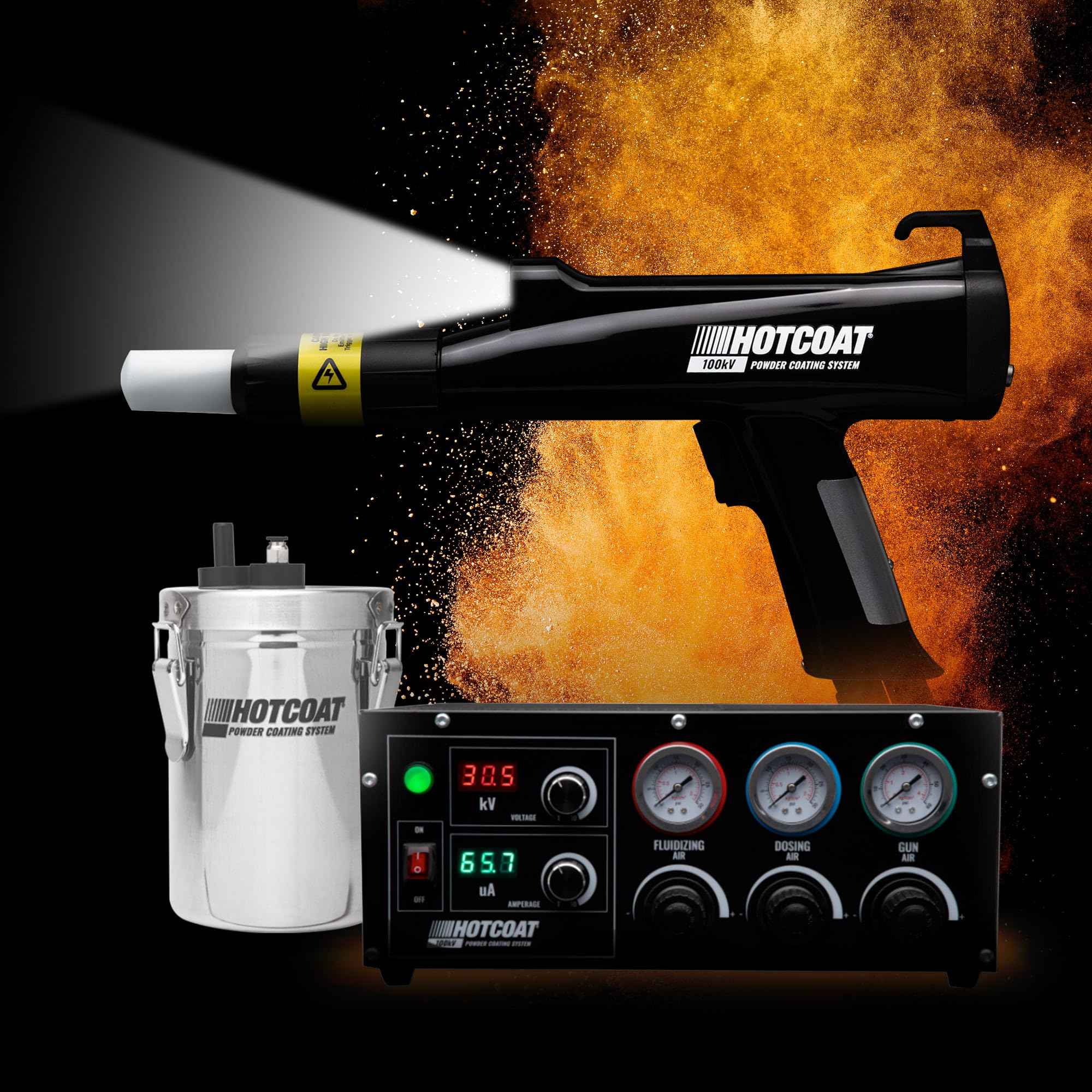

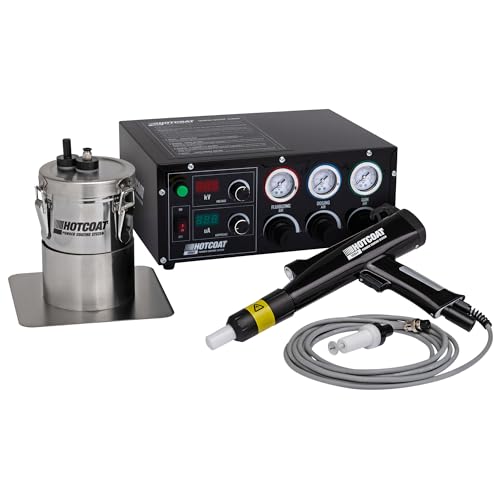

ItemName : Eastwood HotCoat 100kV Powder Coating Gun System | Multi-Coat Coverage | 2-lb Powder Hopper | Integrated LED Light
ItemPackageDimensions_Height : 36.703 centimeters
ItemPackageDimensions_Length : 5.207 centimeters
ItemPackageDimensions_Width : 10.795 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : auto-body-spray-guns
Manufacturer : Eastwood
Material : stainless steel
ModelName : Eastwood
ModelNumber : 71860
NumberOfItems : 1
PartNumber : 71860
ProductDescription :

The Hotcoat 100KV Powder Coating System draws on Eastwood’s 25 years of experience in the DIY powder coating market to provide a high performance powder coating system for your small business or home shop. This system is multi-coat capable to give your projects the ultimate in appearance and durability.

High-Voltage Corona Charge design utilizes state of the art electronic circuitry to deliver precisely adjustable voltage and amperage up to a full 100,000 Volts and 100 µA of consistent charge. The Hopper fed Powder Coating Gun features a unique, integral LED light to illuminate your workpiece and ensure you can see when full coverage is achieved. Hand fatigue is reduced by an ergonomic Trigger. Included accessories enable multiple Emitter configurations to achieve the best powder spray pattern for your projects. Adjustment of Fluidizing, Gun, and Dosing Air flow to further optimize powder delivery is possible on the Control Unit.

Included 2 lbs. stainless-steel Hopper offers enough powder capacity for small production runs. Additional Hoppers and Powder Feed Hoses can be purchased to have dedicated primer/color/clear setups. Optionally available high-capacity 5 lbs. Hopper can be purchased separately for oversized projects and high volume production runs.

Specifications

Power Requirement: 110-120 VAC, 50/60 Hz, 20 Watts
Air Supply Requirement: 6 cfm @ 50 psi (85 L/min @ 3.4 bar)
Air Input Connection: 1/4" FNPT
Voltage Output: Variable from 0 KVDC to 99 KVDC
Amperage Output: Variable from 16 µA to 99 µA
Hopper Capacity: 2 lbs.
Control Unit Dimensions (W x D x H): 13.25" x 12.00" x 5.75" (337 x 305 x 146mm)
LED Light Output: 100 Lumen

Includes

(1) HotCoat 100kV Powder Coating Gun Assembly with 16' (4.9m) Cable and LED Light
(1) Emitter Retaining Cap
(1) Powder Feed Hose Coupler
(1) Standard Emitter (includes 18mm Deflector, installed)
(1) Fan Pattern Emitter
(2) 16mm Deflector
(2) 18mm Deflector
(2) 22mm Deflector
(1) 2 lbs. Powder Hopper with Lid
(1) Hopper Base
(1) Powder Fluidizing Tube
(1) Hopper Discharge Hose Fitting
(1) Grounded Powder Feed Hose 13' (4.9m)
(1) Air Tubing, 12' (3.7m)
(1) Part Grounding Lead & Clip 20' (6m)
(1) Control Unit True Earth Ground Lead 10' (3m)
(1) Power and Flow Control Unit
(1) Grounded Power Cord 6' (1.8m)

Size : 100kV System
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 27112700
WarrantyDescription : 3 Year Warranty
