Specification
Brand : Coolwell
BulletPoint1 : The TOF Laser Range Sensor is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 5m measuring range, ±1.5cm accuracy, and 1mm resolution.
BulletPoint2 : This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more...
BulletPoint3 : It supports cascade ranging via UART or CAN bus, configurable data output including active output and query output;As short as 1cm blind zone,measuring just before your eye; 15~27° adjustable FOV,decide it by your own.
BulletPoint4 : Come with an industrial USB TO TTL converter for easy testing
ConnectorType : DIN
ExternallyAssignedProductIdentifier : 7424039039016
ExternallyAssignedProductIdentifier1 : 0738628505057
ExternallyAssignedProductIdentifier2 : 738628505057
HardwareInterface : ethernet
ItemName : Coolwell TOF Laser Range Sensor Module, UART/CAN Bus, Cascading Support, with Host Computer Assistant Software,up to 5m Range with USB to TTL Converter
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : desktop-computer-barebones-systems
Manufacturer : Coolwell
NumberOfPorts : 1
PartNumber : TOF Laser Rang Sensor with USB TO TTL
ProductDescription : Overview

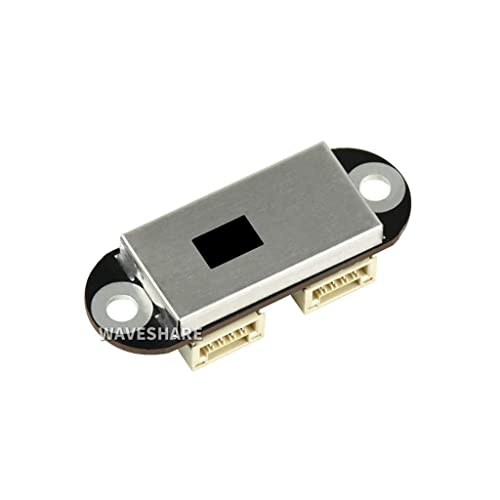

The TOF Laser Range Sensor is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable
of offering up to 5m measuring range, ±1.5cm accuracy, and 1mm resolution. It supports cascade ranging via UART or CAN bus, configurable
data output including active output and query output.

This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude
setting / ceiling detection, and more...


Cascade Ranging Support

Multiple sensors can connected in series thanks to onboard two identical ports, and each sensor can be configured with an ID,therefore, the ranging data
of all sensors can be acquired through one single communication bus.

When using cascade ranging, three output modes are available: UART query, CAN query, and CAN active output.


Package Content

1. TOF Laser Range Sensor x1
2. GH1.25 4PIN wire x1
3. GH1.25 4PIN squid wire x1
4.USB to TTL Converter x1
ProductSiteLaunchDate : 2020-08-11T16:15:56.006Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 43000000
