Specification
Brand : PUSR
BulletPoint1 : Dual Serial Device Server: Cpu: Cort ex-M4 120Mhz, Serial RS485 & RS232 to Ethernet Server, 2 Serial Ports: 1 Port is RS232, 1 Port is RS485, 1 RJ45 Ethernet Port. Support RS232 & RS485 Working at The Same Time.
BulletPoint2 : Configure Via Web Browser or Virtual Com Software Interface; Working Temperature: -40 ~ 85°C, Power Consumption: < 1W.
BulletPoint3 : USR-TCP232-410s can collected data in Modbus RTU, Modbus TCP protocol and reporting data to IoT cloud in JSON format using MQTT or TCP/UDP/HTTP protocol. It supports up to 128 data points, and can decode and compute the collected data to reduce server’s pressure.
BulletPoint4 : Modbus Gateway: Connect to PLC, SCADA system or user’s private server to achieve local or remote motoring.Modbus RTU to Modbus TCP and Multi-Host Modbus Polling.
BulletPoint5 : Data Dransmission Encryption: Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes. Supports two-way certificates authentication.
Color : Server +Terminal part
CompatibleDevices : Desktop
CompatibleDevices1 : Cameras
CompatibleDevices2 : Printer
CompatibleDevices3 : PC
ConnectivityTechnology1 : RJ11
ConnectivityTechnology2 : Wi-Fi Built In
ConnectivityTechnology3 : USB
ConnectorType : RJ45
CurrentRating : 300 amps
CustomerPackageType : Standard Packaging
DataLinkProtocol : Ethernet
DataTransferRate : 300 megabits_per_second
DsaResponsiblePartyAddress : info@sino-sear.com
ExtendedWarrantyDuration : 12 months
ExternallyAssignedProductIdentifier : 4016032473022
ExternallyAssignedProductIdentifier1 : 613739924518
ExternallyAssignedProductIdentifier10 : 0065030825290
ExternallyAssignedProductIdentifier11 : 0898029626680
ExternallyAssignedProductIdentifier12 : 0163120537259
ExternallyAssignedProductIdentifier13 : 00065030825290
ExternallyAssignedProductIdentifier14 : 00783384231719
ExternallyAssignedProductIdentifier2 : 0613739924518
ExternallyAssignedProductIdentifier3 : 163120537259
ExternallyAssignedProductIdentifier4 : 065030825290
ExternallyAssignedProductIdentifier5 : 898029626680
ExternallyAssignedProductIdentifier6 : 763615937085
ExternallyAssignedProductIdentifier7 : 0777785523986
ExternallyAssignedProductIdentifier8 : 0763615937085
ExternallyAssignedProductIdentifier9 : 0778889296028
FinishType : Aluminum
FrequencyBandClass : single_band
HardwareInterface : ethernet
HardwareInterface1 : usb
HardwareInterface2 : ethernet
HardwareInterface3 : usb2.0
IncludedComponents : 1
InputVoltage : 5 volts
ItemDisplayDimensions_Height : 3 inches
ItemDisplayDimensions_Length : 7 inches
ItemDisplayDimensions_Width : 5 inches

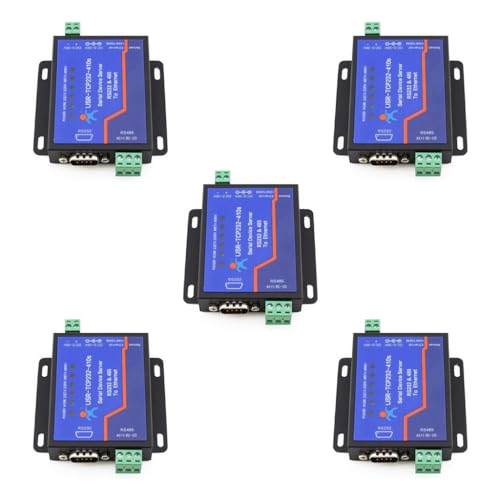

ItemName : Usr-Tcp232-410S RS232 / RS485 Serial to Ethernet Adapter/IP Device Server Ethernet Converter Support DHCP/DNS (5)
ItemPackageDimensions_Height : 34.4932 centimeters
ItemPackageDimensions_Length : 6.4008 centimeters
ItemPackageDimensions_Width : 15.6972 centimeters
ItemPackageQuantity : 5
ItemTypeKeyword : device-servers
Language : english
Manufacturer : PUSR
Material : 1
ModelName : Digi One SP
ModelNumber : NA
NationalStockNumber : 7050-01-578-1503
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
NumberOfPorts : 1
PackageLevel : unit
PartNumber : QQ18039
PowerPlugType : type_a_2pin_na
ProductDescription : Serial Device Server Introduction

This is a Serial RS485 and RS232 to Ethernet Server, Used for Data Transparent Transmission. Usr-Tcp232-410S is a Dual Serial Server, Which Supports RS232 and RS485 Working at The Same Time. it is Based On Cor tex-M4 Solution and The Internal of The Serial Server Integrates Tcp / IP Protocol Stack. Besides, Usr-Tcp232-410S Has The Function of Terminal Power Supply.

Feature
Multiple Indicator Lights for Convenient Debugging
Power-Line Terminal for Industrial Application
Arm Kernel and Tcp / Ip Protocol Stack
Auto-Mdi / Mdix, Rj45 Port with 10 / 100Mbps
Tcp Server, Tcp Client, Udp, Udp Server and Httpd Client Work Mode
Two Ports Can Work Independently at The Same Time
Support Virtual Serial Port and Provide Corresponding Software Usr-Vcom
Serial Baud Rate From 600Bps to 230. 4K Bps; Check Bit of None, Odd, Even, Mark and Space
Dns and Dhcp Supported
Provide Pc Tcp / Ip Socket Programming Example, Vb, C++, Delphi, Android, Ios
Built-In Webpage; Also Can Customize Webpage for Users
Reload Button, One Key to Restore Default Settings
Rj45 with Link / Data Indicator Light, Built-In Isolation Transformer and 2 Kv Electromagnetic Isolation
The Global Unique Mac Address Bought From Ieee, User Can Define Mac Address
Supp Ort Upgrade Firmware Via Network
Support Keep-alive, Rapidly Detect Dead Links
Support Account and Password, Can Be Used to Page Login and Network Settings
Support One Channel Websocket, Realize Bidirectional Transparent Transmisison Bewteen Webpage and Serial 0
Support Modbus Rtu to Modbus Tcp
Support Udp Broadcast Function, Send and Receive Data From All Ip in The Network

What is in The Box(1 Pack):
1 x Dual Serial Device Server, 1 x 5V 1a Power Supply, 1 x Female to Female Serial Cable.
ProductSiteLaunchDate : 2025-04-02T07:09:35.627Z
RecommendedUsesForProduct : 1
Size : 1 port
SpecificUsesForProduct : Camera
SpecificUsesForProduct1 : Business
SpecificUsesForProduct2 : Personal
Style : RS232/422/485
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TotalUsbPorts : 2
UnitCount : 1
UnspscCode : 43202222
Voltage : 1 volts
WarrantyDescription : 1
