Specification
Brand : Vikye
BulletPoint1 : Can display the current measured torsion value and speed value in real time
BulletPoint2 : The current power value can be calculated directly, allowing the sensor to be overloaded by 200%
BulletPoint3 : Support RS485 communication and active upload protocol, the communication rate can reach 500 times per second
BulletPoint4 : This sensor supports simultaneous output of transmission current and transmission voltage
BulletPoint5 : The sensor comes with OLED display, the resolution is 128 x 64
Color : White
ExternallyAssignedProductIdentifier : 8130883221291
ExternallyAssignedProductIdentifier1 : 0310836713945
ExternallyAssignedProductIdentifier2 : 310836713945
IncludedComponents : inc

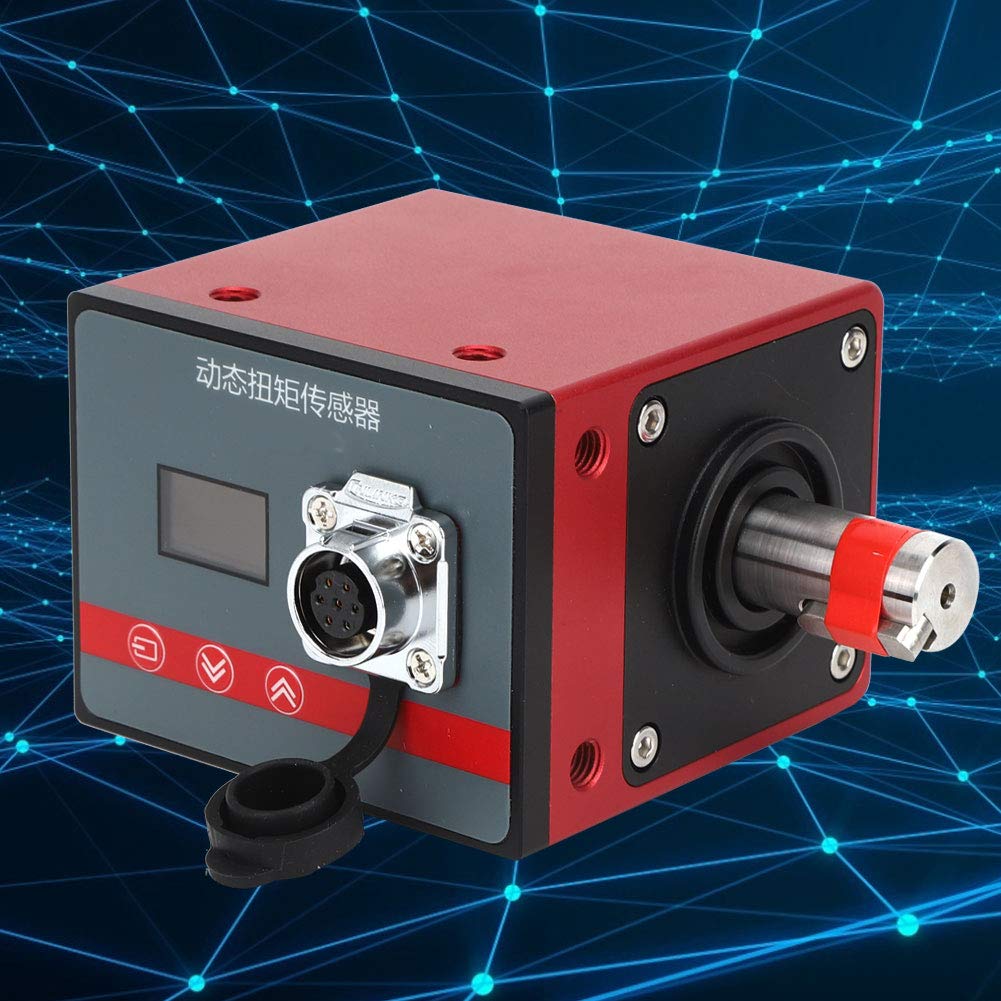

ItemName : Speed Sensor Tester, DYN 200 Non Contact Dynamic Torsion Force Motor Speed Sensor with OLED Display 128x64, Dynamic Force Sensor
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 29 centimeters
ItemPackageDimensions_Width : 24 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : dial-calipers
Manufacturer : Vikye
Material : Material
NumberOfItems : 1
PartNumber : Vikyeif60n3vka7
PowerSourceType : Powersource
ProductDescription : Feature:
1. Can perform simple calibration, clearing, filtering and other operations
2. The accuracy achieves more than 1/1000 accuracy, excellent 0 point stability
3. Non contact, no maintenance, no wearing parts and no life limit
Specification:
Item Type: Sensor
Rated Capacity: ± 0.1N.m
Power Input: DC24V
Current Consumption: Below 150mA
Torsion Output: ± 5VDC; 0 10V; 4 20mA
Speed Output: 60 pulses /
Response Performance: 1kHz
Load Resistance: 2k? or more
Delay: 0.6ms (50% response)
Allow Overload: 200% FS
Operating Temperature Range: 10 ~ + 50?
Non Linearity: 0.1% FS
Repeatability: 0.03% FS
Lag: 0.03%
Temperature Effect of 0 Point: 0.01% FS / C
Temperature Effect of Output: 0.01% FS / C
Rated Speed: 10000rpm
The Fastest Rotation Speed: 15000rpm
Maximum Twisted Angle: 2.60x10rad (0.149°)
Moment of Inertia: 0.38kgcm
Vibration Frequency (rotor Part): 19.4kHz
Torsion Constant: 3.85x10Nm / rad

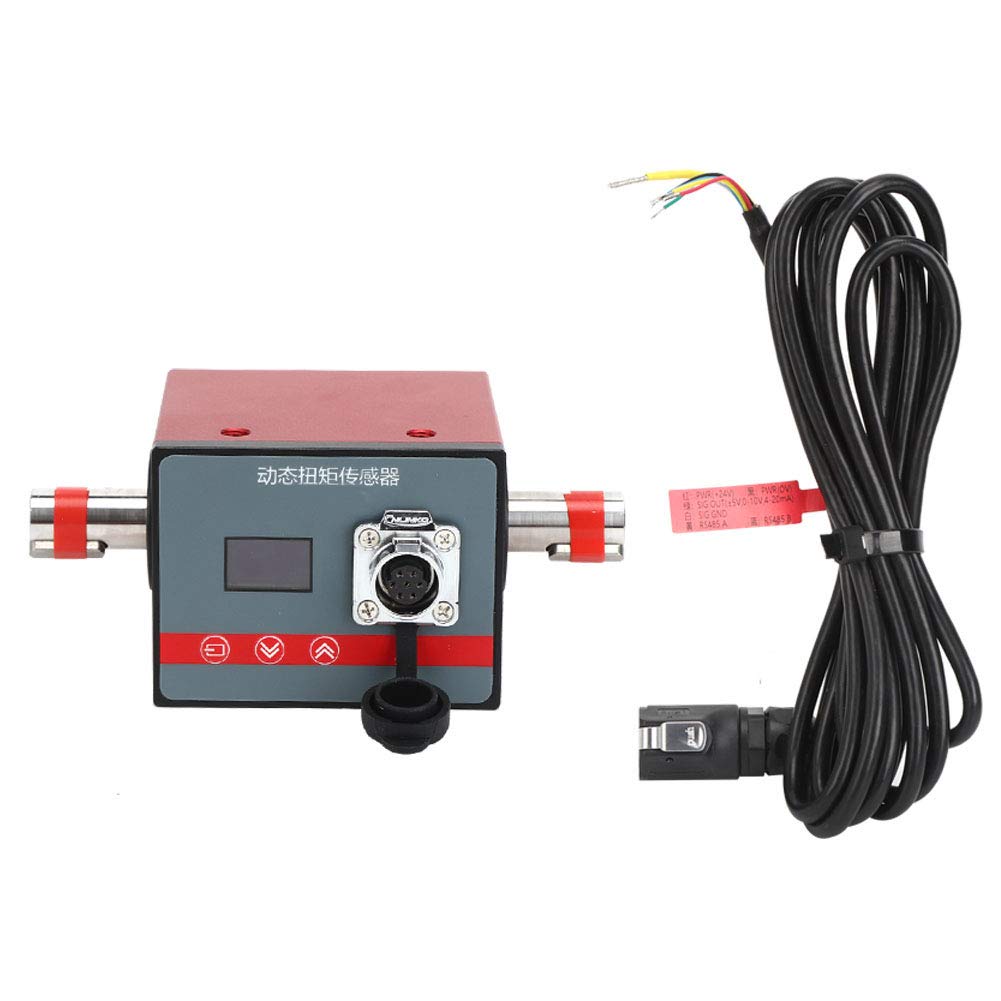

Package List:
1 x Sensor
1 x Line
ProductSiteLaunchDate : 2023-12-23T00:00:00.000Z
Resolution : 0.001 inch
Size : 13-3/4''L x 5-1/2''W x 1-1/4''H
UnspscCode : 41113600
