Specification
Brand : iDili
BulletPoint1 : Compact & lightweight design
BulletPoint2 : Gas and liquid compatible
BulletPoint3 : Brushless DC motor for long lifespan (8000h)
BulletPoint4 : Low noise operation (55dB)
BulletPoint5 : Multi-voltage support (6V/12V/24V)
ItemName : iDili Gas Sampling Pump, VOCs Gas/Liquid Dual-Use Micro Diaphragm Pump, Online Monitor Air Pump
ItemTypeKeyword : industrial-diaphragm-pumps
Manufacturer : iDili
PartNumber : USCNC-2025-0476
ProductDescription : Gas Sampling Pump, VOCs Gas/Liquid Dual-Use Micro Diaphragm Pump, Online Monitor Air Pump

Specifications:
Motor Type: DC Brushless
Operating Voltage: 6V / 12V / 24V
Load Current (12V/24V): 0.5A / 0.3A
Applicable Medium: Gas/Liquid Dual-Use
Free Water Flow: 450ml/min
Max Water Pressure: 0.25MPa
Free Gas Flow: 4L/min
Max Gas Pressure: 0.1MPa
Max Vacuum: -60kPa
Pressure Head: >15m
Suction Height: ≤7m
Noise Level: ≤55dB
Weight: 0.2kg
Lifespan:8000 hours

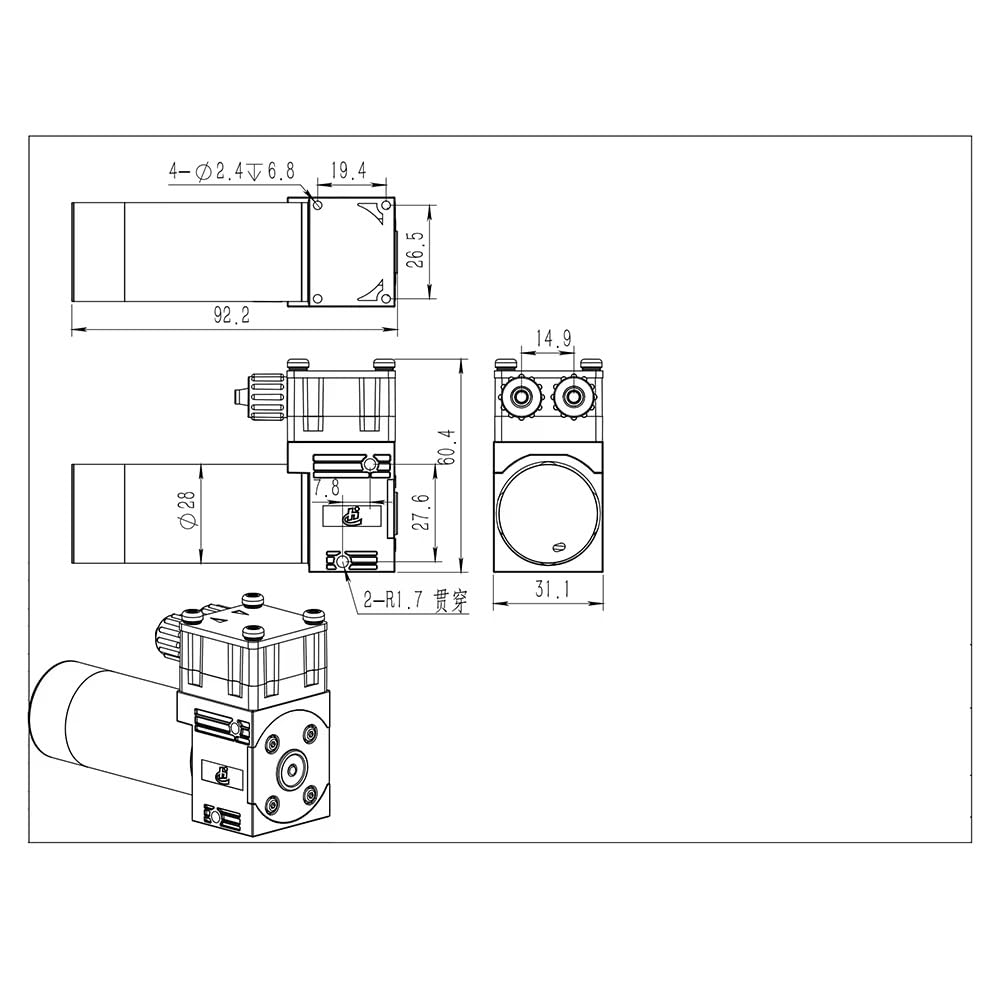

Dimensions: 92.2×31.1×60.4mm
Ambient Temperature: 5–40℃
Fluid Temperature: 10–60℃

Usage Notes:
Filter Requirement: Install a ≥30μm precision filter at the pump inlet.
Voltage Warning: Ensure power supply matches the pump’s rated voltage.

Installation Options:
Bottom Mounting: Use M3 self-tapping screws through 4×φ2.4mm holes (depth: 6.8mm).
Side Mounting: Secure via 2×R1.7mm through holes with M3 screws.
Custom Mounting: Flexible installation using motor brackets or custom fixtures.

Wiring Guide:
Red wire: Positive (+)
Black wire: Negative (-)

Additional Notes:
Product dimensions may vary slightly due to plastic molding tolerances.
Ensure ambient and fluid temperatures stay within specified ranges.

Applications:
Gas sampling systems
VOCs monitoring devices
Online environmental analyzers
Laboratory equipment
