BulletPoint1 : TEST OBJECT: This is an op amp tester that can be used to test common chips for single op amp(Mono), double op amp and quad op amp. The circuit board can determine whether the IC can be used for amplification, and the conversion rate of the chip can be roughly judged. You can spot low speed chips that in the disguise of as high speed chips
BulletPoint2 : OUTPUT MODE: For high speed op amp, can output normally when input high and low frequency square signal, as the corresponding red LED and green LED synchronization, steady on(200KHZ or bright (10HZ))
BulletPoint3 : OUTPUT DISPLAY: For low speed op amp, when input square signal, the output end can not complete the output waveform, as shown by the corresponding red LED can not be lit normally, only one or two are not lit. Only when the low frequency is input can be output normally, and the corresponding red LED at the output end can flash synchronously with the green LED
BulletPoint4 : TEST CURRENT: A test terminal is provided on the board to test the static current of the op amp under plus or minus 5V power supply. Through the static current size, you can also understand some characteristics of the operating amplifier, and distinguish the model
BulletPoint5 : STABLE PCB: Operational amplifier test board adpot stable PCB material, possess excellent maintainability and interchangeability, rest assured to use
Color : Opa2347ua
IncludedComponents : No

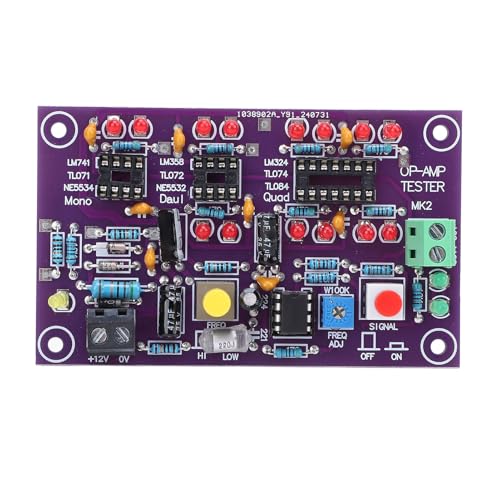

ItemName : Masyrt Operational Amplifier Testing Module Board, OP AMP Tester for Single, Double, Quad with DC12V T2, Ideal for Electronics Testing & Experiments
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemTypeKeyword : differential-amplifiers
Manufacturer : Masyrt
ModelName : Masyrtravtk403gu
ModelNumber : Masyrtravtk403gu
NumberOfItems : 1
PartNumber : Masyrtravtk403gu
ProductDescription : Specification:
Item Type: Operational Amplifier Test Board
Size: Approx. 9.5x5.8cm / 3.74x2.28in
Power Requirement: Voltage: DC12V, Current: 100mA
Application:
For Single OP AMP: LM741, LF356, NE5534, TL071, TL081, 0P07 and other standard single OP AMP packages
For Double OP AMP: LM358, NE5532, TL072, TL082, MC1458, RC4558, 0P275, AD827 and other standard double OP AMP packages
For Quad OP AMP: LM324, TL074, TL084, LF347, AD713

How to Use:
Direct installation and use

packing list:
1 x Test Board

Note:
Testing Instructions: 1. Only test one chip at a time. Use one of the three test sockets.
2. For static current testing, use the DC voltage meter of the digital multimeter. Test the voltage across 10 ohms, 1=V/10 (ma). For example, V=15MV, static current 1=1.5 ma. (At this time, do not press the red switch on the right side of the diagram).
3. The test end can be connected to an oscilloscope or frequency counter. Adjust the potentiometer to change the test frequency.
