Specification
Brand : KNACRO
BulletPoint1 : Module function: 0Hz to 200Hz frequency pulse signal into 0-5V analog voltage signal.

BulletPoint2 : Can be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control occasions.
BulletPoint3 : Input pulse level is 5V / 12V / 24V can be directly input, no need to string resistance. But the input signal frequency, to maintain more than 0.5 seconds.
BulletPoint4 : The output current is 5mA. The input power supply voltage range is DC12-30V.
BulletPoint5 : Potentiometer is used to calibrate the frequency and voltage of the corresponding relationship.
BulletPoint6 :
BulletPoint7 :
BulletPoint8 :
BulletPoint9 :
Color : silver
Color1 : white
Color2 : multi
Color3 : blue
CompatibleDevices1 : Television
CompatibleDevices2 : Headphone
CompatibleDevices3 : Amplifier
ConnectorType : RCA
CurrentRating : 1 amps
ExternallyAssignedProductIdentifier : 8437016626078
ExternallyAssignedProductIdentifier1 : 736364871078
ExternallyAssignedProductIdentifier2 : 0736364871078
FinishType : Metallic
GpsrSafetyAttestation : 1
HardwareInterface : usb
IncludedComponents : Please see description
InputVoltage : 5 volts
InterfaceType : Optical
InterfaceType1 : USB
InterfaceType2 : Optical
InterfaceType3 : Coaxial

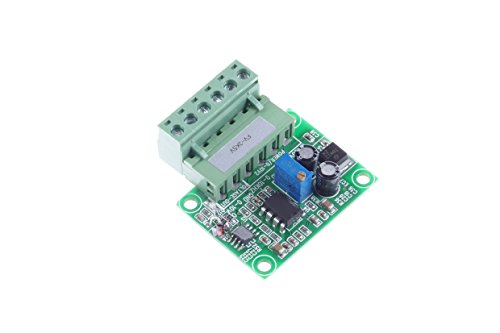

ItemName : Frequency to Voltage Conversion Module 0-200Hz to 0-5V F/V Conversion Module Digital to Analog Converter Module (0-200HZ to 0-5V)
ItemPackageDimensions_Height : 15.875 centimeters
ItemPackageDimensions_Length : 1.016 centimeters
ItemPackageDimensions_Width : 8.128 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : digital-to-analog-converters
Manufacturer : KNACRO
Material : Aluminum Alloy
Material1 : fiber
Material2 : Copper
MaximumSupplyVoltage : 5 volts
MinimumSupplyVoltage : 5 volts
ModelNumber : CAM038EU
MountingType : Plug Mount
NumberOfChannels : 2
NumberOfItems : 1
NumberOfPorts : 1
OutputVoltage : 5 volts
PartNumber : Frequency To Voltage
ProductDescription : 0Hz to 200Hz frequency pulse signal into 0-5V analog voltage signal.
Can be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control occasions.
Input pulse level is 5V / 12V / 24V can be directly input, no need to string resistance. But the input signal frequency, to maintain more than 0.5 seconds.
The output current is 5mA. The input power supply voltage range is DC12-30V.

Instructions for use:
1, multi-turn potentiometer is used to calibrate the frequency and voltage of the corresponding relationship.
2, the input power supply voltage range of DC12-30V.
4, for the use of PLC, support NPN type. Must have ground wire.
5, if used with the encoder, the encoder constant speed required to continue to rotate more than 0.5 seconds.
6, F / V conversion module, the response time of about 0.3-0.5 seconds

Note:
1. Accuracy is 1%, can not be accurate to the decimal point after the two digits, if the use of high precision requirements are not recommended.

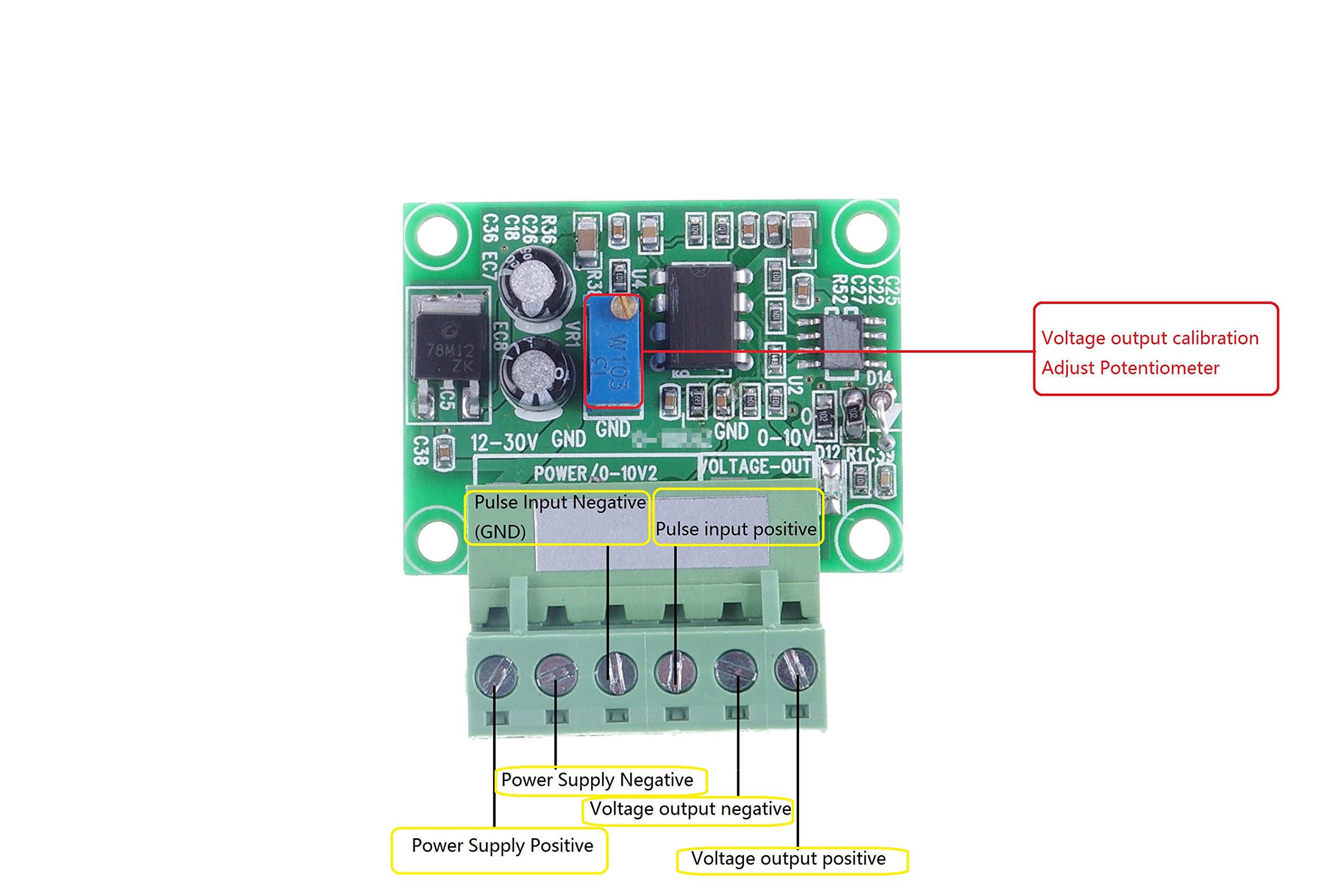

2. You can adjust the blue potentiometer on the board to calibrate (in the factory, we have F / v potentiometer to adjust a certain correspondence, generally do not recommend self adjustment).
3. If the signal input is turbine flow, due to signal matching reasons, to add a 817 optical coupler and a resistor in order to make the flow meter to function properly.

Package Included:
1*Frequency To Voltage Conversion Module
ProductSiteLaunchDate : 2017-04-03T07:00:00.000Z
Size : 0-200HZ TO 0-5V
Style : ARC to 3.5mm Audio Converter
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 39121000
WarrantyDescription : 1 Year
Wattage : 10
