Specification
Brand : Generic
BulletPoint : Connector Type: Panel Connector, Pins: 32P, Insert Type: Female Insert
BulletPoint1 : a.Clamshell structure burn in socket
BulletPoint2 : b.Adopting engineering material for socket structure, Strength is high ,lifetime is long
BulletPoint3 : c.Adopting import BeCu material for socket contact
BulletPoint4 : Spring ,thickening gold-plating surface ,impedance is small elasticity is good
BulletPoint5 : d.For 0.4mm pitch package

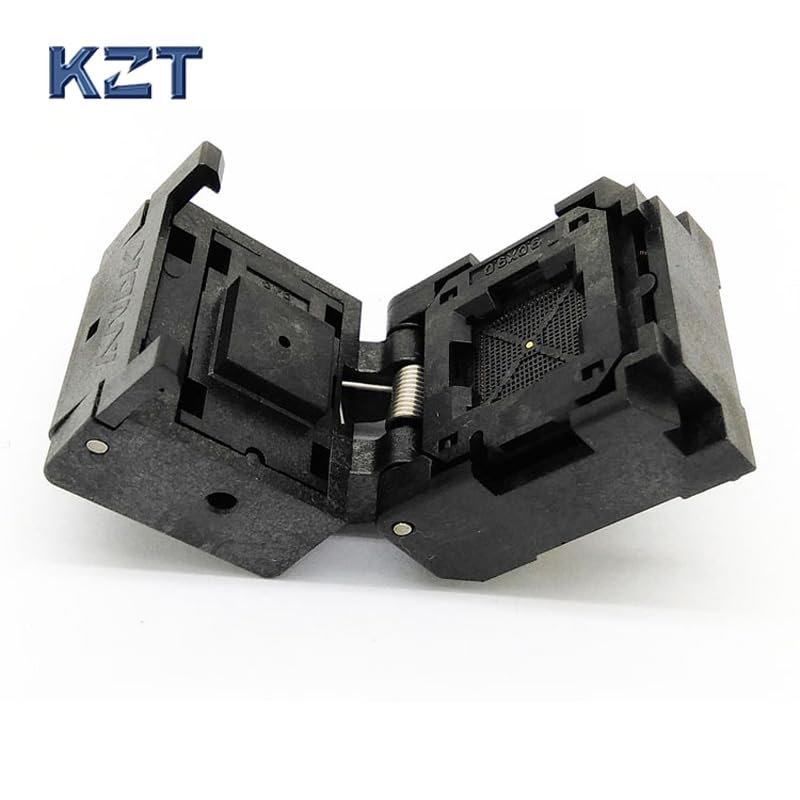

ItemName : Wiring Connecting Terminals - QFN76 MLF76 WLCSP76 Socket Pitch 0.4mm IC549-0764-012-G Burn in Socket Chip Size 9 * 9 Flash Adapter Clamshell Programming Socket
ItemTypeKeyword : dip-sockets
Manufacturer : CHIKIMIKI
NumberOfItems : 1
PartNumber : CNCK8530B899D88AEBA903F6C9CAEACA7216
ProductDescription : QFN76 MLF76 IC Test Socket Pitch 0.4mm IC549-0764-012-G Burn in Socket Clamshell Chip Size 9*9 Flash Adapter Programming Socket
Features:
a.Clamshell structure burn in socket
b.Adopting engineering material for socket structure,
Strength is high ,lifetime is long
c.Adopting import BeCu material for socket contact
Spring ,thickening gold-plating surface ,impedance is small elasticity is good
d.For 0.4mm pitch package
e.Throght hole design
Material & Performance:
socket Body: PEI
Contacts:Beryllium Copper Alloy
Contact Plating:Gold over Nickel
Operation Force:2.0KG min, the more PINs the greater force
Contact Resistance:50m max
Dielectric:700V AC for 1 minute
Insulation Resistance:1,000M 500V DC
Max Current Capacity : 1A
Temperature Rating:-55 ~+175
Life Span 20,000 Times (Mechanical)
Specification and Dimension :
a) Type : QFN76-0.4
b) Pin pitch : 0.4 mm
c) Pin Count : 76
d) Applicable IC Body Dimension : 9*9 mm
ProductSiteLaunchDate : 2024-11-09T02:23:38.470Z
UnspscCode : 39121400
