Specification
Brand : Generic
BulletPoint1 : Package Includes: SSOP48 | * Pinpitch : 0.635 mm | * Pin Count : 48pins | * Applicable IC body width : 7.5mm
BulletPoint2 : a.Clamshell structure burn in socket
BulletPoint3 : b.Adopting engineering material for socket structure,Strength is high ,lifetime is long
BulletPoint4 : c.Adopting import BeCu material for socket contact ,spring ,thickening gold-plating surface ,impedance is small elasticity is good
BulletPoint5 : d.For 0.635mm pitch package

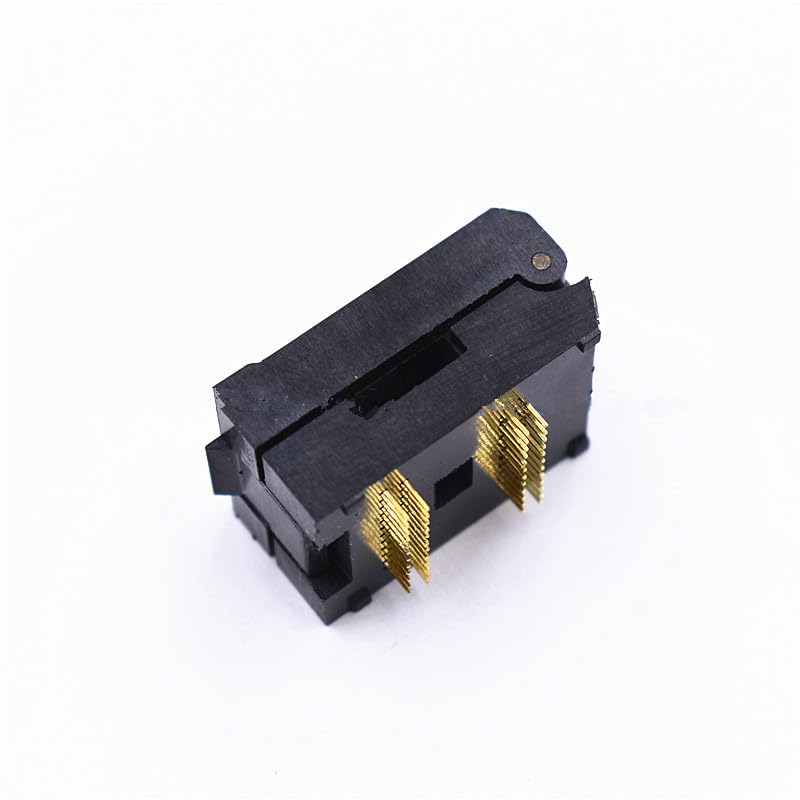

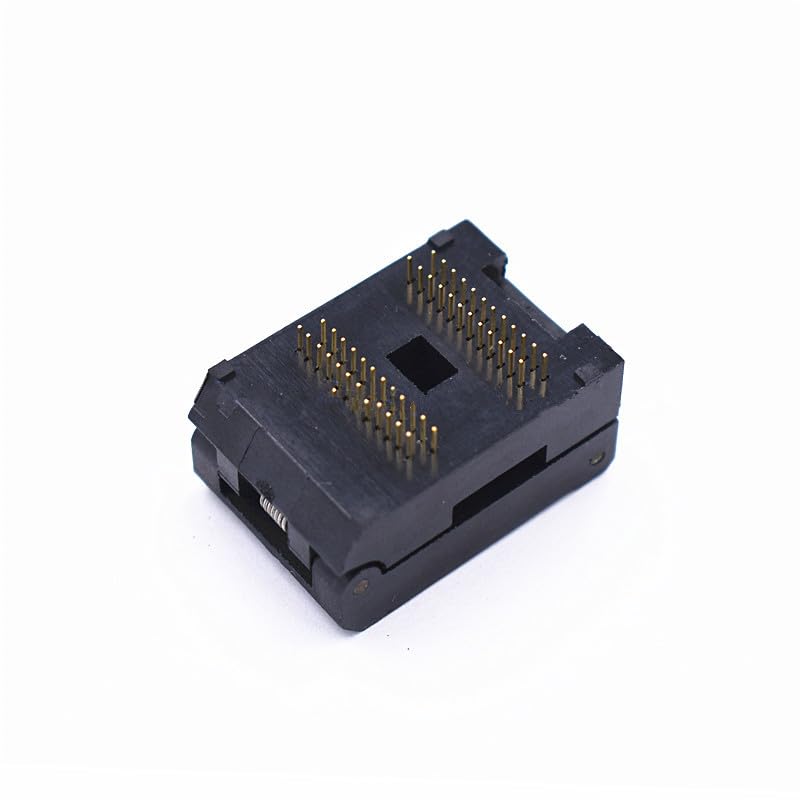

ItemName : Wiring Connecting Terminals - SSOP48 Burn in Socket pitch0.635mm IC Body Size 7.59mm Clamshell Test Adapter SSOP48 IC Test Socket Test Fixture
ItemTypeKeyword : dip-sockets
Manufacturer : CHIKIMIKI
NumberOfItems : 1
PartNumber : CNCK8F1D09A416E854F4B1C54D8EFCEA1273
ProductDescription : SSOP48 burn in socket pitch0.635mm IC body size 7.59mm Clamshell test adapter SSOP48 test socket test fixture
Features:
a.Clamshell structure burn in socket
b.Adopting engineering material for socket structure,Strength is high ,lifetime is long
c.Adopting import BeCu material for socket contact ,spring ,thickening gold-plating surface ,impedance is small elasticity is good
d.For 0.635mm pitch package
HY01476
Material & Performance:
socket Body: PEI
Contacts:Beryllium Copper Alloy
Contact Plating:Gold over Nickel
Operation Force:2.0KG min, the more PINs the greater force
Contact Resistance:50m max
Dielectric:700V AC for 1 minute
Insulation Resistance:1,000M 500V DC
Max Current Capacity : 1A
Temperature Rating:-55 ~+175
Life Span 5,000 Times (Mechanical)
Specification and Dimension :
* Type : Test & burn in Socket
* Package includes: SSOP48
* Pinpitch : 0.635 mm
* Pin Count : 48pins
* Applicable IC body width : 7.5mm
