Specification
Brand : eletechsup
BulletPoint1 : 3A Flip-Flop Latch Self-locking (bistable) DPDT Relay controller
BulletPoint2 : Input Voltage: DC 6-24V(12V version)
BulletPoint3 : Module working current:Standby 1-2ma;Relay is on: 60-71MA
BulletPoint4 : Load current: Maximum 5A(Motor <=3A)
BulletPoint5 : Control method : low pulse trigger
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier1 : 0052805495789
ExternallyAssignedProductIdentifier2 : 052805495789
IncludedComponents : Module

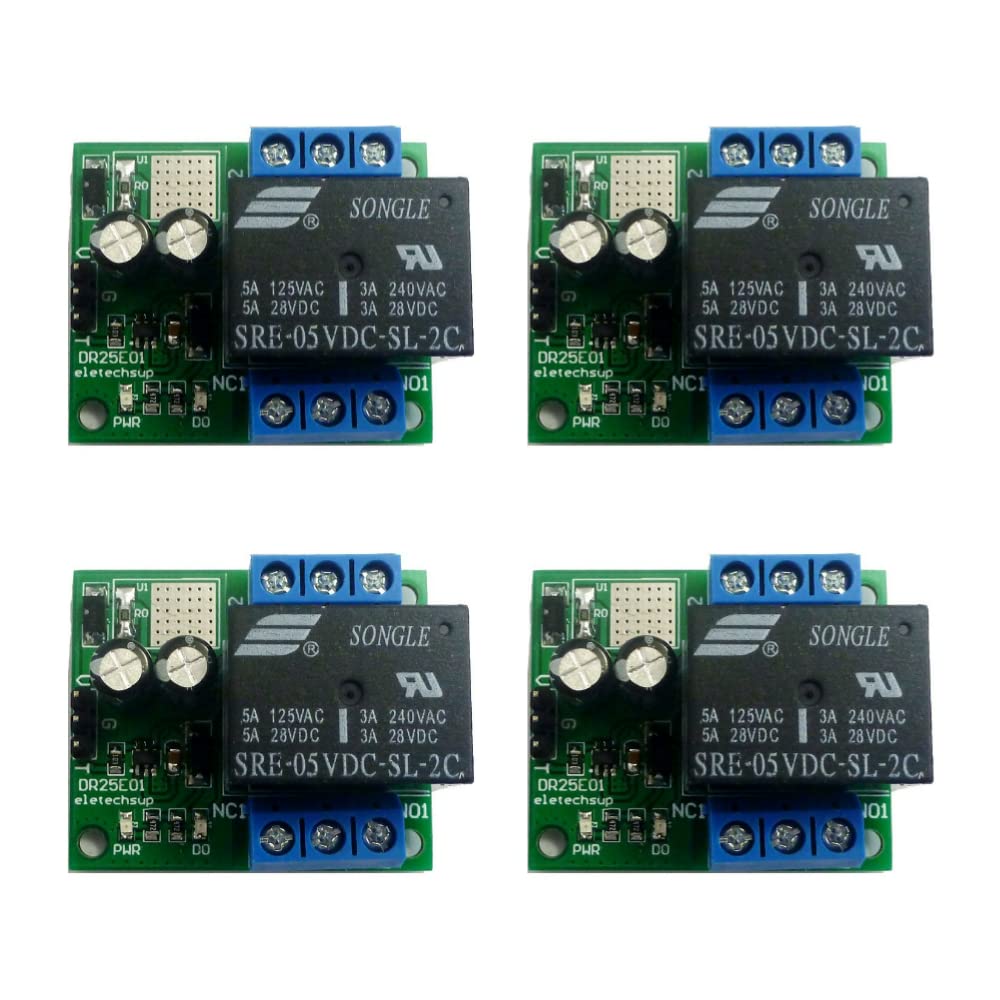

ItemName : DC 5-24V 12V 3-5A Flip-Flop Latch DPDT Relay Module Bistable Self-Locking Double Switch Board for Ardiuno MEGA AVR LED (4)
ItemTypeKeyword : dip-switches
Manufacturer : eletechsup
Material : Copper
MaximumSwitchingVoltage : 24 volts
MeasurementSystem : Metric
NumberOfItems : 4
OperationMode : Motor
PartNumber : DR25E01_12V
ProductDescription :

Package inlcuded:

3A DC 5V-25V Self-locking (bistable) Flip-Flop Latch DPDT Relay controller

Description:

3A Flip-Flop Latch Self-locking (bistable) DPDT Relay controller

1 Load current: Maximum 5A(Motor <=3A)

2 Power indicator AND Working indicator

3 Control method : low pulse trigger

4 Size: 39.5mm X 33.3mm X 23.3mm

5 Weight: 23 g

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

Module interface:

1. V positive power supply (VCC)

2. G negative power supply (GND)

3. T : Low pulse trigger(0.2-2 second low pulse trigger)

DPDT Relay outputs:

1. NO1: normally open relay interface

2. COM1: Common Interface Relays

3. NC1: normally closed relay interface

4. NO2: normally open relay interface

5. COM2: Common Interface Relays

6. NC2: normally closed relay interface

How to use:

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Typical applications:

Automotive electronics

Industrial equipment

AC DC Motor

LED lighting

Smart Home / Home Automation

Emergency lighting

MCU AVR For UNO MEGE2560 development board

Toy car

5 wiring methods:

1 Control two independent loads, the load is activated simultaneously

2 Dual channel simultaneously controls one load (load current multiplication)

3 Control the positive and negative wires (turn off or turn on the positive and negative wires)

4 Polarity switching output (load can be low power motor)

5 Audio 2 L/R to 1 L/R Switcher
