Product Information
Editorial Review

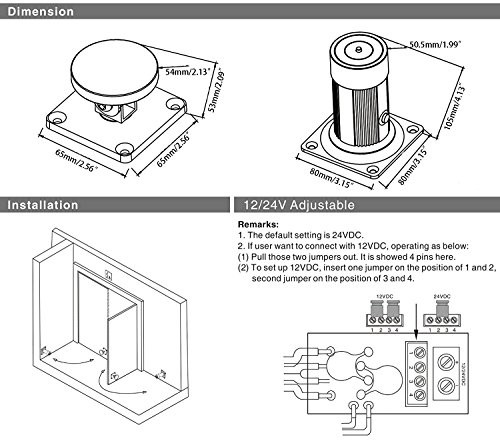

Advantage: Collinear Load Test 50kg / 110Lbs Dual Voltage 12/24 VDC(Adjustable) The Standard Voltage is 24VDC when Finished Wall mounting direction Reliable Fail-Safe mechanism Double-insulated coil MOV Provides Reverse Current Protection Low Power,Environmental Protection Anti-Residual Magnetism Design Professional Design, Dual Insulate Housing Automatically close the smokeproof door when fire happens CE Certificate Specifications: Dimensions: L80xW80xH105(mm) / 3.1"x3.1"x4.1" Holding Force: 50kg / 110Lbs Voltage: 12/24VDC+/- 10%(Adjustable) Current Draw: 12V/140mA 24V/70mA Signal output: NO/NC/COM Suitable for: All kinds of Single & Double Smokeproof Door Surface Temp: less than +20,,f / 68,,? Operating Temp: -10,,f~+55,,f(14,,?-131,,?) Suitable Humidity: 0~90%(relative humidity) Finishes for Shell: High Temperature Paint and Environmental Protection Zinc Finishes for Armature: Zinc Weight: 1.0kg / 2.2lb Remarks: The default setting is DC24V If user want to connect with 12VDC, operating as bellow: Pull those two jumpers out. It is showed 4 pins here. To set up 12VDC, insert one jumper on the position of 1 and 2, second jumper on the position of 3 and 4.
Features
1) Collinear Load Test 50kg / 110Lbs
2) Dual Voltage 12/24 VDC(Adjustable)
3) Wall mounting direction
4) Reliable Fail-Safe mechanism
5) Double-insulated coil
Specification
Binding : Office Product
Brand : UHPPOTE
EAN : 0616010528085
Label : UHPPOTE
Manufacturer : UHPPOTE
ProductGroup : Home Improvement
ProductTypeName : HARDWARE
Publisher : UHPPOTE
Studio : UHPPOTE
Title : UHPPOTE 110Lbs 50kg Holding Force Extended Wall Mount Smokeproof Door Holder With Signal
Advantage: Collinear Load Test 50kg / 110Lbs Dual Voltage 12/24 VDC(Adjustable) The Standard Voltage is 24VDC when Finished Wall mounting direction Reliable Fail-Safe mechanism Double-insulated coil MOV Provides Reverse Current Protection Low Power,Environmental Protection Anti-Residual Magnetism Design Professional Design, Dual Insulate Housing Automatically close the smokeproof door when fire happens CE Certificate Specifications: Dimensions: L80xW80xH105(mm) / 3.1"x3.1"x4.1" Holding Force: 50kg / 110Lbs Voltage: 12/24VDC+/- 10%(Adjustable) Current Draw: 12V/140mA 24V/70mA Signal output: NO/NC/COM Suitable for: All kinds of Single & Double Smokeproof Door Surface Temp: less than +20,,f / 68,,? Operating Temp: -10,,f~+55,,f(14,,?-131,,?) Suitable Humidity: 0~90%(relative humidity) Finishes for Shell: High Temperature Paint and Environmental Protection Zinc Finishes for Armature: Zinc Weight: 1.0kg / 2.2lb Remarks: The default setting is DC24V If user want to connect with 12VDC, operating as bellow: Pull those two jumpers out. It is showed 4 pins here. To set up 12VDC, insert one jumper on the position of 1 and 2, second jumper on the position of 3 and 4.
Features
1) Collinear Load Test 50kg / 110Lbs
2) Dual Voltage 12/24 VDC(Adjustable)
3) Wall mounting direction
4) Reliable Fail-Safe mechanism
5) Double-insulated coil
Specification
Binding : Office Product
Brand : UHPPOTE
EAN : 0616010528085
Label : UHPPOTE
Manufacturer : UHPPOTE
ProductGroup : Home Improvement
ProductTypeName : HARDWARE
Publisher : UHPPOTE
Studio : UHPPOTE
Title : UHPPOTE 110Lbs 50kg Holding Force Extended Wall Mount Smokeproof Door Holder With Signal
