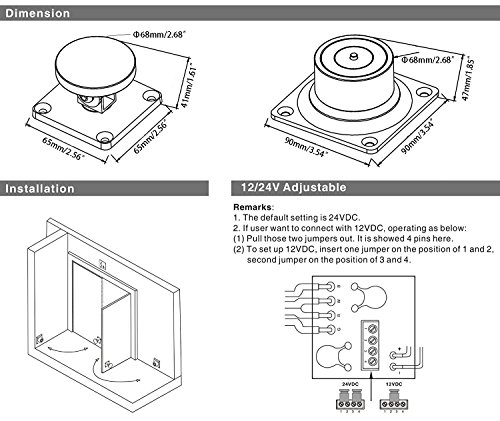

Advantage: Collinear Load 180kg / 350Lbs Dual Voltage 12/24VDC(Adjustable) The Standard Voltage is 24VDC when Finished Wall mounting direction MOV Provides Reverse Current Protection Low Power consumption Anti-Residual Magnetism Design Reliable Fail-Safe Mechanism Professional Design, Dual Insulate Housing Automatically close the smoke proof door when fire happens CE Certificate Specifications: Dimensions: L90xW90xH47(mm) / 3.5"x3.5"x1.9" Holding Force: 180kg / 350Lbs Voltage: 12/24VDC +/- 10% (Adjustable) Current Draw: 12V/140mA, 24V/120mA Suitable for: All kinds of Single & Double Smokeproof Door Surface Temp: less than +20,,f / 68,,? Operating Temp: -10,,f~+55,,f(14,,?-131,,?) Suitable Humidity: 0~90%(relative humidity) Finishes for Shell: High Temperature Paint and Environmental Protection Zinc Finishes for Armature: Zinc Weight: 1.0kg / 2.2lb Remarks: The default setting is 24VDC If user want to connect with 12VDC,operating as bellow: 1 Pull those two jumpers out. It is showed 4 pins here. 2 To set up 12VDC, insert one jumper on the position of 1 and 2, second jumper on the position of 3 and 4.

Features
1) Collinear Load 180kg / 350Lbs
2) Dual Voltage 12/24VDC(Adjustable)
3) Wall mounting direction
4) MOV Provides Reverse Current Protection
5) Anti-Residual Magnetism Design

Specification
Binding : Office Product
Brand : UHPPOTE
EAN : 0616010528078
Label : UHPPOTE
Manufacturer : UHPPOTE
ProductGroup : Home Improvement
ProductTypeName : HARDWARE
Publisher : UHPPOTE
Studio : UHPPOTE
Title : UHPPOTE Electromagnetic 350Lbs Electric Basic Wall Mount Door Holder Safety Emergency
