Product Information
Editorial Review

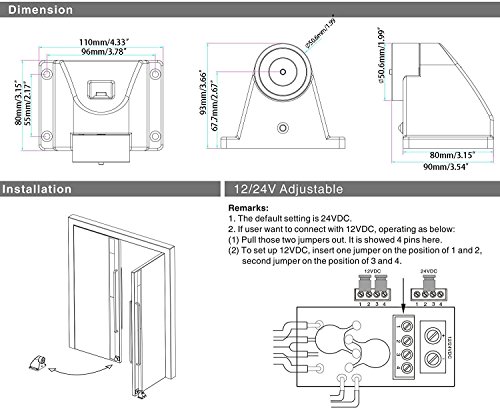

Advantage: Col linear Load Test 50kg / 110pounds Dual Voltage 12/24 VDC (Adjustable) The Standard Voltage is 24VDC when Finished Emergency Release Button/Test Button Wall mounting direction Reliable Fail-Safe mechanism MOV Provides Reverse Current Protection Low Power,Environmental Protection Anti-Residual Magnetism Design Professional Design, Dual Insulate Housing Automatically close the smoke proof door when fire happens CE Certificate Specifications: Dimensions: L110xW80xH93(mm) / L4.33xW3.15xH3.66(in) Holding Force: 50kg / 110Lbs Voltage: 12/24VDC+/- 10%(Adjustable) Current Draw: 12V/140mA 24V/70mA Suitable for: All kinds of Single & Double Smokeproof Door Surface Temp: less than +20,,f / 68,,? Operating Temp: -10,,f~+55,,f(14,,?~131,,?) Suitable Humidity: 0~90%(relative humidity) Finishes for Shell: The Hand Moves and Closes the Door to Release the Button Finishes for Armature: Zinc Weight: 1.1kg / 2.43lb Remarks: The default setting is 24VDC If user want to connect with 12VDC,operating as bellow: 1 Pull those two jumpers out. It is showed 4 pins here 2 To set up 12VDC, insert one jumper on the position of 1 and 2, second jumper on the position of 3 and 4
Features
1) Col linear Load Test 50kg / 110lb
2) Dual Voltage 12/24 VDC (Adjustable)
3) The Standard Voltage is 24VDC when Finished

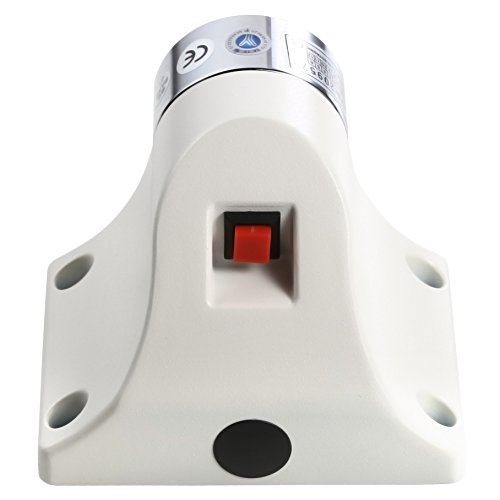

4) Emergency Release Button/Test Button
5) Wall mounting direction
Specification
Binding : Office Product
Brand : UHPPOTE
EAN : 0757450215576
Label : UHPPOTE
Manufacturer : UHPPOTE
Model : UT-YD-609B
ProductGroup : Home Improvement
ProductTypeName : SECURITY_ELECTRONICS
Publisher : UHPPOTE
Studio : UHPPOTE
Title : UHPPOTE European Type 50KG / 110Lbs Force Extended Wall Mount Direction Smokeproof Door Holder
Advantage: Col linear Load Test 50kg / 110pounds Dual Voltage 12/24 VDC (Adjustable) The Standard Voltage is 24VDC when Finished Emergency Release Button/Test Button Wall mounting direction Reliable Fail-Safe mechanism MOV Provides Reverse Current Protection Low Power,Environmental Protection Anti-Residual Magnetism Design Professional Design, Dual Insulate Housing Automatically close the smoke proof door when fire happens CE Certificate Specifications: Dimensions: L110xW80xH93(mm) / L4.33xW3.15xH3.66(in) Holding Force: 50kg / 110Lbs Voltage: 12/24VDC+/- 10%(Adjustable) Current Draw: 12V/140mA 24V/70mA Suitable for: All kinds of Single & Double Smokeproof Door Surface Temp: less than +20,,f / 68,,? Operating Temp: -10,,f~+55,,f(14,,?~131,,?) Suitable Humidity: 0~90%(relative humidity) Finishes for Shell: The Hand Moves and Closes the Door to Release the Button Finishes for Armature: Zinc Weight: 1.1kg / 2.43lb Remarks: The default setting is 24VDC If user want to connect with 12VDC,operating as bellow: 1 Pull those two jumpers out. It is showed 4 pins here 2 To set up 12VDC, insert one jumper on the position of 1 and 2, second jumper on the position of 3 and 4
Features
1) Col linear Load Test 50kg / 110lb
2) Dual Voltage 12/24 VDC (Adjustable)
3) The Standard Voltage is 24VDC when Finished
4) Emergency Release Button/Test Button
5) Wall mounting direction
Specification
Binding : Office Product
Brand : UHPPOTE
EAN : 0757450215576
Label : UHPPOTE
Manufacturer : UHPPOTE
Model : UT-YD-609B
ProductGroup : Home Improvement
ProductTypeName : SECURITY_ELECTRONICS
Publisher : UHPPOTE
Studio : UHPPOTE
Title : UHPPOTE European Type 50KG / 110Lbs Force Extended Wall Mount Direction Smokeproof Door Holder
