Specification
Brand : Audison
BulletPoint1 : Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
BulletPoint2 : Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
BulletPoint3 : Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
BulletPoint4 : Up to 11 output channels (5 amplified, 2 native pre-out outputs, 4 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
BulletPoint5 : Electrical signal analysis for each input channel ensures proper integration and correction
ExteriorFinish : Painted
ExternallyAssignedProductIdentifier : 8018823136754
ExternallyAssignedProductIdentifier1 : 086429424597
ExternallyAssignedProductIdentifier2 : 0086429424597
ExternallyAssignedProductIdentifier3 : 00808709823773
FitType : Vehicle Specific
GpsrSafetyAttestation : 1
IncludedComponents : Add Amp to Factory Radio

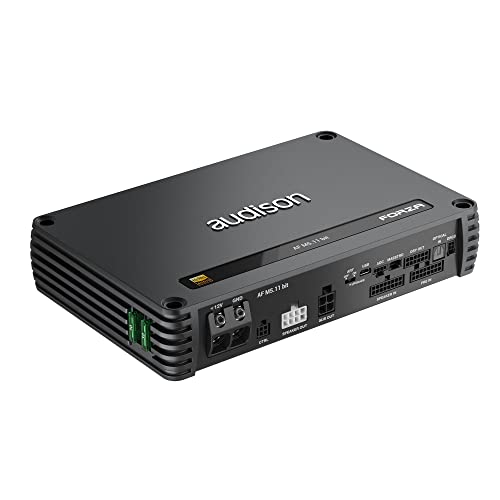

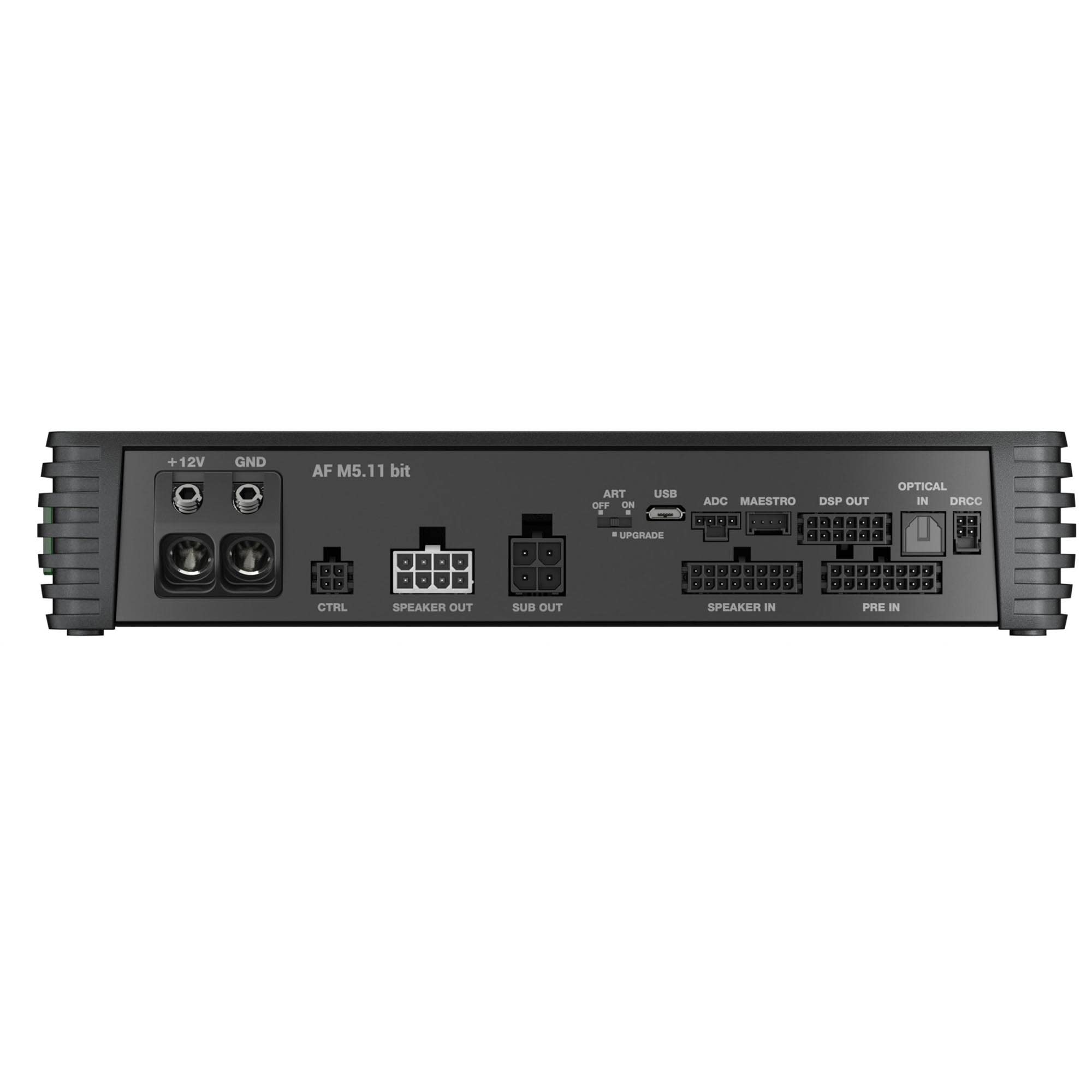

ItemName : Audison AF-M5.11-bit 1200W 5-Channel Amplifier with DSP, 100W x 4 + 400W at 4-Ohms, 150W x 4 + 600W at 2-Ohms
ItemPackageDimensions_Height : 18 inches
ItemPackageDimensions_Length : 14 inches
ItemPackageDimensions_Width : 8 inches
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-stereo-amplifiers
Manufacturer : Audison
Material : Metal
MaximumSupplyVoltage : 15 volts_of_direct_current
MinimumSupplyVoltage : 11 volts_of_direct_current
ModelName : AF-M5.11-bit
ModelNumber : AF M5.11 bit
MountingType : Surface Mount
NumberOfBoxes : 1
NumberOfChannels : 5
NumberOfItems : 1
OutputPower : 150 watts
PackageLevel : unit
PackageTypeName : box" or "retail box
PartNumber : AF-M5.11-bit-FBAV
ProductDescription : AUDIOPHILE SOUND YOU EXPECT FROM AUDISON AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4Ω*, 150WP x 4 + 600W @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 + 400W @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

POWER SUPPLY
Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
Pulse operating voltage: 6.5 ÷ 17.5 VDC
Idling current: 1.5 A
Standby current draw: 1.5 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 53.4 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5V DC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 80.5%

AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.02%
Damping factor @ 100 kHz , 4Ω, 2 VRMS SUB Channel): 140
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 140
Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
Minimum load impedance: 5Ch: 2Ω, 3Ch: 4Ω + 4Ω + 2Ω
Output Continuous Power (RMS) @14
ProductSiteLaunchDate : 2022-11-04T19:56:26.016Z
SpecificationMet : TUV
StreetDate : 2021-05-15T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplyCurrent : 53.4 amps
UnitCount : 1
UnspscCode : 52161547
Voltage : 14.4 volts
WarrantyDescription : Manufacturer’s Warranty
