Specification
Brand : ADnet
BulletPoint1 : 4 different applications with the same device: Use it as: Phone (or fax) over Ethernet / IP / LAN converter, or with an optional 100FX SFP installed into the FX port – over dark fiber or active fiber network, or simply connect LAN1 or LAN2 ports by RJ-45 cable. (Do Not Use Internet connection as an Uplink!)
BulletPoint2 : Web Management Feature: Units will come with pre-configured IP addresses, but you can set a new subnet or fine-tune other settings using the web manager.
BulletPoint3 : Comes as Pair: FXO side connects to CO side – i.e. PABX, FXS side connect to CPE side, i.e. phone sets, or fax.
BulletPoint4 : High transmit efficiency, low transmit delay, supports Ethernet packet out-of-order recovery, and cache to anti-network delay.
BulletPoint5 : Adjustable frame length to balance bandwidth and transmission delay. Support power failure or automatic network recovery.
Color : Black
CompatibleDevices : [Inferred from product description: phones, fax machines, devices with Ethernet, IP, LAN, or fiber optic network interfaces]
CompatibleDevices1 : Laptop
CompatibleDevices2 : Television
CompatibleDevices3 : Monitor
CompatibleDevices4 : PC
CompatibleDevices5 : Projector
ConnectorGender : Male-to-Male
ConnectorType : RJ45
ConnectorType1 : VGA
ConnectorType2 : USB Type C
CurrentRating : 1 amps
CustomerPackageType : Standard Packaging
DataTransferRate : 2.7 gigabits_per_second
ExternallyAssignedProductIdentifier1 : 847626000447
ExternallyAssignedProductIdentifier2 : 0847626000447
ExternallyAssignedProductIdentifier3 : 00847626000447
FinishType : Mirror
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor
InputVoltage : 75 volts

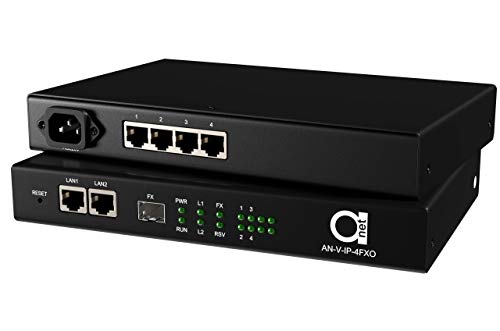

ItemName : 4 x POTS Telephone Over Ethernet | LAN | IP Extender - Converter - FXO and FXS Side, 4 in 1 Device - Phone to Ethernet | Phone to Fiber | Phone Over RJ-45 Twisted | Over Active Fiber Optic Connection
ItemPackageDimensions_Height : 29.21 centimeters
ItemPackageDimensions_Length : 9.0932 centimeters
ItemPackageDimensions_Width : 22.8092 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-dvi-hdmi-cable-adapters
Manufacturer : AD-net Technology CO., LTD
Material : fiber
ModelNumber : ADnet-[INFERRED]" or "AD-net-[INFERRED]
NumberOfItems : 1
NumberOfPorts : 4
PartNumber : JDA132
PowerPlugType : no_plug
ProductDescription : 4 different applications with the same device!

4 port (FXS & FXO) POTS Telephone line over LAN (Ethernet & IP) converter can work in 4 different network applications.

First, you can use it as 4 FXS/FXO over Ethernet device – it will work over a simple network hub or router within the same network subnet. Units will come with pre-configured IP addresses so that you can just simply plug in your phones (and even fax) on one side, and connect to the CO side – PABX, on another side, and it will work right out of the box.

Need to change IP addresses? You can do so via the web manager. Or another application is simply connecting uplink ports LAN1 or LAN2 via Ethernet cable directly - in this case, the device will work as voice ports over the same RJ-45 cable, just keep in mind a maximum distance of 100m.

Then another application you can think of is to use FX uplink port. In this case, just use a 155M (Fast Ethernet) SFP module transceiver (does not come in this set) and you can connect the uplink port now to any fiber optic Ethernet switch. In this case, check that fiber transceiver parameters match exactly.

Even if you have a simple fiber optic cable run, and want to send the FXS/FXO POTS voice traffic over it – then as well – just install 2 matching SFP 155M (100FX) transceivers into the FX ports, and simply connect to fiber at both sides.

Specifications

FXS & FXO Phone Interface Ring voltage: 75V
Ring frequency: 25HZ
Two-line Impedance: 600 Ohm (pick up)
Return loss:40 dB
Ring detect voltage: 35V
Ring detection frequency:17HZ-60HZ
Ethernet Interface (10/100M) Datarate: 10/100Mbps, half/full dpx
Compatible with IEEE 802.3 Connector: RJ45
(SFP) Interface datarate:155Mbps
Power supply: AC90V ~ 265V
Power consumption: ≤7W
Working temperature:-10°C ~ 60°C
Humidity:5%~95 %
Dimensions: (216 L) X 140 (W) X 31 (H) mm
ProductSiteLaunchDate : 2020-04-29T05:42:06.809Z
SpecificUsesForProduct : Telephone
SpecificUsesForProduct1 : Projector
SpecificUsesForProduct2 : TV
SpecificUsesForProduct3 : Monitor
Style : to Gigabit Ethernet+USB-C
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 43200000
WarrantyDescription : 12 Months
WarrantyType : Limited
